LY161-TKMFS3 (1996)
Toyota Dyna 150/Toyoace G15
(9610- )3L,5L..LY10#,11#,12#,13#,15#,16#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-54260 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-54030 |
3L,5L,3YP..LY12#,13#,15#,16# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-54030 |
3L,5L,3YP..LY12#,13#,15#,16# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17805-54102 |
3L,5L,3YP..LY12#,13#,15#,16# |
1 | ||
| 17805F - RESONATOR SUB-ASSY, INTAKE AIR | ||||
| 17805-54260 |
3L,5L..LY10#,11#,12#,13#,15#,16# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-54530 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# NO.1 |
1 | ||
| 96111-10830 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# NO.1 |
1 | ||
| 96111-10830 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# NO.2 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# NO.2 |
1 | ||
| 96111-10690 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# NO.1 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# NO.2 |
1 | ||
| 96111-10690 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# NO.1 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17805-54300 |
3L,5L..LY10#,11#,12#,13#,15#,16# |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-25090 |
LY10#,11#,12#,13#,15#,16#..DSL |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53709-25030 |
LY10#,11#,12#,13#,15#,16# |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90467-0707222 | ||||
| 91621-60820 | ||||
| 91632-60828 | ||||
| 91651-60820 | ||||

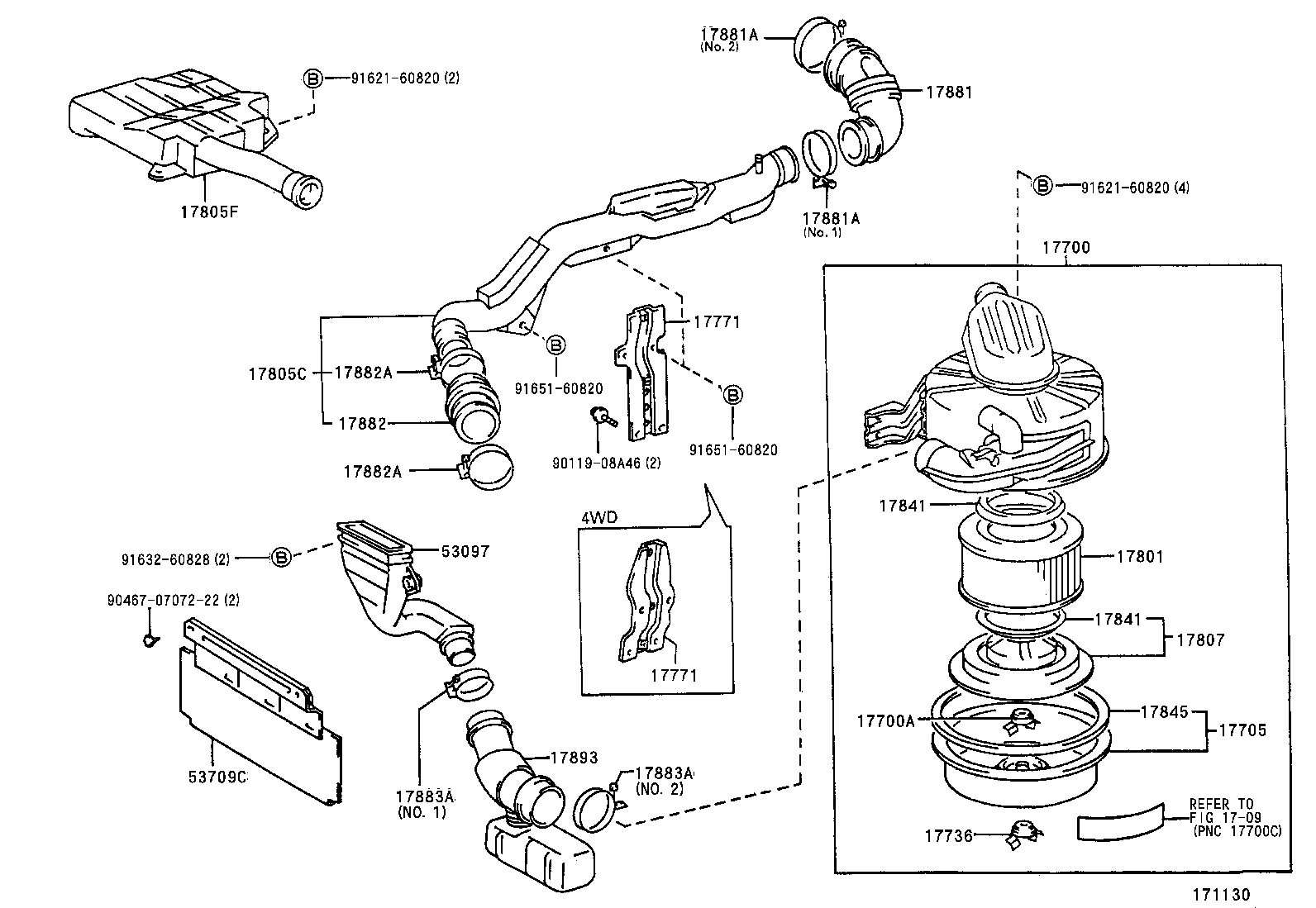

| Linked diagrams | ||||
| 1709 | ||||
