LY161-TKMFS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )LY16#..ST..15T,1T ; (9610- )LY15#,16#..T3,TW2..125,1T

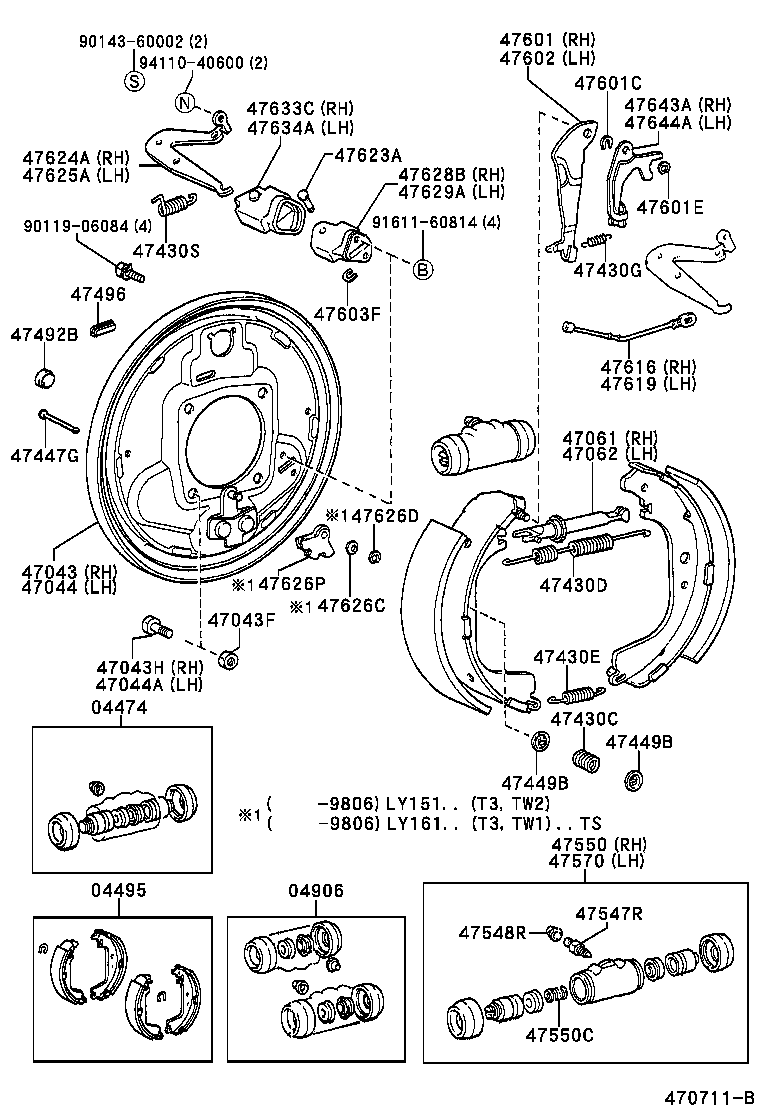

Click highlighted areas on diagram

diagram 04474 04495 04906 47043 47043F 47043H 47044 47044A 47061 47062 47430C 47430D 47430E 47430G 47430S 47447G 47449B 47449B 47492B 47496 47547R 47548R 47550 47550C 47570 47601 47601C 47601E 47602 47603F 47616 47619 47623A 47624A 47625A 47626C 47626D 47626P 47628B 47629A 47633C 47634A 47643A 47644A 9011906084 9014360002 9161160814 9411040600
Part # Description Qty Price
04474 - CYLINDER KIT, REAR WHEEL
04474-35090

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 2
04906 - CUP KIT, REAR WHEEL CYLINDER
04906-35120

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 1
47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043-25140

LY16#..TW2;LY16#..ST..15T

 1
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90179-12119

LY16#..TW2;LY16#..ST..15T

 8
47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
90101-12175

LY16#..TW2;LY16#..ST..15T

 4
47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-25110

LY16#..TW2;LY16#..ST..15T

 1
47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
90101-12175

LY16#..TW2;LY16#..ST..15T

 4
47061 - STRUT SET, PARKING BRAKE SHOE, RH
47061-60011

LY11#..IV5;LY16#..ST..(15T,1T);LY15#,16#..(T3,TW2)..(125,1T)

 1
47061-60011

LY161..15T,1T;LY151,161..(T3,TW2)..(125,1T)

 1
47062 - STRUT SET, PARKING BRAKE SHOE, LH
47062-60011

LY11#..IV5;LY16#..ST..(15T,1T);LY15#,16#..(T3,TW2)..(125,1T)

 1
47062-60011

LY161..15T,1T;LY151,161..(T3,TW2)..(125,1T)

 1
47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN)
90501-20012

LY16#..TW2;LY16#..ST..15T;YY211..MTM..WT;LY12#,13#,20#,21#,YY121,131,201..WT

 4
47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-26011

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

右側

 1
90506-26014

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

左側

 1
47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
90506-18031

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 2
47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
90506-12031

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 2
47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)
90506-20033

LY16#..TW2;LY16#..ST..15T

 4
47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47447-60010

LY16#..TW2;LY16#..ST..15T

 4
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 8
47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449-30020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 8
47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE)
47492-28010

LY111..IV5;LY161..15T,1T;LY211,YY211..T2..ST;LY211,YY211..T3,T4,TW2;LY151,161..(T3,TW2)..(125,1T);LY121,131,201,YY121,131,201..ST

 2
47492-28010

LY211,YY211..T3,T4;LY121,131,YY121,131..ST;LY211,YY211..(T2,TW2)..ST;LY151,161..(T3,TW2)..(125,1T);LY161,201,YY201..(T2,T3,TW1)..ST..(15T,1T)

 2
47496 - PLUG, HOLE(FOR REAR BRAKE)
47491-20011

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 2
47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47547-60020

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 2
47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
31478-30010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550-26110

LY16#..ST..(15T,1T);LY15#,16#..(T3,TW2)..(125,1T)

 1
47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
90029-60009

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 2
47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47550-26110

LY16#..ST..(15T,1T);LY15#,16#..(T3,TW2)..(125,1T)

 1
47601C - WASHER, C(FOR REAR BRAKE)
90213-07010

YY211..ATM;LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101

厚さ=1.6

 2
47601E - RING, E(FOR REAR BRAKE)
96160-00500

LY11#..IV5;LY16#..ST..(15T,1T);LY15#,16#..(T3,TW2)..(125,1T)

 2
96160-00500

LY161..15T,1T;LY151,161..(T3,TW2)..(125,1T)

 2
47603F - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK)
90213-06013

LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..ST

 2
47616 - WIRE, PARKING BRAKE, RH
47616-35030

LY161..15T;LY161..TW2

 1
47616-35030

LY16#..ST..(15T,1T);LY15#,16#..(T3,TW2)..(125,1T)..(CBU,IV3)

 1
47619 - WIRE, PARKING BRAKE, LH
47616-35030

LY161..15T;LY161..TW2

 1
47616-35030

LY16#..ST..(15T,1T);LY15#,16#..(T3,TW2)..(125,1T)..(CBU,IV3)

 1
47623A - PIN(FOR PARKING BRAKE BELL CRANK)
90249-08068

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 2
47624A - CRANK, PARKING BRAKE BELL, RH
47624-60010

LY16#..TW2;LY16#..ST..15T

 1
47625A - CRANK, PARKING BRAKE BELL, LH
47625-60010

LY16#..TW2;LY16#..ST..15T

 1
47628B - BRACKET, REAR BRAKE BELLCRANK, RH
47628-35020

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 1
47629A - BRACKET, REAR BRAKE BELLCRANK, LH
47628-35020

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 1
47633C - BOOT, REAR BRAKE BELLCRANK, RH
47633-35020

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 1
47634A - BOOT, REAR BRAKE BELLCRANK, LH
47633-35020

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 1
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-60010

LY16#..ST..(15T,1T);LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW2)..125..(CBU,IV3)

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-60010

LY162..LPG;LY161..15T,1T;LY162..T2..ST..15T;LY162..T3..125..IV3;LY15#,161..(T3,TW2)..(125,1T);LY162..(T3,TW1,TW2)..(CBU,IV5)

 1
Common parts
90119-06084
90143-60002
91611-60814
94110-40600
