LY161-TKMFS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )LY15#,16#..MTM

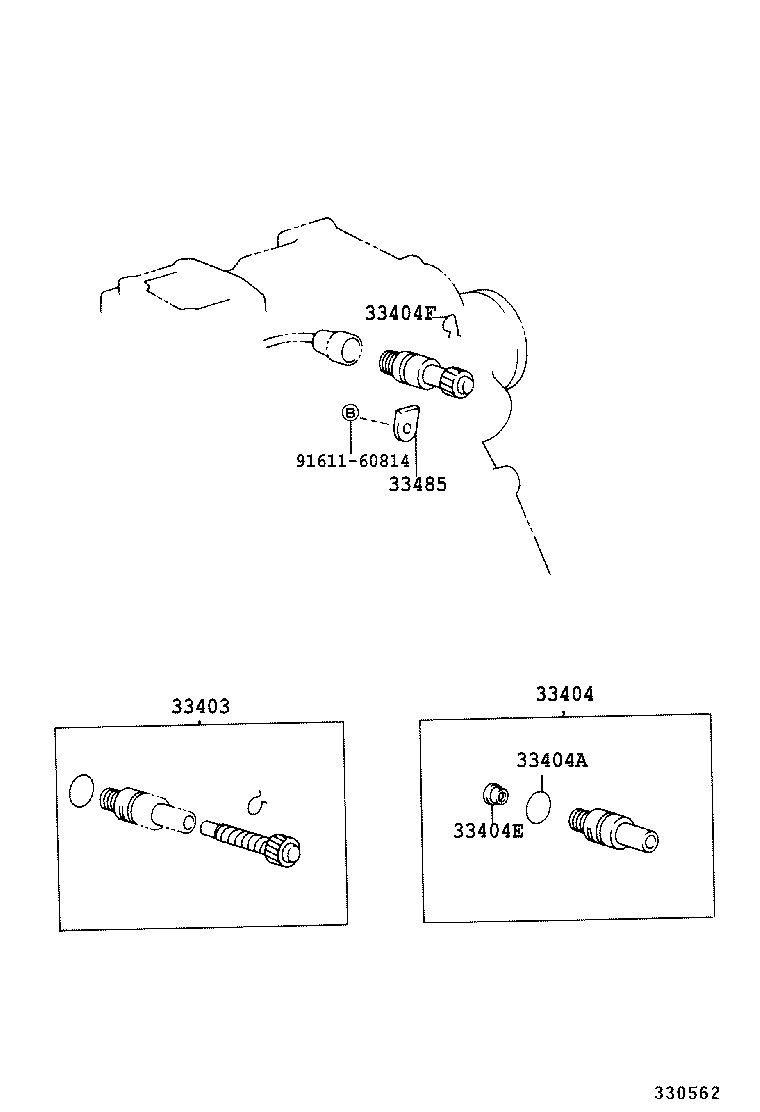

Click highlighted areas on diagram

R351F

diagram 33403 33404 33404A 33404E 33404F 33485 9161160814
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33482-29186

LY161;LY151..T3,TW2

歯数=20,ﾏｰｸ 20:6

 1
33482-29186

LY16#..MTM..ST..(15T,1T)..DSL;LY15#,16#..(T3,TW2)..MTM..(125,1T)

歯数=20,ﾏｰｸ 20:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-35010

LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..MTM..ST

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

LY201,YY201..TS..ST;LY10#,11#,15#,16#,YY101..MTM..ST

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

LY162..MTM..ST;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201,211..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

LY162..MTM..ST;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201,211..MTM

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

LY162..MTM..ST;LY10#,11#,12#,13#,15#,161,20#,21#,YY101,121,131,201,211..MTM

 1
Common parts
91611-60814
