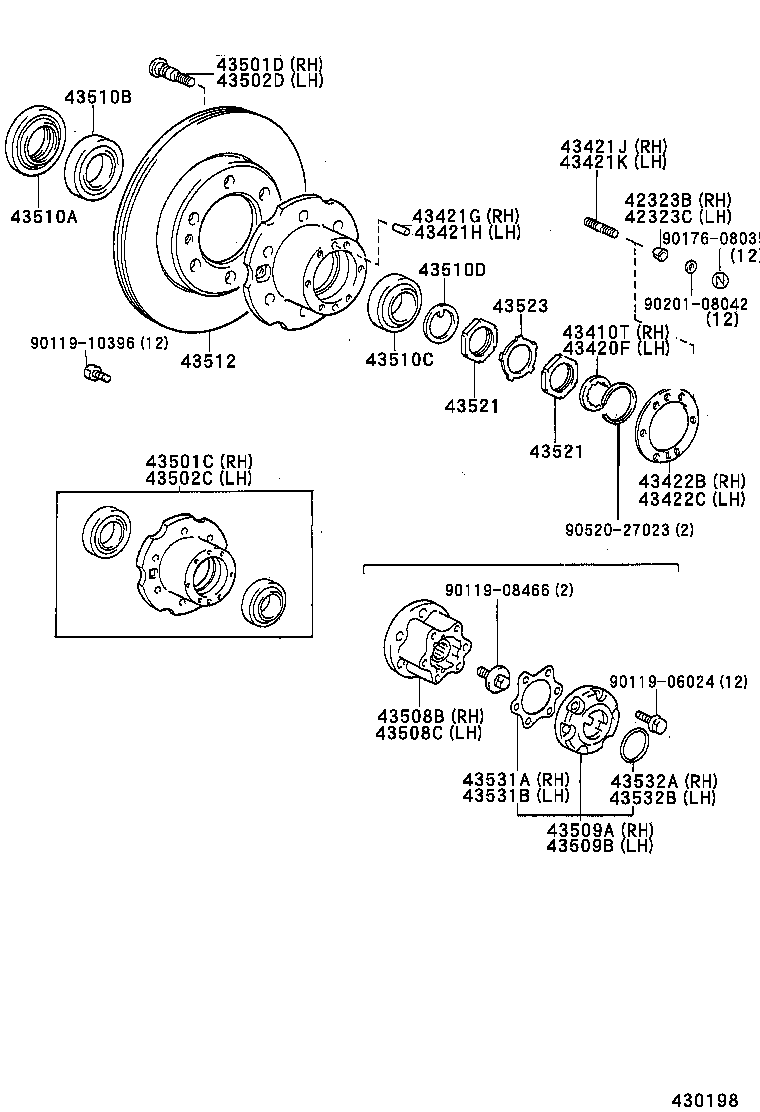

LY161-TGMFS3 (1996)
Toyota Dyna 150/Toyoace G15
(9610- )LY15#,16#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42323B - WASHER, CONE (FOR FRONT AXLE SHAFT RH) | ||||
| 42323-60010 |
LY15#,16# |
6 | ||
| 42323C - WASHER, CONE (FOR FRONT AXLE SHAFT LH) | ||||
| 42323-60010 |
LY15#,16# |
6 | ||
| 43410T - SPACER (FOR FRONT DRIVE SHAFT RH) | ||||
| 90560-27005 |
LY15#,16# 厚さ=2.0 |
1 | ||
| 43420F - SPACER (FOR FRONT DRIVE SHAFT LH) | ||||
| 90560-27005 |
LY15#,16# 厚さ=2.0 |
1 | ||
| 43421G - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH) | ||||
| 90250-07057 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 43421H - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH) | ||||
| 90250-07057 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 43421J - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH) | ||||
| 90116-08325 |
LY15#,16# |
6 | ||
| 43421K - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH) | ||||
| 90116-08325 |
LY15#,16# |
6 | ||
| 43422B - GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH | ||||
| 43422-60010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 43422C - GASKET, FRONT AXLE OUTER SHAFT FLANGE, LH | ||||
| 43422-60010 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43511-39015 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
LY12#,13#,15#,16#,YY121,131 |
6 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43511-39015 |
LY12#,13#,15#,16#,YY121,131 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
LY12#,13#,15#,16#,YY121,131 |
6 | ||
| 43509A - COVER SUB-ASSY, FREE WHEEL HUB, RH | ||||
| 43509-28010 |
LY15#,16# |
1 | ||
| 43509B - COVER SUB-ASSY, FREE WHEEL HUB, LH | ||||
| 43509-28010 |
LY15#,16# |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-66001 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90080-36064 |
LY12#,13#,15#,16#,YY121,131 TIMKEN |
2 | ||
| 90368-49084 |
LY12#,13#,15#,16#,YY121,131 KOYO |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90080-36067 |
LY12#,13#,15#,16#,YY121,131 TIMKEN |
2 | ||
| 90368-45087 |
LY12#,13#,15#,16#,YY121,131 KOYO |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-42030 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-26081 |
LY121,131,151,161,YY121,131 |
2 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LY12#,13#,15#,16#,YY121,131 |
4 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 43531A - GASKET, FREE WHEEL HUB, RH | ||||
| 43531-60010 |
LY15#,16# |
1 | ||
| 43531B - GASKET, FREE WHEEL HUB, LH | ||||
| 43531-60010 |
LY15#,16# |
1 | ||
| 43532A - RING, FREE WHEEL HUB, RH | ||||
| 43532-60010 |
LY15#,16# |
1 | ||
| 43532B - RING, FREE WHEEL HUB, LH | ||||
| 43532-60010 |
LY15#,16# |
1 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 90119-08466 | ||||
| 90119-10396 | ||||
| 90176-08035 | ||||
| 90201-08042 | ||||
| 90520-27023 | ||||
