LY161-TGMFS3 (1996)
Toyota Dyna 150/Toyoace G15

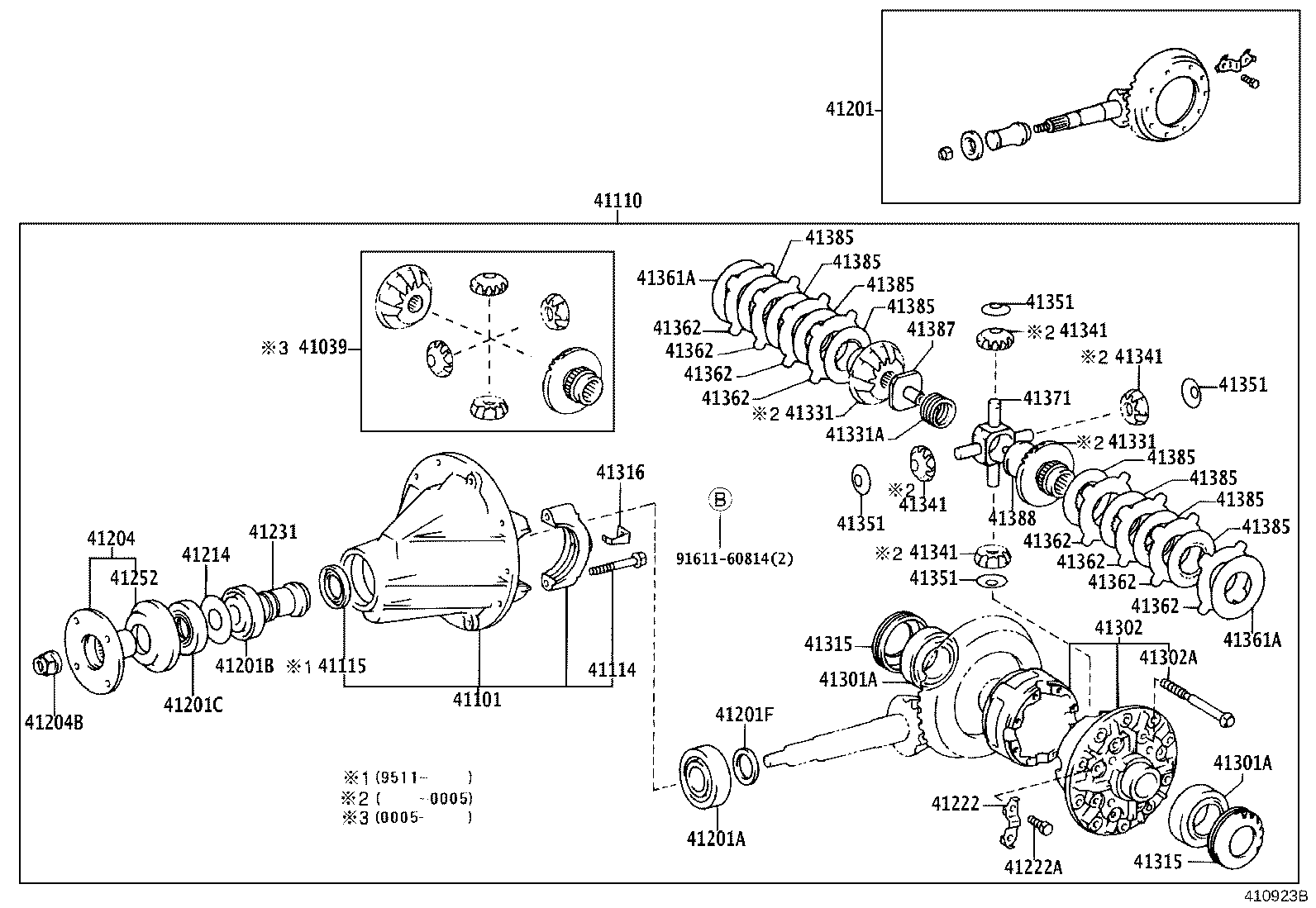

ILLUST NO. 1 OF 2(9610- )
ﾘﾐﾃﾂﾄﾞ ｽﾘﾂﾌﾟ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-60100 |
LY131,161,211..T2..ST..15T |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-25270 |
LY16#..T2..ST..15T *FGR=41:10=4.100 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69255 |
LY16#..T2..ST..15T *FGR=41:10=4.100 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-40088 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,20#,21#,YY121,131,201,211..ST |
1 | ||
| 90366-40059 |
LY161..TW2;LY161,201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30038 |
LY161..TW2;LY161,201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 90366-30071 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,20#,21#,YY121,131,201,211..ST |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38047 |
LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,20#,21#,YY121,131,201,211..(T2,TW2)..WT |
1 | ||
| 90311-38066 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,20#,21#,YY121,131,201,211..ST |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90201-35502 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.85 |
1 | ||
| 90201-35503 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.88 |
1 | ||
| 90201-35500 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.79 |
1 | ||
| 90201-35499 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.76 |
1 | ||
| 90201-35504 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.91 |
1 | ||
| 90201-35498 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.73 |
1 | ||
| 90201-35505 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.94 |
1 | ||
| 90201-35507 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.00 |
1 | ||
| 90201-35506 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.97 |
1 | ||
| 90201-35497 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.70 |
1 | ||
| 90201-35508 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.03 |
1 | ||
| 90201-35509 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.06 |
1 | ||
| 90201-35510 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.09 |
1 | ||
| 90201-35501 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=1.82 |
1 | ||
| 90201-35512 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.15 |
1 | ||
| 90201-35515 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35513 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.18 |
1 | ||
| 90201-35518 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35516 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35514 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.21 |
1 | ||
| 90564-40011 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.20 |
1 | ||
| 90201-35517 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90564-40006 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.075 |
1 | ||
| 90564-40004 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.05 |
1 | ||
| 90201-35511 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT 外径=47,厚さ=2.12 |
1 | ||
| 90564-40013 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.25 |
1 | ||
| 90564-40016 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.325 |
1 | ||
| 90564-40007 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.10 |
1 | ||
| 90564-40019 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.40 |
1 | ||
| 90564-40017 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.35 |
1 | ||
| 90564-40023 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.50 |
1 | ||
| 90564-40025 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.55 |
1 | ||
| 90564-40012 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.225 |
1 | ||
| 90564-40021 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.45 |
1 | ||
| 90564-40010 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.175 |
1 | ||
| 90564-40022 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.475 |
1 | ||
| 90564-40014 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.275 |
1 | ||
| 90564-40020 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.425 |
1 | ||
| 90564-40008 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.125 |
1 | ||
| 90564-40018 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.375 |
1 | ||
| 90564-40024 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.525 |
1 | ||
| 90564-40015 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.30 |
1 | ||
| 90564-40009 |
LY16#..TW2;LY16#..ST..15T;LY21#,YY211..T2..ST;LY21#,YY211..T3,T4,TW2;LY12#,13#,20#,YY121,131,201..ST 厚さ=1.15 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22011 |
LY161..TW2;LY161,201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 90179-22016 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,20#,21#,YY121,131,201,211..ST |
1 | ||
| 90179-20018 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..T1,T2,T3,TW1,TW2 |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35020 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT |
10 | ||
| 41226-35010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
12 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-60030 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50024 |
LY111..T3..TS;LY161..(T3,TW1)..ATM;LY161,201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST;LY101,111,151,161,YY101..(T2,TW2)..125 ｱﾘ(L.S.D) |
2 | ||
| 90366-50054 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,20#,21#,YY121,131,201,211..ST |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-50024 |
LY111..T3..TS;LY161..(T3,TW1)..ATM;LY161,201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST;LY101,111,151,161,YY101..(T2,TW2)..125 ｱﾘ(L.S.D) |
2 | ||
| 90366-50054 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,20#,21#,YY121,131,201,211..ST |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-60070 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
LY10#,11#,15#,YY101;LY201,YY201..T1,T2,TW2;LY16#..(T2,T3,TW1)..TS;LY12#,13#,162,202,21#,YY121,131,211..(T2,TW2)..WT |
2 | ||
| 41316-30010 |
LY161..TW2;LY161,201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 41317-30010 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,20#,21#,YY121,131,201,211..ST ﾀﾞﾌﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41316-30010 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,20#,21#,YY121,131,201,211..ST ｼﾝｸﾞﾙ ﾀｲﾌﾟ |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-25010 |
LY16#..TW2;LY16#,201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
2 | ||
| Common parts | ||||
| 91611-60814 | ||||
