LY161-TGMFS3 (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )3L,5L..LY15#,16#

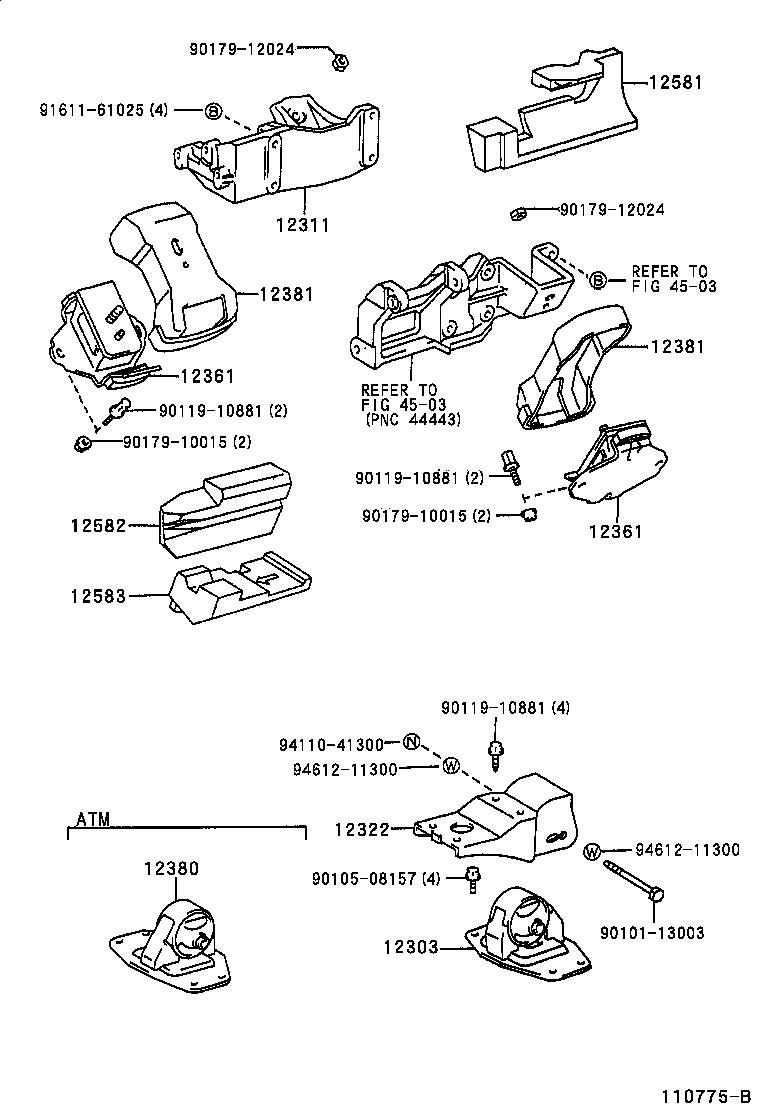

Click highlighted areas on diagram

diagram 12303 12311 12322 12361 12361 12380 12381 12381 12581 12582 12583 4503 4503 9010113003 9010508157 9011910881 9011910881 9011910881 9017910015 9017910015 9017912024 9017912024 9161161025 9411041300 9461211300 9461211300
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-54041

3L,5L,3YP..LY15#,16#..MTM

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54170

3L..LY121,131,151,161

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54080

3L,5L,3YP..LY15#,16#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54171

3L,5L..LY15#,16#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54171

3L,5L..LY15#,16#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54050

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-54010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
12583 - INSULATOR, CYLINDER BLOCK, NO.3
12583-54030

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
Common parts
90101-13003
90105-08157
90119-10881
90179-10015
90179-12024
91611-61025
94110-41300
94612-11300
Linked diagrams
4503
