LY161-TGMFS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )LY15#,16#

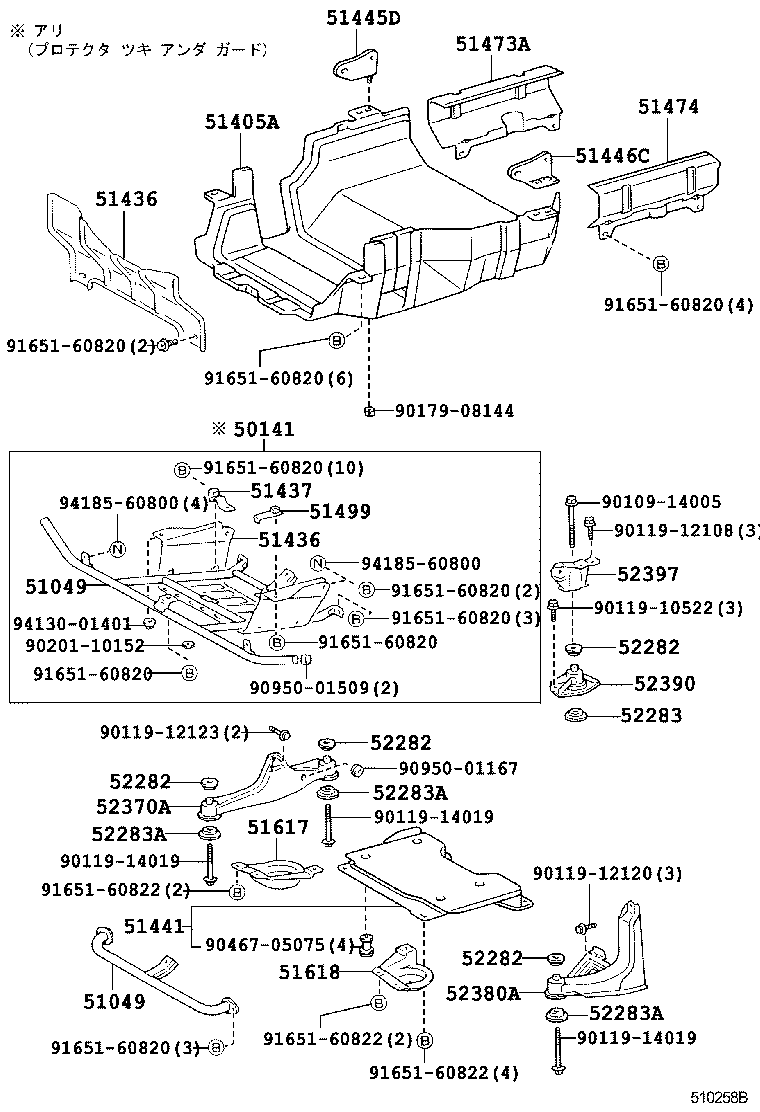

Click highlighted areas on diagram

diagram 50141 51049 51049 51405A 51436 51436 51437 51441 51445D 51446C 51473A 51474 51499 51617 51618 52282 52282 52282 52282 52283 52283A 52283A 52283A 52370A 52380A 52390 52397 9010914005 9011910522 9011912108 9011912120 9011912123 9011914019 9011914019 9011914019 9017908144 9020110152 9046705075 9095001167 9095001509 9165160820 9165160820 9165160820 9165160820 9165160820 9165160820 9165160820 9165160820 9165160820 9165160822 9165160822 9165160822 9413001401 9418560800 9418560800
Part # Description Qty Price
50141 - BAR SET, UNDER GUARD, FRONT
50141-26022

LY15#,16#

***

 1
51049 - BAR SUB-ASSY, UNDER GUARD, FRONT
51049-26010

LY15#,16#

 1
51049-26031

LY15#,16#

ｱﾘ(ﾌﾟﾛﾃｸﾀ ﾂｷ ｱﾝﾀﾞｶﾞ-ﾄﾞ)

 1
51049 - BAR SUB-ASSY, UNDER GUARD, FRONT
51049-26010

LY15#,16#

 1
51049-26031

LY15#,16#

ｱﾘ(ﾌﾟﾛﾃｸﾀ ﾂｷ ｱﾝﾀﾞｶﾞ-ﾄﾞ)

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-25040

LY16#..DSL;LY12#,13#,15#,YY121,131..MTM

 1
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-26050

LY15#,16#

 1
51436 - PROTECTOR, ENGINE FRONT SUPPORT
51436-26050

LY15#,16#

 1
51437 - BRACKET, ENGINE FRONT SUPPORT, LOWER RH
51437-26010

LY15#,16#

 4
51441 - COVER, ENGINE UNDER, NO.1
51440-25020

LY15#,16#

 1
51445D - BRACKET, ENGINE UNDER COVER, RH
51445-25060

LY12#,13#,15#,16#,YY121,131..CBR,DSL

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-25040

LY12#,13#,15#,16#,YY121,131..CBR,DSL

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-25020

LY12#,13#,15#,16#,YY121,131

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51473-25020

LY12#,13#,15#,16#,YY121,131

 1
51499 - RETAINER, UNDER GUARD, LH
51499-26010

LY15#,16#

 1
51617 - GUARD, FRONT DIFFERENTIAL SUPPORT, RH
51617-26010

LY15#,16#

 1
51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH
51618-26010

LY15#,16#

 1
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-95J00

LY15#,16#

 4
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-95J00

LY15#,16#

 4
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-95J00

LY15#,16#

 4
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-95J00

LY15#,16#

 4
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-26010

LY15#,16#

 1
52283A - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-95J00

LY15#,16#

 3
52283A - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-95J00

LY15#,16#

 3
52283A - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-95J00

LY15#,16#

 3
52370A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT RH
52370-26010

LY15#,16#

 1
52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH
52380-26011

LY15#,16#

 1
52390 - SUPPORT ASSY, FRONT DIFFERENTIAL, REAR
52390-95J01

LY15#,16#

 1
52397 - BRACKET, FRONT DIFFERENTIAL REAR SUPPORT
52397-26010

LY15#,16#

 1
Common parts
90109-14005
90119-10522
90119-12108
90119-12120
90119-12123
90119-14019
90179-08144
90201-10152
90467-05075
90950-01167
90950-01509
91651-60820
91651-60822
94130-01401
94185-60800
