LY161-TGMFS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )LY15#,16#

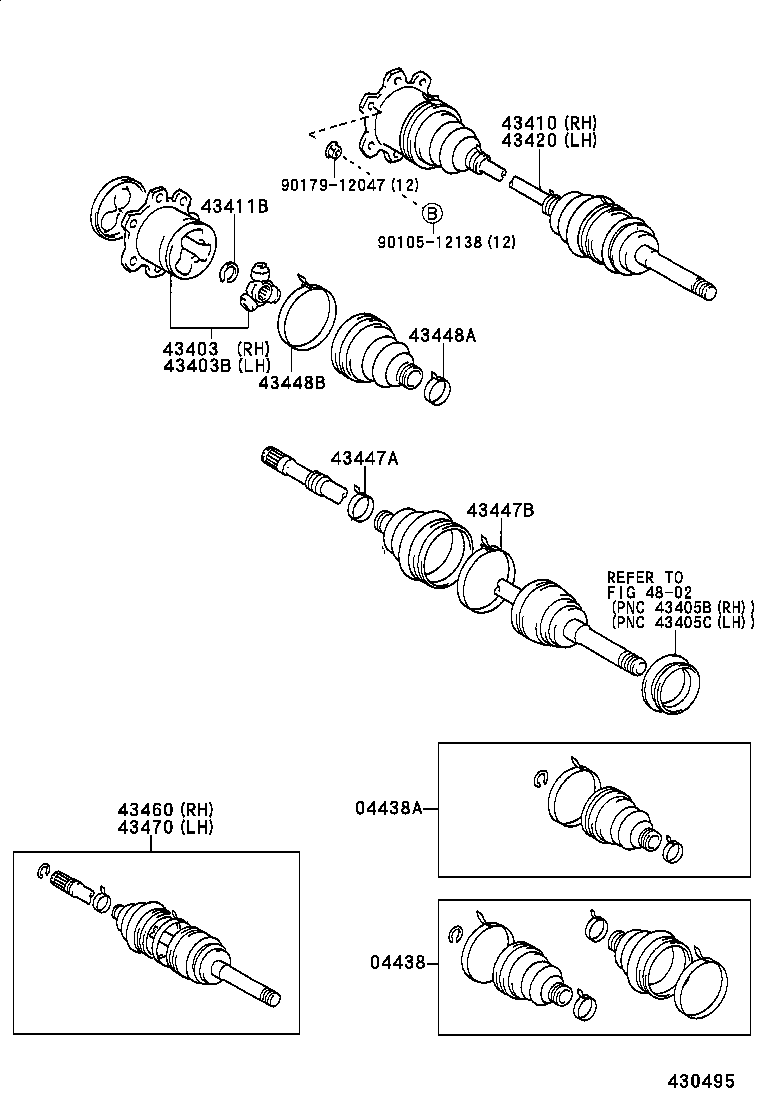

Click highlighted areas on diagram

diagram 04438 04438A 43403 43403B 43410 43411B 43420 43447A 43447B 43448A 43448B 43460 43470 4802 9010512138 9017912047
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-35022

LY15#,16#

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-35012

LY15#,16#

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-35020

LY15#,16#

 1
43403B - JOINT SET, FRONT AXLE INBOARD, LH
43403-35020

LY15#,16#

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-29028

LY15#,16#

 2
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01221

LY15#,16#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01135

LY15#,16#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01221

LY15#,16#

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
90949-01222

LY15#,16#

 2
Common parts
90105-12138
90179-12047
Linked diagrams
4802
