LY161-TGMFS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9905)LY151,161..DSL

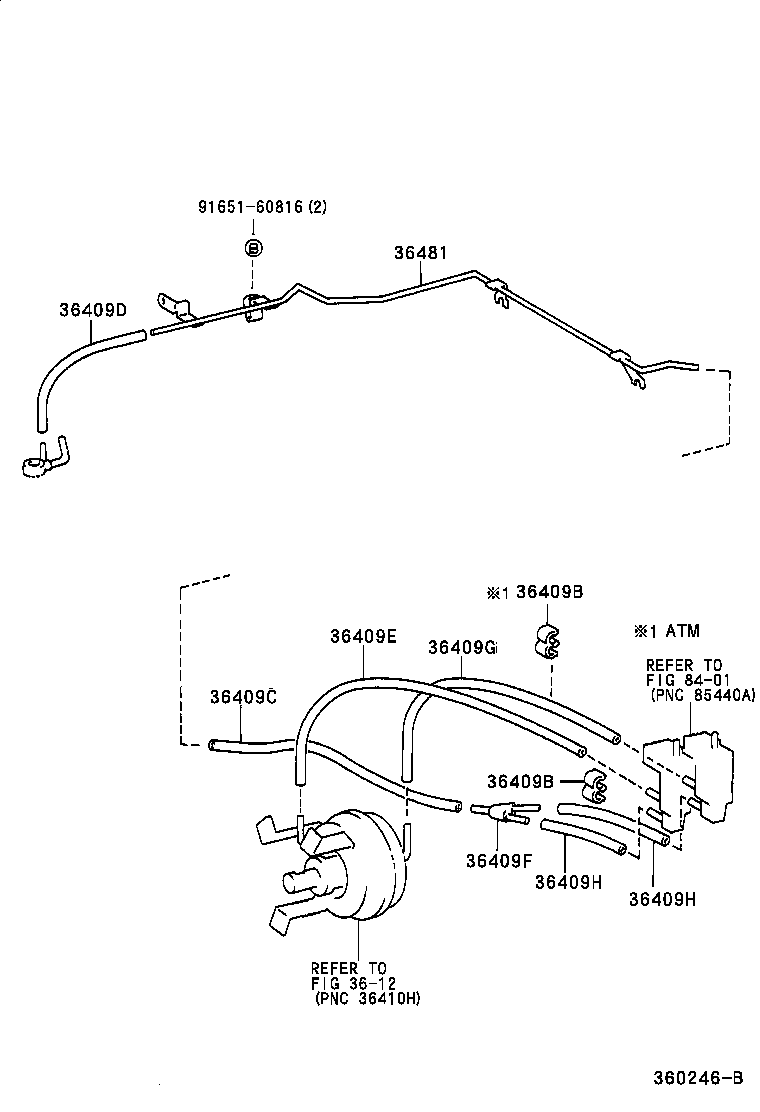

Click highlighted areas on diagram

diagram 3612 36409B 36409B 36409C 36409D 36409E 36409F 36409G 36409H 36409H 36481 8401 9165160816
Part # Description Qty Price
36409B - CLAMP, VACUUM TUBE
90464-00251

LY15#,16#..MTM..DSL

 1
36409B - CLAMP, VACUUM TUBE
90464-00251

LY15#,16#..MTM..DSL

 1
36409C - HOSE, VACUUM, NO.1 (FOR FRONT DRIVE SHIFT)
90999-92002

LY15#,16#

*H,L=220,ﾏｰｸ=#0

 1
36409D - HOSE, VACUUM, NO.2 (FOR FRONT DRIVE SHIFT)
90999-92002

LY151,161..DSL

*H,L=270,ﾏｰｸ=#0

 1
36409E - HOSE, VACUUM, NO.3 (FOR FRONT DRIVE SHIFT)
90445-10046

LY15#,16#..MTM

長さ=340

 1
36409F - WAY, 3, NO.1 (FOR FRONT DRIVE SHIFT)
90904-13026

LY15#,16#

 1
36409G - HOSE, VACUUM, NO.4 (FOR FRONT DRIVE SHIFT)
90445-10046

LY15#,16#..MTM

長さ=340

 1
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
90445-10026

LY15#,16#

長さ=120

 2
36409H - HOSE, VACUUM, NO.5 (FOR FRONT DRIVE SHIFT)
90445-10026

LY15#,16#

長さ=120

 2
36481 - TUBE, FRONT DRIVE VACUUM, NO.1
36481-25010

LY15#,16#

 1
Common parts
91651-60816
Linked diagrams
3612
8401
