LY161-TBPDS3 (1997)
Toyota Dyna 150/Toyoace G15

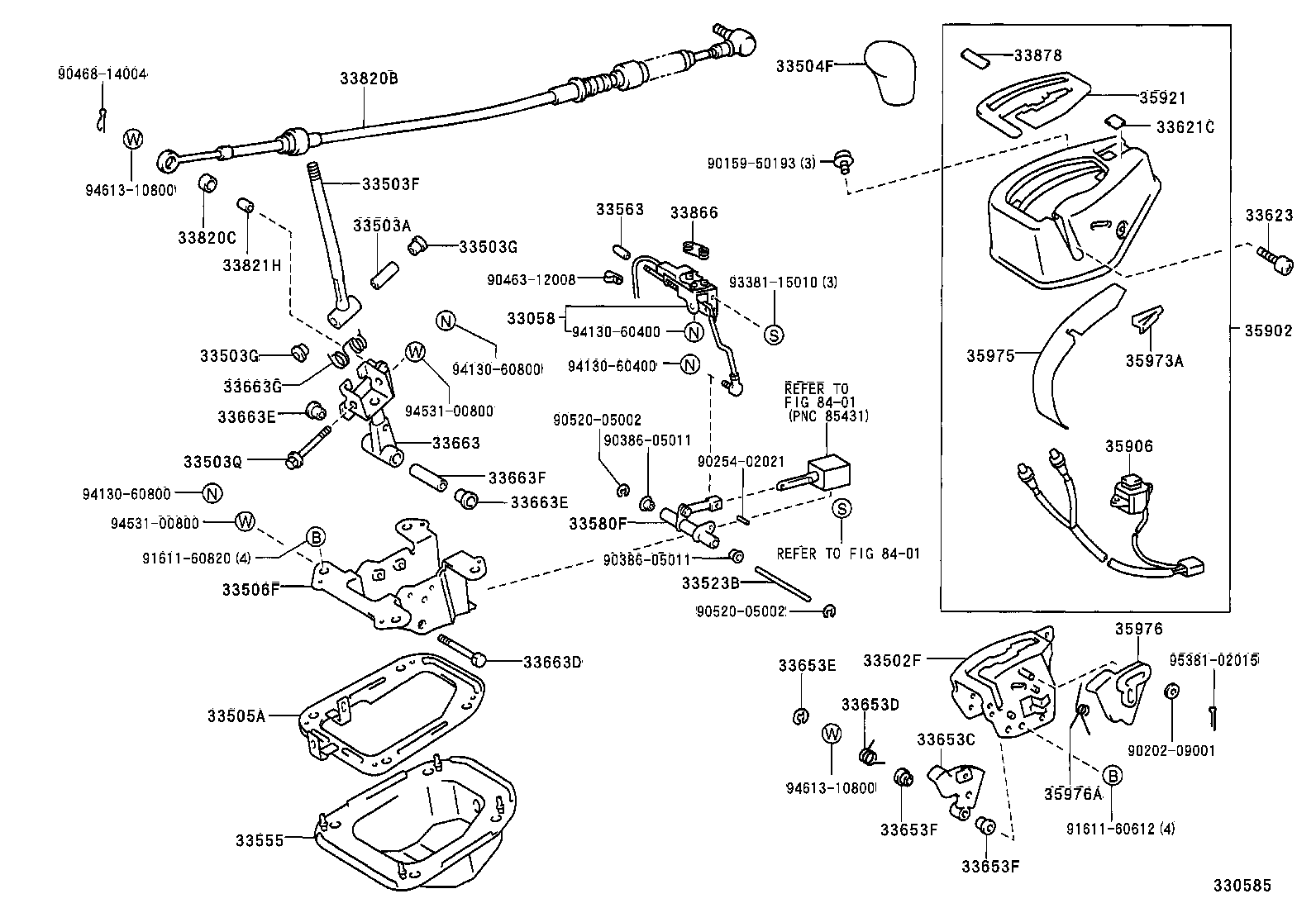

ILLUST NO. 1 OF 2(9708- )LY16#..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-26021 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33502F - HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33502-26080 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08089 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-36110 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
LY10#,11#,13#,16#,21#,YY211..ATM |
2 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90385-11003 |
LY10#,11#,13#,16#,21#,YY211..ATM |
2 | ||
| 33503Q - BOLT(FOR SHIFT LEVER SUB-ASSY) | ||||
| 91111-40855 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36070B0 |
LY10#,11#,13#,16#,21#,YY211..ATM GRAY,TRIM1# |
1 | ||
| 33505A - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR FLOOR SHIFT) | ||||
| 33505-26010 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-26020 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 90249-05071 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-26020 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-26020 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT) | ||||
| 33580-36060 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33621C - LABEL, CONTROL LEVER INFORMATION | ||||
| 33621-26040 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-36020B0 |
LY10#,11#,13#,16#,21#,YY211..ATM GRAY,TRIM1# |
1 | ||
| 33653C - GUIDE, SHIFT LEVER WIRE | ||||
| 33653-36030 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33653D - SPRING, TORSION (FOR FLOOR SHIFT LEVER GUIDE) | ||||
| 90508-16113 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33653E - RING, E (FOR FLOOR SHIFT LEVER GUIDE) | ||||
| 96160-00500 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33653F - BUSH | ||||
| 90386-08014 |
LY10#,11#,13#,16#,21#,YY211..ATM |
2 | ||
| 33653F - BUSH | ||||
| 90386-08014 |
LY10#,11#,13#,16#,21#,YY211..ATM |
2 | ||
| 33663 - LEVER, CONTROL | ||||
| 33663-26012 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33663D - BOLT (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 91111-40880 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90385-11006 |
LY10#,11#,13#,16#,21#,YY211..ATM |
2 | ||
| 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90385-11006 |
LY10#,11#,13#,16#,21#,YY211..ATM |
2 | ||
| 33663F - COLLAR (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90387-08096 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33663G - SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90508-25003 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-25040 |
LY16#..ATM |
1 | ||
| 33820C - BUSH (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90386-10025 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33821H - COLLAR (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90560-08366 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-36010 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-36010 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING | ||||
| 35902-26021B0 |
LY10#,11#,16#,YY211..ATM GRAY,TRIM1# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-26021 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-26060 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-36010 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-36020 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-36010B0 |
LY10#,11#,13#,16#,21#,YY211..ATM GRAY,TRIM1# |
1 | ||
| 35976A - SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER) | ||||
| 90508-10045 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| Common parts | ||||
| 90159-50193 | ||||
| 90202-09001 | ||||
| 90254-02021 | ||||
| 90386-05011 | ||||
| 90463-12008 | ||||
| 90468-14004 | ||||
| 90520-05002 | ||||
| 91611-60612 | ||||
| 91611-60820 | ||||
| 93381-15010 | ||||
| 94130-60400 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
| 94613-10800 | ||||
| 95381-02015 | ||||
| Linked diagrams | ||||
| 8401 | ||||

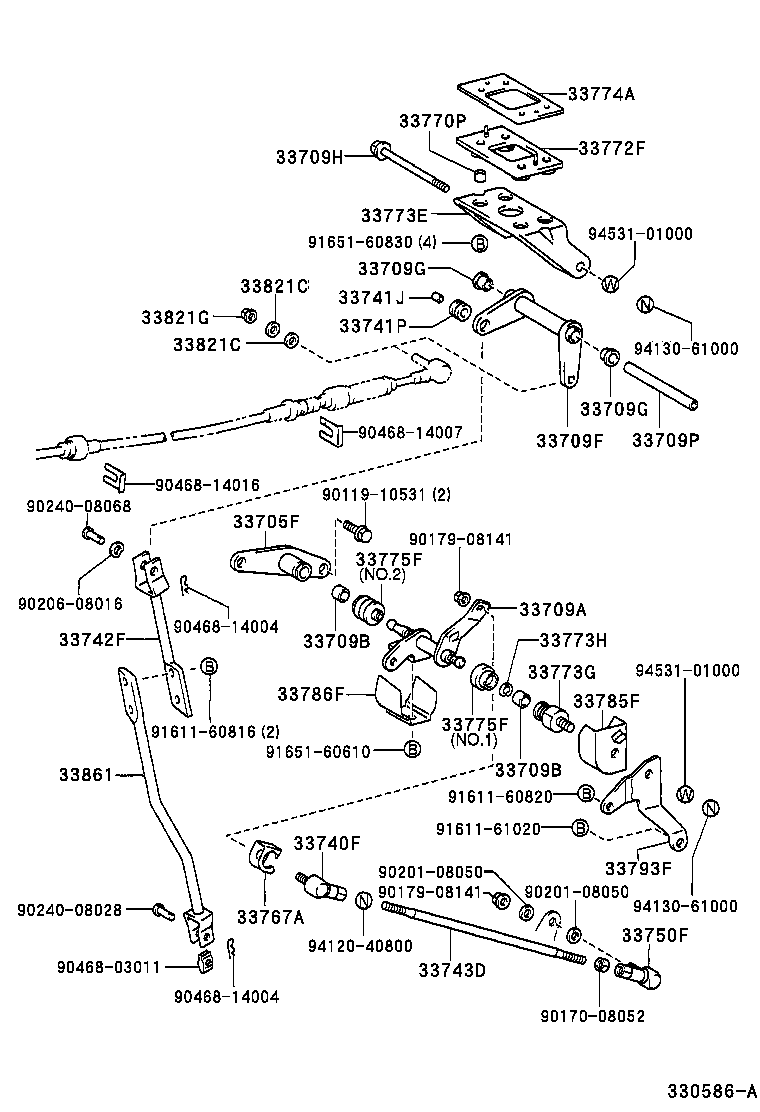

ILLUST NO. 2 OF 2(9708- )LY16#..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-25160 |
LY16#..ATM |
1 | ||
| 33709A - SHAFT SUB-ASSY, CROSS | ||||
| 33709-25180 |
LY16#..ATM |
1 | ||
| 33709B - BUSH (FOR CROSS SHAFT) | ||||
| 33772-26010 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
2 | ||
| 33709B - BUSH (FOR CROSS SHAFT) | ||||
| 33772-26010 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
2 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-25170 |
LY16#..ATM |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33709H - BOLT, HEXAGON (FOR CROSS SHAFT) | ||||
| 90105-10103 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33709P - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-10075 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26020 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT) | ||||
| 33743-25150 |
LY16#..ATM |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-25010 |
LY161..ATM |
1 | ||
| 33750-25011 |
LY16#..ATM |
1 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-26020 |
LY201..WT;LY16#..ATM;LY202,21#..MTM;LY201..ST..15T |
1 | ||
| 33770P - COLLER (FOR CROSS SHAFT) | ||||
| 90387-09021 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
4 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-25010 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33773E - SUPPORT, CROSS SHAFT, NO.1 | ||||
| 33773-25020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33773G - SUPPORT, CROSS SHAFT | ||||
| 33773-20020 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM |
1 | ||
| 33774A - SUPPORT, CROSS SHAFT, NO.2 | ||||
| 33774-25010 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM NO.1 |
1 | ||
| 33775-20040 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM NO.2 |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM NO.1 |
1 | ||
| 33775-20040 |
LY16#;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,15#,202,21#,YY121,131,211..MTM NO.2 |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33727-25030 |
LY201..WT;LY16#..DSL;LY201..ST..15T;LY12#,13#,15#,202,21#..MTM |
1 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-26010 |
LY16#..ATM |
1 | ||
| 33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33793-25080 |
LY16#..ATM |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08141 |
LY10#,11#,13#,16#,21#,YY211..ATM |
1 | ||
| 33861 - ROD, GEAR SHIFTING, NO.4 | ||||
| 33861-25030 |
LY16#..ATM |
1 | ||
| Common parts | ||||
| 90119-10531 | ||||
| 90170-08052 | ||||
| 90179-08141 | ||||
| 90201-08050 | ||||
| 90206-08016 | ||||
| 90240-08028 | ||||
| 90240-08068 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 90468-14007 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91651-60610 | ||||
| 91651-60830 | ||||
| 94120-40800 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
