LY132-TKMFS (1999)
Toyota Dyna 150/Toyoace G15
(9905- )
12V 2.2KW

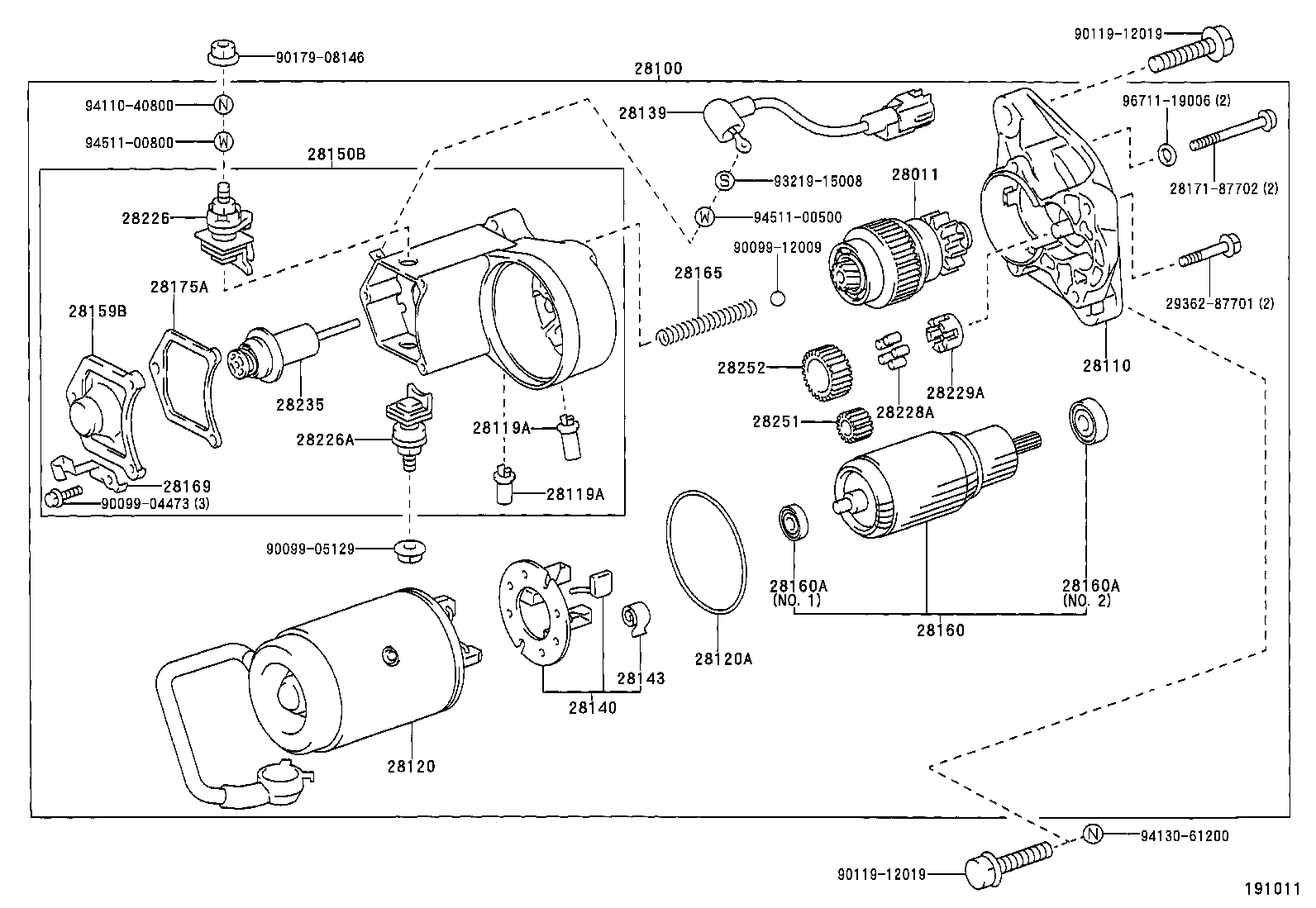

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28011-54260 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-54460 |
5L..LY102,112,122,132,152,162,202,212..MTM 12V 2.2KW |
1 | ||
| 28100-54470 |
5L..LY102,112,122,132,152,162,202,212 12V 2.7KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-54011 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28115-54260 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-46080 |
5L..LY102,112,122,132,152,162,202,212..MTM |
2 | ||
| 28199-46080 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28119A - COVER, STARTER END FRAME | ||||
| 28199-46080 |
5L..LY102,112,122,132,152,162,202,212..MTM |
2 | ||
| 28199-46080 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-56081 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28120-64040 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-64040 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-54171 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28140-64040 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17115 |
5L..LY102,112,122,132,152,162,202,212..MTM |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-54260 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28159-56310 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54140 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28160-64041 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ),NO.1 |
1 | ||
| 90099-10119 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ),NO.2 |
1 | ||
| 90099-10143 |
5L..LY102,112,122,132,152,162,202,212..MTM NO.2 |
1 | ||
| 28253-54070 |
5L..LY102,112,122,132,152,162,202,212..MTM NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10107 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ),NO.1 |
1 | ||
| 90099-10119 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ),NO.2 |
1 | ||
| 90099-10143 |
5L..LY102,112,122,132,152,162,202,212..MTM NO.2 |
1 | ||
| 28253-54070 |
5L..LY102,112,122,132,152,162,202,212..MTM NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-77090 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28165-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54260 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28175-56310 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54320 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28226-17030 |
5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-54220 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28226-72010 |
3Y..YY211;3L,5L,3Y..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-56080 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
5 | ||
| 28228-26040 |
3Y#..YY211;3L,5L,3Y#..LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201..MTM |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28229-56080 |
3L..LY111..IV5;3L..LY161..ATM;3L..LY211..T2..MTM..WT..IV3;5L..LY102,112,122,132,152,162,202,212 ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X2) OR ｱﾘ(130E 41L ﾊﾞﾂﾃﾘ) |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
3Y..YY211;5L,3Y..LY102,112,122,132,152,162,202,212,YY101,121,131,201..MTM |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64040 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-12019 | ||||
| 90179-08146 | ||||
| 93219-15008 | ||||
| 94110-40800 | ||||
| 94130-61200 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 96711-19006 | ||||
