LY132-TGMGS3 (1999)

Toyota Dyna 150/Toyoace G15

Production May 1999 - Jul 2001
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )LY102,112,122,132,152,162,202,212

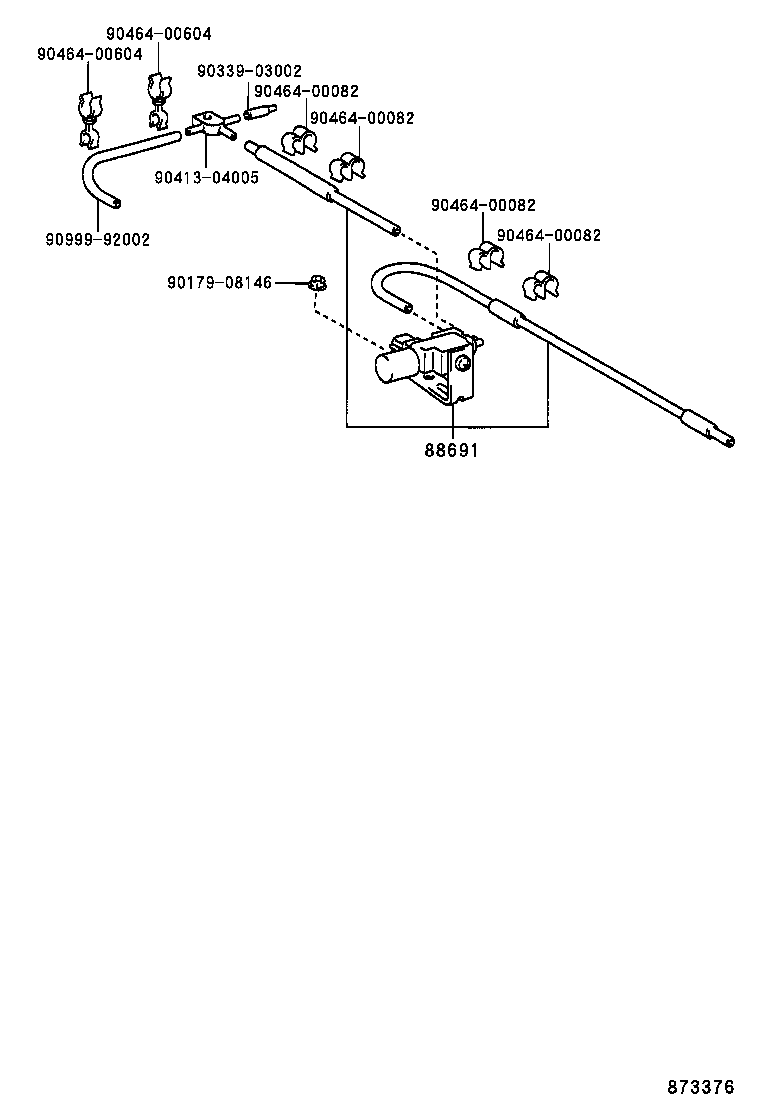

Click highlighted areas on diagram

diagram 88691 9017908146 9033903002 9041304005 9046400082 9046400082 9046400082 9046400082 9046400604 9046400604 9099992002
Part # Description Qty Price
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
25860-54230

LY102,112,122,132,152,162,202,212..DSL

 1
Common parts
90179-08146
90339-03002
90413-04005
90464-00082
90464-00604
90999-92002
