LY132-TGMFS (1999)

Toyota Dyna 150/Toyoace G15

Production May 1999 - Jul 2001
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

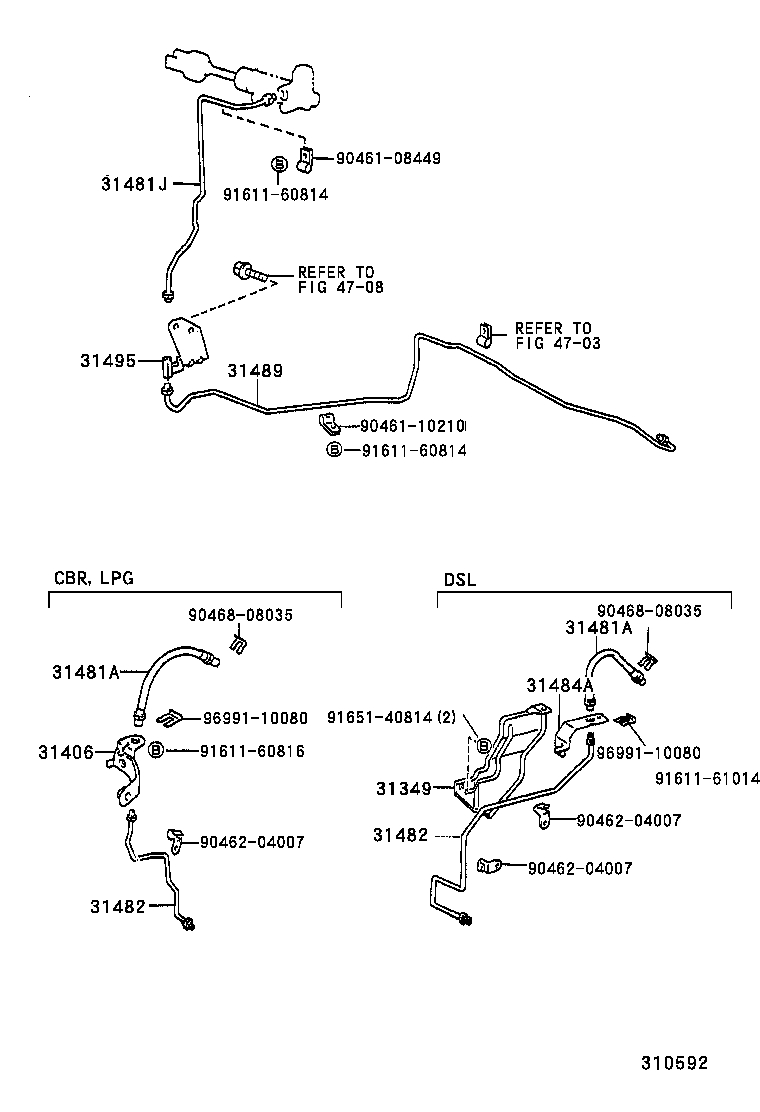

ILLUST NO. 2 OF 2(9905- )LY102,112,122,132,152,162,YY101..MTM

Click highlighted areas on diagram

diagram 31349 31406 31481A 31481A 31481J 31482 31482 31484A 31489 31495 4703 4708 9046108449 9046110210 9046204007 9046204007 9046204007 9046808035 9046808035 9161160814 9161160814 9161160816 9161161014 9165140814 9699110080 9699110080
Part # Description Qty Price
31349 - INSULATOR, CLUTCH CABLE HEAT
31349-25010

LY10#,11#,12#,13#,15#,16#,20#,21#..MTM..DSL

 1
31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY
31481-25200

LY102,112,122,132,152,162,YY101,121,131..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25130

LY201..WT;LY201..ST..15T;LY12#,13#,202,21#..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25130

LY201..WT;LY201..ST..15T;LY12#,13#,202,21#..MTM

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-25170

LY102,112,122,132,152,162,YY101,121,131..MTM

 1
31495 - WAY, CLUTCH TUBE
31495-25010

LY102,112,122,132,152,162,YY101,121,131..MTM

 1
Common parts
90461-08449
90461-10210
90462-04007
90468-08035
91611-60814
91611-60816
91611-61014
91651-40814
96991-10080
Linked diagrams
4703
4708
