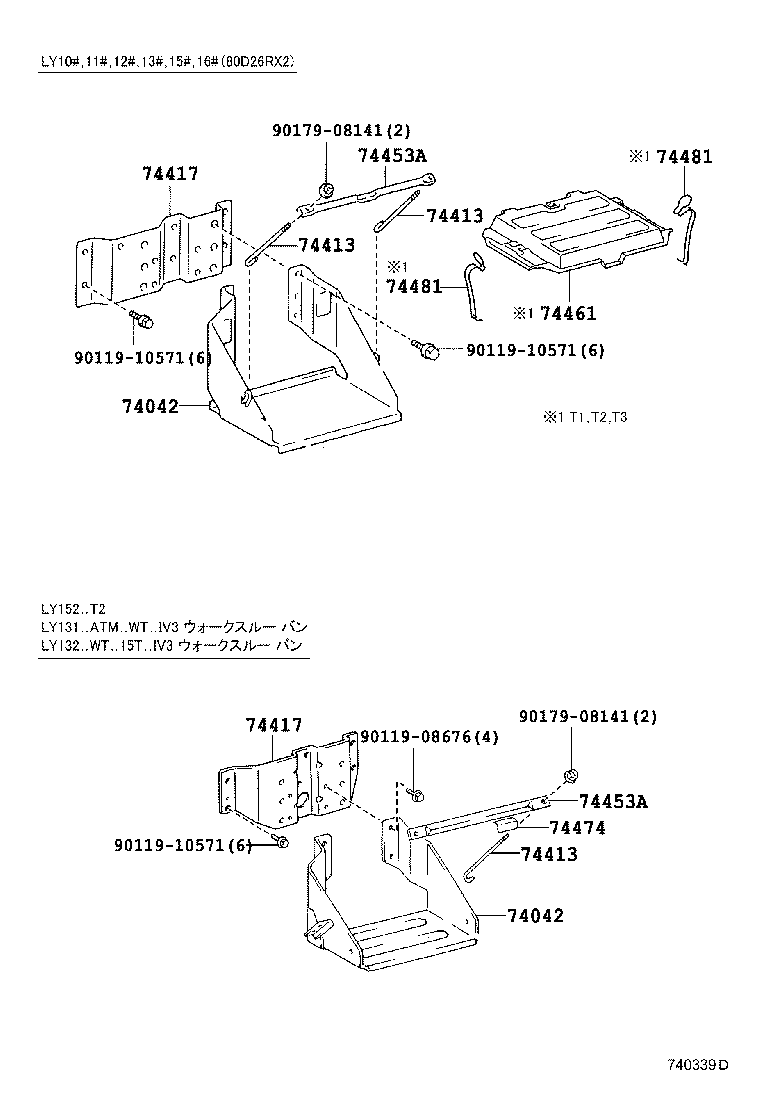

Toyota Dyna 150/toyoace g15 LY131 BATTERY CARRIER

Part #	Description	Period	Qty
74413 - BOLT, BATTERY CLAMP
74451-36070	LY161..LPG;LY131..MTM..WT..15T..IV3;LY101,111,131,161,211..ATM;LY102,112,122,132,152,162,202,212,YY211..DSL,LPG ﾎﾞﾙﾄ径=M8	05/1995 - 12/2999	2
74413 - BOLT, BATTERY CLAMP
74451-36070	LY161..LPG;LY131..MTM..WT..15T..IV3;LY101,111,131,161,211..ATM;LY102,112,122,132,152,162,202,212,YY211..DSL,LPG ﾎﾞﾙﾄ径=M8	05/1995 - 12/2999	2
74413 - BOLT, BATTERY CLAMP
74451-36070	LY161..LPG;LY131..MTM..WT..15T..IV3;LY101,111,131,161,211..ATM;LY102,112,122,132,152,162,202,212,YY211..DSL,LPG ﾎﾞﾙﾄ径=M8	05/1995 - 12/2999	2
74417 - BRACKET, BATTERY CARRIER
74417-26090	LY15#..T3;LY10#,11#,12#,13#,16#..(T1,T2,T3)..DSL ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X 2)	10/1996 - 12/2999	1
74417 - BRACKET, BATTERY CARRIER
74417-26090	LY15#..T3;LY10#,11#,12#,13#,16#..(T1,T2,T3)..DSL ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X 2)	10/1996 - 12/2999	1
74453A - BAR, BATTERY SET PLATE
74453-25100	LY212..T4,TW2;LY212..T2..MTM;LY101,111,131,161,211..ATM;LY202,211..T2..MTM..WT..IV3;LY102,112,122,132,152,162..DSL	05/1995 - 12/2999	1
74453-36070	LY131..CBU;LY131..T2..ST..IV3;LY131..(T3,TW2)..IV3;LY101,111,121,151,161,201,211..DSL ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X 2)	05/1995 - 05/1999	1
74453A - BAR, BATTERY SET PLATE
74453-25100	LY212..T4,TW2;LY212..T2..MTM;LY101,111,131,161,211..ATM;LY202,211..T2..MTM..WT..IV3;LY102,112,122,132,152,162..DSL	05/1995 - 12/2999	1
74453-36070	LY131..CBU;LY131..T2..ST..IV3;LY131..(T3,TW2)..IV3;LY101,111,121,151,161,201,211..DSL ｱﾘ(80D26R ﾊﾞﾂﾃﾘ X 2)	05/1995 - 05/1999	1
74461 - COVER, BATTERY
74461-36100	LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL	05/1995 - 12/2999	1
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030	LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL	05/1995 - 12/2999	2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030	LY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL	05/1995 - 12/2999	2
Common parts
90119-08676
90119-10571
90179-08141

LY131-TKPFS3 (1996)

(9610- )LY10#,11#,12#,13#,15#,16#
