LY131-TKPFS (1996)
Toyota Dyna 150/Toyoace G15

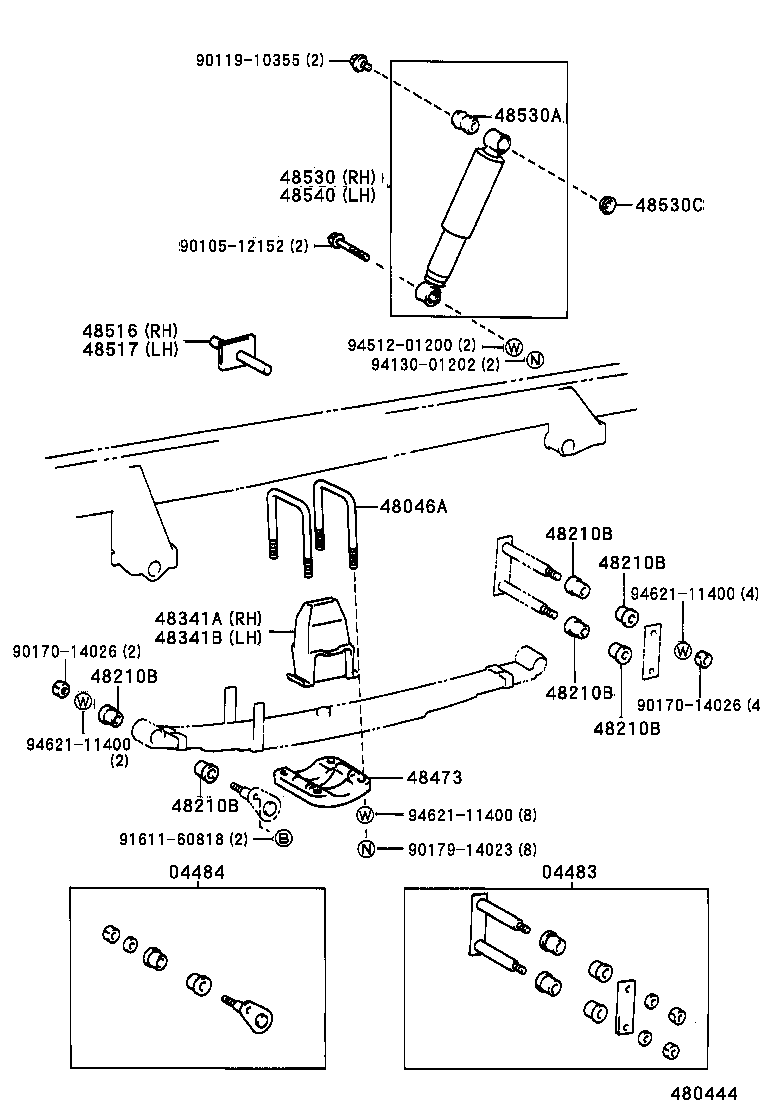

ILLUST NO. 1 OF 2(9610- )LY10#,11#,YY101..T2 ; (9610- )LY12#,13#,15#,16#,YY121,131..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14011 |
LY11#..IV5;LY16#..T3..125;LY16#..T2..ST..15T;LY12#,13#,15#,YY121,131..(T3,TW2)..ST..(125,15T) 長さ=190 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST |
12 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST |
12 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-25020 |
LY16#..TW2;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-25020 |
LY16#..TW2;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48473-25140 |
LY16#..TW2;LY16#..ST..15T;LY12#,13#,YY121,131..ST |
2 | ||
| 48473-26080 |
LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..ST |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY20#,21#,YY201,211;LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST |
2 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 91611-60818 | ||||
| 94130-01202 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

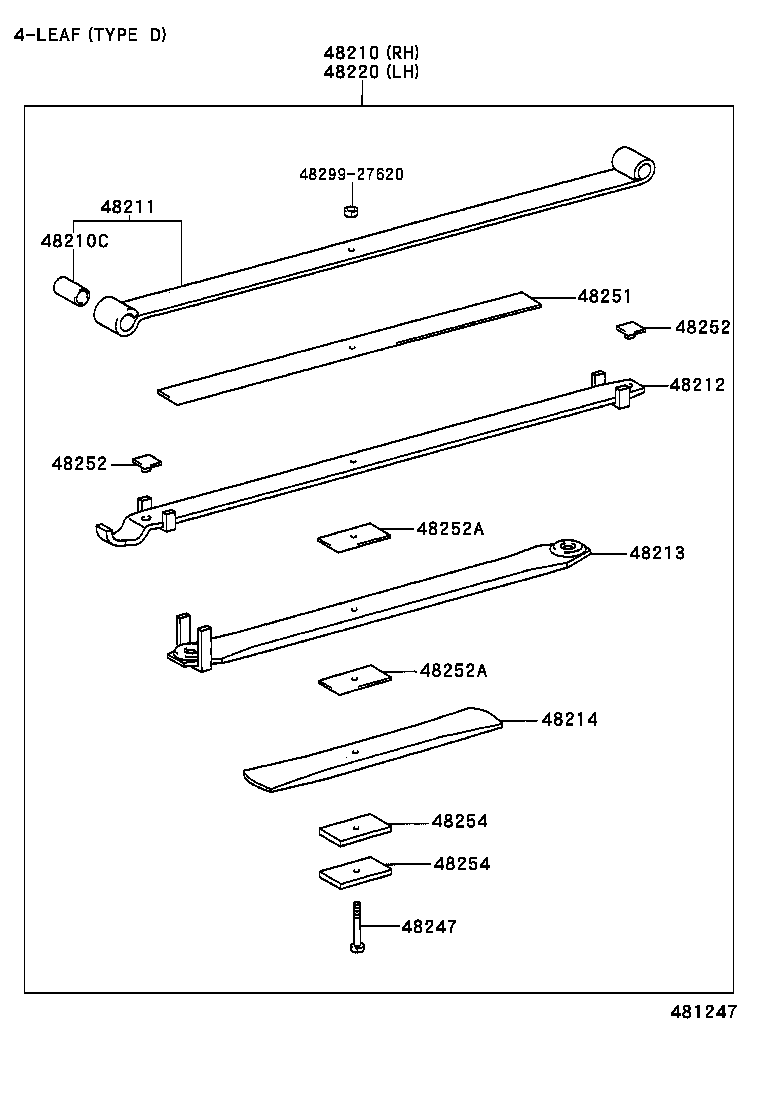

ILLUST NO. 2 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48216-35390 |
LY11#,16#..IV5;LY16#..T3..15T;LY12#,13#,YY121,131..(T3,TW2)..ST |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4-LEAF,TYPE D:ｲﾗｽﾄｻﾝｼｮｳ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-2E010 |
LY11#..IV5;LY12#,13#,YY121,131..(T3,TW2)..ST 4枚ﾘｰﾌ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 48284-37130 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
