LY131-TKPFS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )LY12#,13#,15#,16#

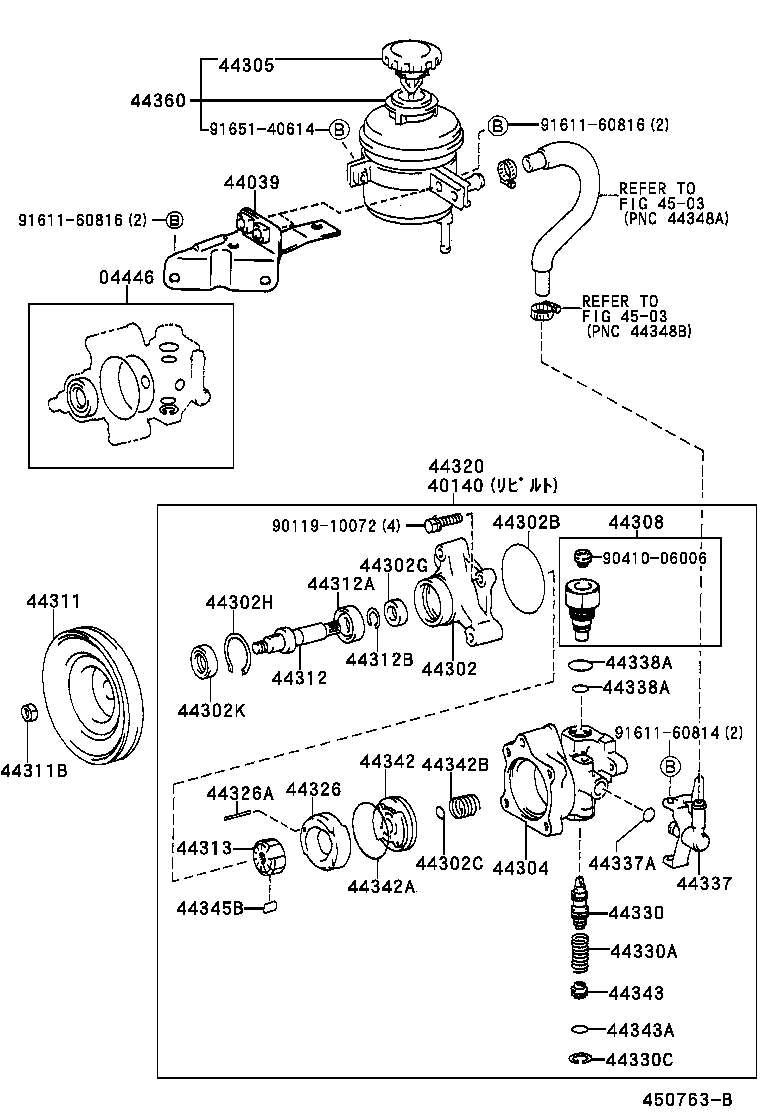

Click highlighted areas on diagram

diagram 04446 40140 44039 44302 44302B 44302C 44302G 44302H 44302K 44304 44305 44308 44311 44311B 44312 44312A 44312B 44313 44320 44326 44326A 44330 44330A 44330C 44337 44337A 44338A 44338A 44342 44342A 44342B 44343 44343A 44345B 44360 4503 4503 9011910072 9041006006 9161160814 9161160816 9161160816 9165140614
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-26030

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
40140 - PUMP ASSY,VANE REBUILT
40140-35441

LY12#,13#,15#,16#..DSL

TOYODA KOKI

 1
40140-25050

YY121,131

TOYODA KOKI

 1
44039 - BRACKET SUB-ASSY, OIL RESERVOIR
44039-25010

LY10#,11#,12#,13#,15#,16#..DSL

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30110

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17004

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-51003

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44302K - SEAL, OIL, NO.3(FOR VANE PUMP HOUSING)
90313-23001

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-30051

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-32010

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-35060

LY12#,13#,15#,16#..DSL

 1
44311 - PULLEY, VANE PUMP
44311-30150

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90170-12011

YY101,121,131,201,211

 1
90178-12003

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
90179-12022

LY101,111,121,131,151,161,201,211

 1
44312 - SHAFT, VANE PUMP
44312-28010

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17011

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15005

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44313 - ROTOR, VANE PUMP
44313-22050

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ 1

 1
44313-22040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ無し

 1
44313-22060

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ 2

 1
44313-22070

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ 3

 1
44313-22080

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ 4

 1
44320 - PUMP ASSY, VANE
44320-25050

YY121,131

 1
44320-35441

LY12#,13#,15#,16#..DSL

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ無し

 1
44325-12020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ 1

 1
44325-12050

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ 4

 1
44325-12030

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ 2

 1
44325-12040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

ﾏｰｸ 3

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

長さ=25,外径=5.0

 2
44330 - VALVE ASSY, FLOW CONTROL
44330-12141

LY12#,13#,15#,16#..DSL

ﾏｰｸ B

 1
44330-12161

LY12#,13#,15#,16#..DSL

ﾏｰｸ D

 1
44330-12171

LY12#,13#,15#,16#..DSL

ﾏｰｸ E

 1
44330-12151

LY12#,13#,15#,16#..DSL

ﾏｰｸ C

 1
44330-12131

LY12#,13#,15#,16#..DSL

ﾏｰｸ A

 1
44330-12181

LY12#,13#,15#,16#..DSL

ﾏｰｸ F

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-30010

LY10#,11#,12#,13#,15#,16#..DSL

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96711-19013

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

外径=25.5,内径=22.5

 1
96711-19014

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

外径=17.0,内径=13.0

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

外径=25.5,内径=22.5

 1
96711-19014

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

外径=17.0,内径=13.0

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
44345B - PLATE, VANE PUMP
44345-12010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

長さ=14.997

 10
44345-12040

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

長さ=14.991

 10
44345-12030

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

長さ=14.993

 10
44345-12020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

長さ=14.995

 10
44345-12050

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

長さ=14.989

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-26030

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
Common parts
90119-10072
90410-06006
91611-60814
91611-60816
91651-40614
Linked diagrams
4503
