LY131-TKPFS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9505-9905)LY101,111,121,131,151,161,201,211,YY101,201,211..MTM ; (9905- )LY202,

Click highlighted areas on diagram

diagram 31349 31406 31481A 31481A 31481B 31481J 31482 31482 31484A 31489 4703 9046108449 9046110210 9046204007 9046204007 9046204007 9046808035 9046808035 9161160814 9161160814 9161160816 9161161014 9165140814 9165160820 9699110080 9699110080
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90947-02895

YY121,131

 1
31481A - HOSE, CLUTCH, NO.1
90947-02895

YY121,131

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25140

YY121,131

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25140

YY121,131

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-25070

YY121,131

 1
Common parts
90461-08449
90461-10210
90462-04007
90468-08035
91611-60814
91611-60816
91611-61014
91651-40814
91651-60820
96991-10080
Linked diagrams
4703

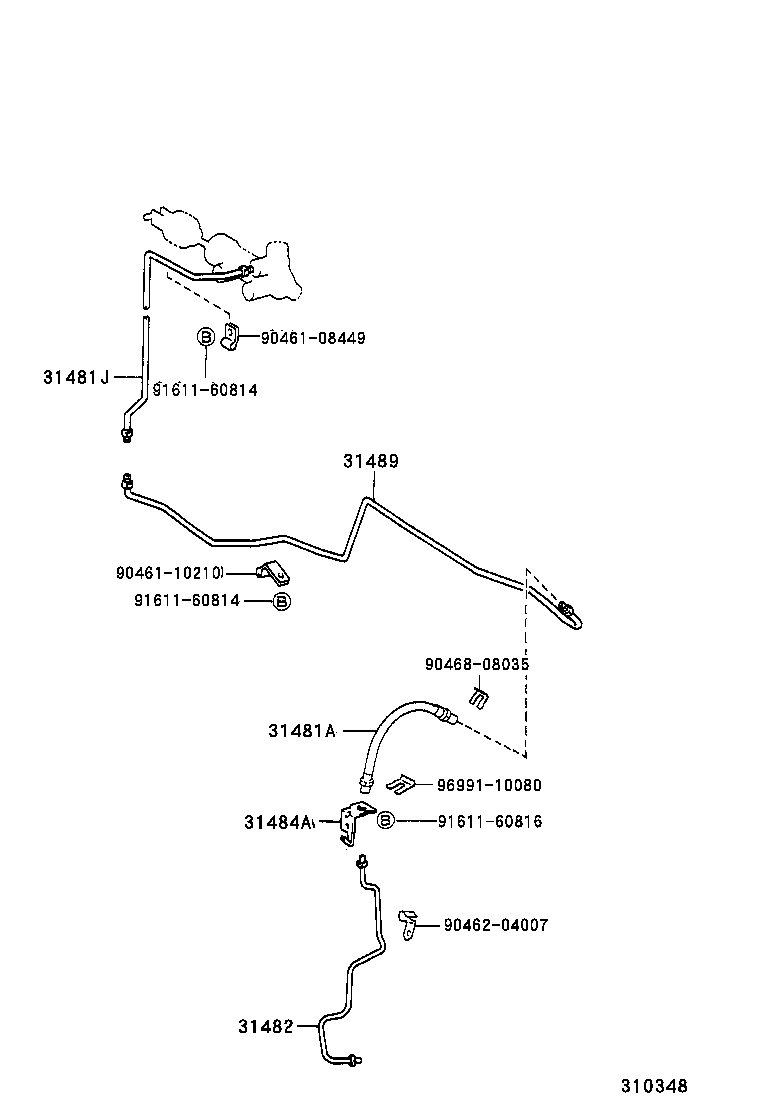

ILLUST NO. 2 OF 2(9610-9905)YY121,131

Click highlighted areas on diagram

diagram 31481A 31481J 31482 31484A 31489 9046108449 9046110210 9046204007 9046808035 9161160814 9161160814 9161160816 9699110080
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
90947-02895

YY121,131

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-25140

YY121,131

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-25070

YY121,131

 1
Common parts
90461-08449
90461-10210
90462-04007
90468-08035
91611-60814
91611-60816
96991-10080
