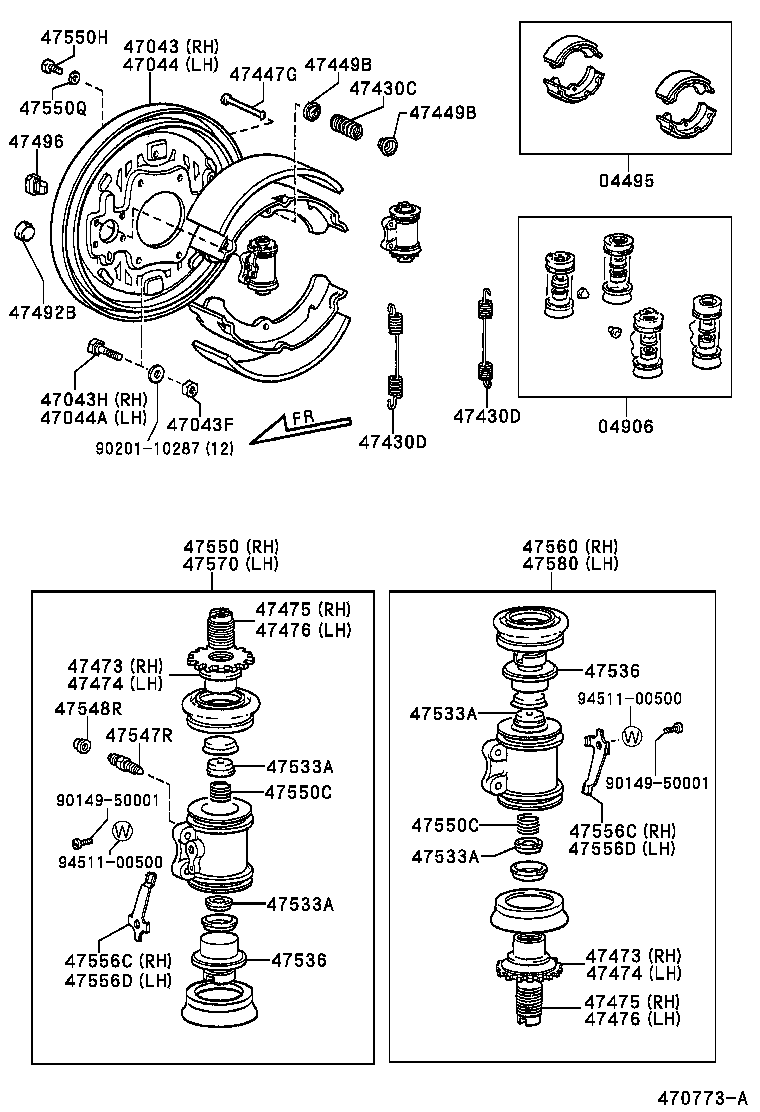

LY131-TKMFS (1996)
Toyota Dyna 150/Toyoace G15
(9505-9905)LY201,YY201..ST..15T ; (9505-9905)LY121,131,211,YY121,131,211..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-25080 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST ﾏｰｸ NBK LN508 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-25070 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-25120 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94110-71000 |
LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
12 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 42184-35011 |
LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
6 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 42184-35011 |
LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
6 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LY162..WT;YY211..ATM;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131,211..ST |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LY162..WT;LY15#,16#..T2..125;LY10#,11#,12#,13#,20#,21#,YY101,121,131,201,211 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36021 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36021 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-28010 |
LY111..IV5;LY161..15T,1T;LY211,YY211..T2..ST;LY211,YY211..T3,T4,TW2;LY151,161..(T3,TW2)..(125,1T);LY121,131,201,YY121,131,201..ST |
2 | ||
| 47492-28010 |
LY211,YY211..T3,T4;LY121,131,YY121,131..ST;LY211,YY211..(T2,TW2)..ST;LY151,161..(T3,TW2)..(125,1T);LY161,201,YY201..(T2,T3,TW1)..ST..(15T,1T) |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY12#,13#,202,21#,YY121,131..T2,T3,TW2 |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2 |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY201,YY201..WT;LY201,YY201..ST..15T;YY211..(T2,T3,TW2)..MTM;LY121,131,211,YY121,131..T2,T3,TW2 |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-60030 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47531-60030 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,211,YY121,131 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,211,YY121,131 |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY121,131,211,YY121,131 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
YY211..MTM;LY201,YY201..WT;LY201,YY201..ST..15T;LY12#,13#,202,21#,YY121,131 |
16 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36020 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36020 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36020 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36020 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-25090 |
LY201,YY201..ST..15T;LY121,131,211,YY121,131,211..ST |
1 | ||
| Common parts | ||||
| 90149-50001 | ||||
| 90201-10287 | ||||
| 94511-00500 | ||||
