LY131-TKMFS (1996)
Toyota Dyna 150/Toyoace G15

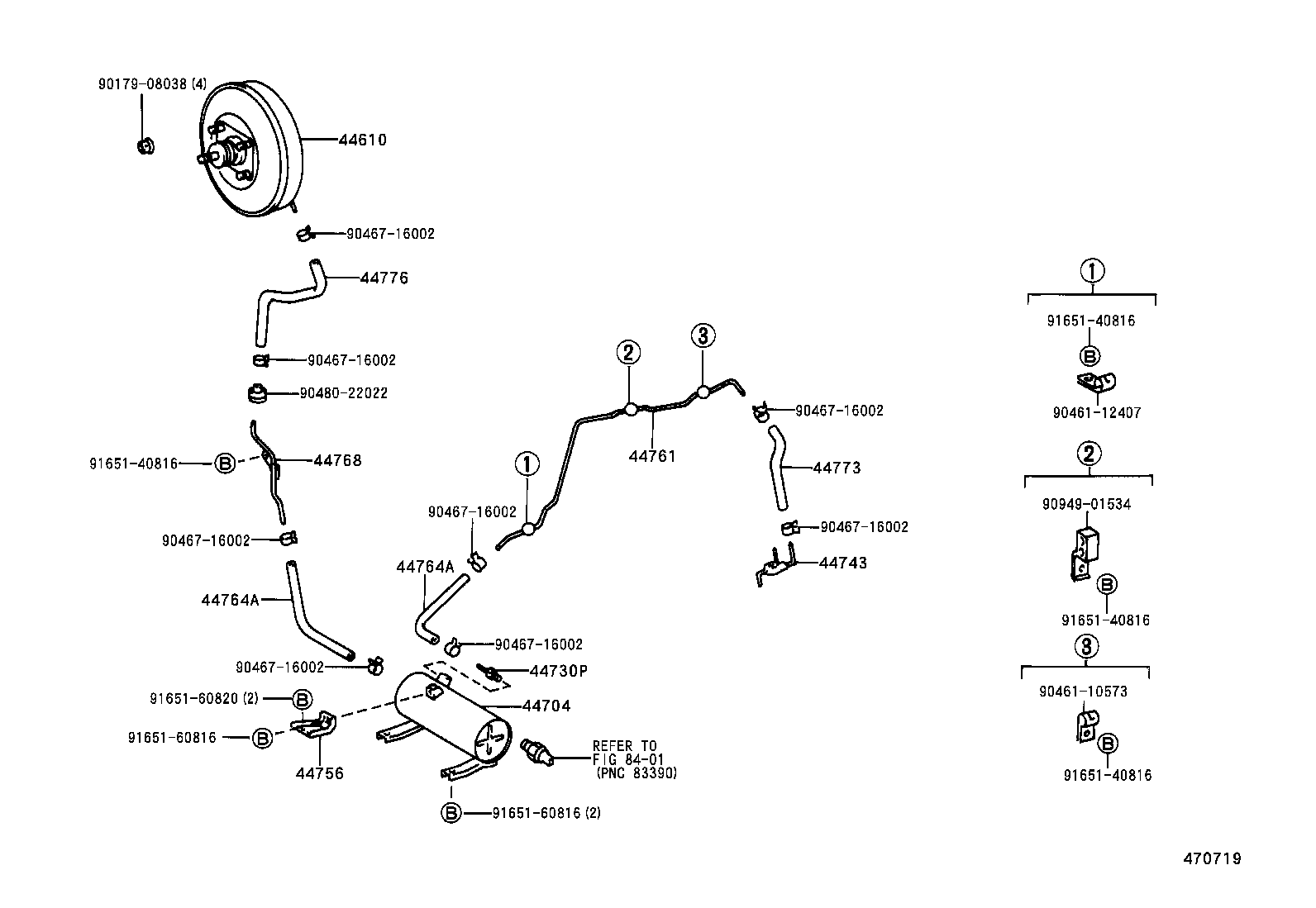

(9610- )LY10#,11#,15# ; (9610- )LY16#..T2,T3,TW1..TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-25240 |
LY162..DSL;LY21#..T2..ST;LY21#..T3,T4,TW2;LY10#,11#,12#,13#,15#,161,20#..ST..DSL |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-25100 |
LY10#,11#,15#;LY16#..(T2,T3,TW1)..TS |
1 | ||
| 44704-25120 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
LY10#,11#,12#,13#,15#,16#,20#,21#..DSL |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09071 |
LY101,111,121,131,201,211 |
1 | ||
| 90405-09070 |
LY101,111,121,131,151,161,201,211..DSL ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-25150 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
1 | ||
| 44761-25110 |
LY10#,11#,15#,20#,21#;LY16#..(T2,T3,TW1)..TS |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44771-25090 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
2 | ||
| 90445-17141 |
LY10#,11#,15#;LY16#..(T2,T3,TW1)..TS |
2 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44771-25090 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
2 | ||
| 90445-17141 |
LY10#,11#,15#;LY16#..(T2,T3,TW1)..TS |
2 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-25030 |
LY16#..LPG;LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 44768-25060 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44774-25060 |
LY101,111,121,131,151,161,201,211..DSL |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90179-08141 | ||||
| 90461-10573 | ||||
| 90461-12407 | ||||
| 90467-16002 | ||||
| 90480-22022 | ||||
| 90949-01534 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

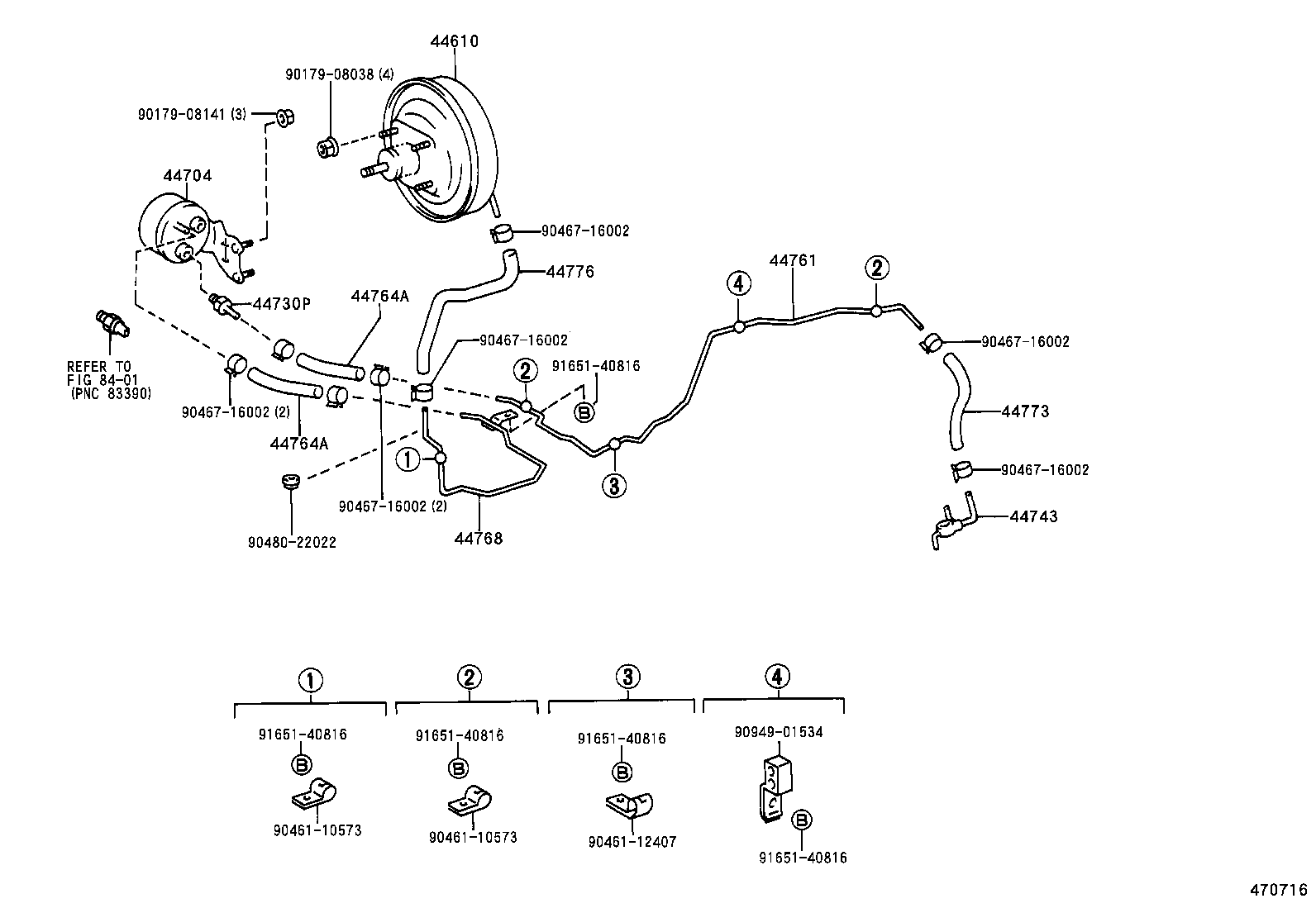

(9610- )LY12#,13# ; (9610- )LY16#..TW2 ; (9610- )LY16#..15T..DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-25240 |
LY162..DSL;LY21#..T2..ST;LY21#..T3,T4,TW2;LY10#,11#,12#,13#,15#,161,20#..ST..DSL |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-25100 |
LY10#,11#,15#;LY16#..(T2,T3,TW1)..TS |
1 | ||
| 44704-25120 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
LY10#,11#,12#,13#,15#,16#,20#,21#..DSL |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09071 |
LY101,111,121,131,201,211 |
1 | ||
| 90405-09070 |
LY101,111,121,131,151,161,201,211..DSL ｱﾘ(ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44755-25020 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-25150 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
1 | ||
| 44761-25110 |
LY10#,11#,15#,20#,21#;LY16#..(T2,T3,TW1)..TS |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44771-25090 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
2 | ||
| 90445-17141 |
LY10#,11#,15#;LY16#..(T2,T3,TW1)..TS |
2 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44771-25090 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
2 | ||
| 90445-17141 |
LY10#,11#,15#;LY16#..(T2,T3,TW1)..TS |
2 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-25030 |
LY16#..LPG;LY16#..(T2,T3,TW1)..TS;LY10#,11#,15#,20#,21#,YY101,121,131,201,211 |
1 | ||
| 44768-25060 |
LY12#,13#;LY16#..TW2;LY16#..15T..DSL |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44774-25060 |
LY101,111,121,131,151,161,201,211..DSL |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90461-10573 | ||||
| 90461-12407 | ||||
| 90467-16002 | ||||
| 90480-22022 | ||||
| 90949-01534 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
