LY131-TGPGS3 (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9505-9905)LY131,211..ATM

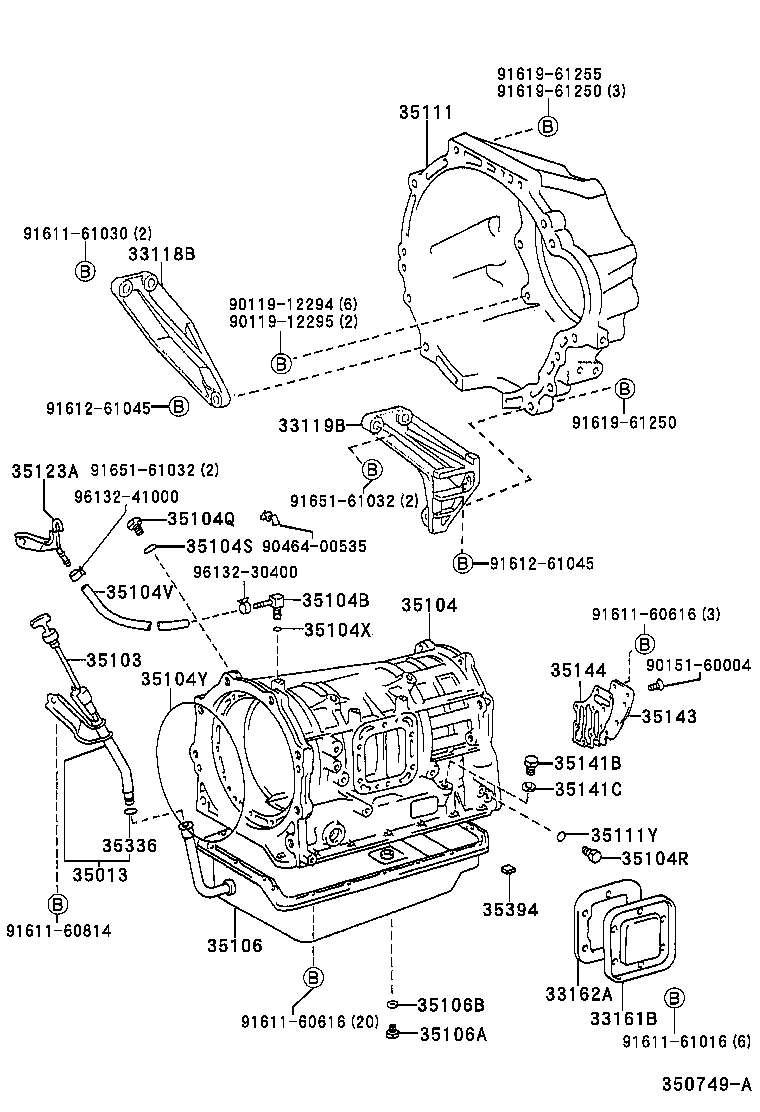

Click highlighted areas on diagram

A443E

diagram 33118B 33119B 33161B 33162A 35013 35103 35104 35104B 35104Q 35104R 35104S 35104V 35104X 35104Y 35106 35106A 35106B 35111 35111Y 35123A 35141B 35141C 35143 35144 35336 35394 9011912294 9011912295 9015160004 9046400535 9161160616 9161160616 9161160814 9161161016 9161161030 9161261045 9161261045 9161961250 9161961250 9161961255 9165161032 9165161032 9613230400 9613241000
Part # Description Qty Price
33118B - PLATE, STIFFENER, RH(ATM)
33118-25020

LY10#,11#,13#,16#..ATM

 1
33119B - PLATE, STIFFENER, LH(ATM)
33119-25020

LY10#,11#,13#..ATM

 1
33161B - COVER, TRANSMISSION POWER TAKE-OFF
33161-36020

LY131,211..ATM

 1
33162A - GASKET, TRANSMISSION POWER TAKE-OFF
33162-36030

LY131,211..ATM

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-25021

LY13#,21#..ATM

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-25021

LY13#,21#..ATM

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-25010

LY131,211..ATM

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03094

LY13#,21#..ATM

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-13001

LY131,211..ATM

 1
35104R - PLUG, NO.2 (FOR TRANSAXLE CASE)
90341-08001

LY13#,21#..ATM

 7
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-10189

LY131,211..ATM

 1
35104V - HOSE (FOR BREATHER PLUG)
90445-11135

LY13#,21#..ATM

 1
35104X - RING, O (FOR BREATHER PLUG)
90301-06005

LY13#,21#..ATM

 1
35104Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-99067

LY131,211..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-25010

LY13#,21#..ATM

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18057

LY13#,21#..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
12157-10010

LY13#,21#..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-25010

LY13#,21#..ATM

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

LY13#,21#..ATM

 7
35123A - SKIRT, TRANSMISSION BREATHER
35123-25010

LY13#,21#..ATM

 1
35141B - PLUG (FOR AUTOMATIC TRANSMISSION CASE)
90341-16010

LY131,211..ATM

 1
35141C - WASHER, PLATE (FOR AUTOMATIC TRANSMISSION CASE)
90201-16013

LY131,211..ATM

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-36011

LY131,211..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-60011

LY131,211..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

LY10#,11#,13#,16#,21#,YY211..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

LY13#,21#..ATM

 4
Common parts
90119-12294
90119-12295
90151-60004
90464-00535
91611-60616
91611-60814
91611-61016
91611-61030
91612-61045
91619-61250
91619-61255
91651-61032
96132-30400
96132-41000
