LY131-PSMDS3 (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

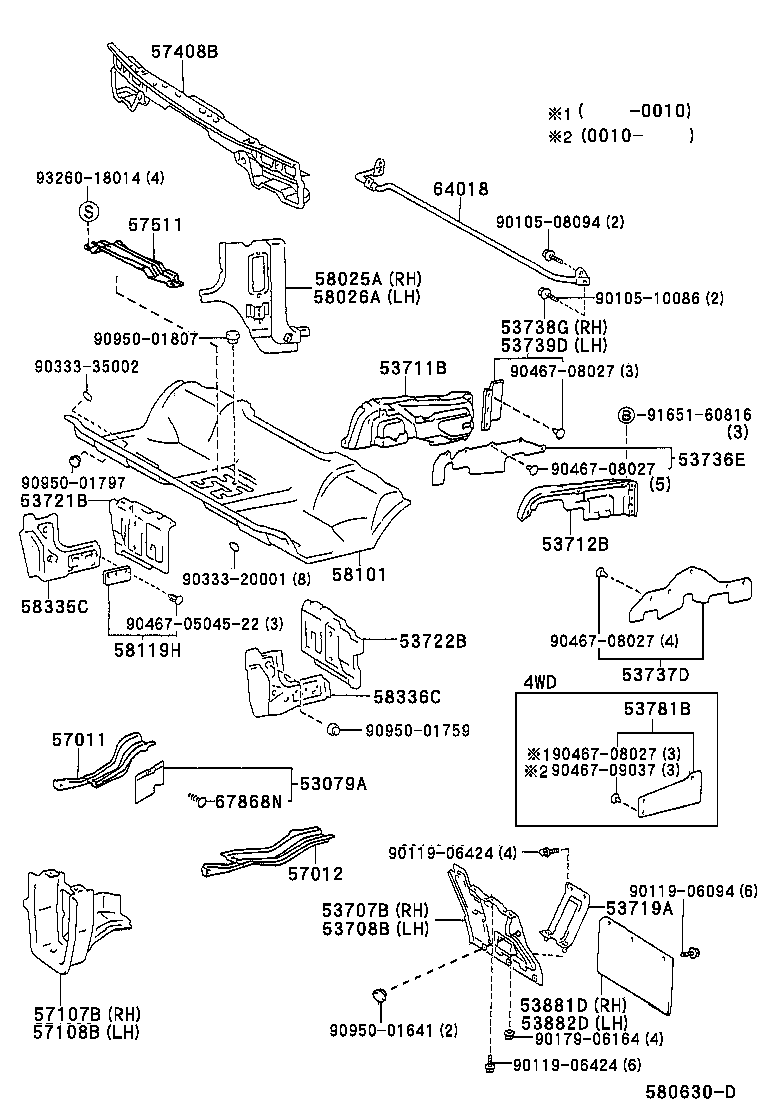

ILLUST NO. 1 OF 2(9610- )LY10#,11#,13#,15#,16#,YY101,131..TW1,TW2

Click highlighted areas on diagram

diagram 53079A 53707B 53708B 53711B 53712B 53719A 53721B 53722B 53736E 53737D 53738G 53739D 53781B 53881D 53882D 57011 57012 57107B 57108B 57408B 57511 58025A 58026A 58101 58119H 58335C 58336C 64018 67868N 9010508094 9010510086 9011906094 9011906424 9011906424 9017906164 9033320001 9033335002 904670504522 9046708027 9046708027 9046708027 9046708027 9046709037 9095001641 9095001759 9095001797 9095001807 9165160816 9326018014
Part # Description Qty Price
53079A - SEAL SUB-ASSY, FRONT FENDER APRON, LOWER
53079-25010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
53707B - APRON SUB-ASSY, FENDER SIDE, RH
53715-95405

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
53708B - APRON SUB-ASSY, FENDER SIDE, LH
53716-25010

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-25010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-25010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
53719A - BRACE, FENDER APRON
53719-92600

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 2
53721B - APRON SUB-ASSY, FENDER SIDE, RH
53721-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
53722B - APRON SUB-ASSY, FENDER SIDE, LH
53722-37020

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
53736E - SEAL, FRONT FENDER APRON, RH
53736-25020

LY12#,13#,15#,16#,YY121,131

 1
53737D - SEAL, FRONT FENDER APRON, LH
53737-25020

LY12#,13#,15#,16#,YY121,131

 1
53739D - SEAL, FRONT FENDER APRON TO FRAME, REAR
53739-25010

LY10#,11#,12#,13#,15#,16#,YY121,131

 2
53781B - SEAL, FRONT FENDER APRON, LOWER
53781-25010

LY12#,13#,15#,16#,YY121,131

 1
53881D - MUDGUARD, FRONT RH
53881-95401

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
53882D - MUDGUARD, FRONT LH
53881-95401

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
57011 - MEMBER SUB-ASSY, FLOOR, RH
57011-25030

LY10#,11#,12#,13#,15#,16#,YY101,121,131

ｱﾘ(*80)

 1
57011-25010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
57012 - MENBER SUB-ASSY
57012-25010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
57012-25030

LY10#,11#,12#,13#,15#,16#,YY101,121,131

ｱﾘ(*80)

 1
57107B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, RH
57107-25010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
57108B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
57108-25010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-25270

LY121,131,YY121,131

 1
57408-25271

LY12#,13#,YY121,131

 1
57511 - REINFORCEMENT, FRONT FLOOR, CENTER
57509-37010

LY16#..ATM;LY10#,11#,12#,13#,20#,21#,YY101,121,131,201,211

 1
58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58025-37011

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58026-95401

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-25100

LY131..T2..MTM..CBU;LY131,211..T2..ST..IV3;LY131,211..(T3,T4,TW2)..MTM;LY101,111,121,201,YY101,121,131,201,211..MTM

ｱﾘ(*80)

 1
58101-25011

LY101,111,121,131,YY101,121,131..MTM

 1
58119H - COVER, FRONT FLOOR SIDE, FRONT
58119-95400

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 2
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
64018 - BAR SUB-ASSY, BODY
64018-95413

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBU,IV3

 1
67868N - CLIP, DOOR WETHERSTRIP, RH
67868-95401

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 8
Common parts
90105-08094
90105-10086
90119-06094
90119-06424
90179-06164
90333-20001
90333-35002
90467-0504522
90467-08027
90467-09037
90950-01641
90950-01759
90950-01797
90950-01807
91651-60816
93260-18014
