LY131-PGMES (1996)
Toyota Dyna 150/Toyoace G15
ILLUST NO. 1 OF 3(9610- )LY12#,13#,162,YY121,131..WT ; (9610-)LY10#,11#,YY101..T1,T3,TW1,TW2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26090 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-26030 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18011 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90385-18046 |
LY12#,13#,162,YY121,131..WT NO.1 |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18011 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90385-18046 |
LY12#,13#,162,YY121,131..WT NO.1 |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18011 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90385-18046 |
LY12#,13#,162,YY121,131..WT NO.1 |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18011 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90385-18046 |
LY12#,13#,162,YY121,131..WT NO.1 |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18011 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90385-18046 |
LY12#,13#,162,YY121,131..WT NO.1 |
8 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18011 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90385-18046 |
LY12#,13#,162,YY121,131..WT NO.1 |
8 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48306-25080 |
LY12#,13#,162,YY121,131..WT |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48036-25010 |
LY12#,13#,162,YY121,131..WT |
1 | ||
| 48473 - SEAT, REAR SPRING U BOLT | ||||
| 48046-25100 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-26010 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY12#,13#,162,20#,21#,YY121,131,201,211..WT |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY12#,13#,162,20#,21#,YY121,131,201,211..WT |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16010 |
LY12#,13#,162,20#,21#,YY121,131,201,211..WT |
4 | ||
| Common parts | ||||
| 90105-12152 | ||||
| 90119-08676 | ||||
| 90119-10355 | ||||
| 90170-14026 | ||||
| 90179-14023 | ||||
| 91611-60818 | ||||
| 94130-01202 | ||||
| 94512-01200 | ||||
| 94621-11400 | ||||

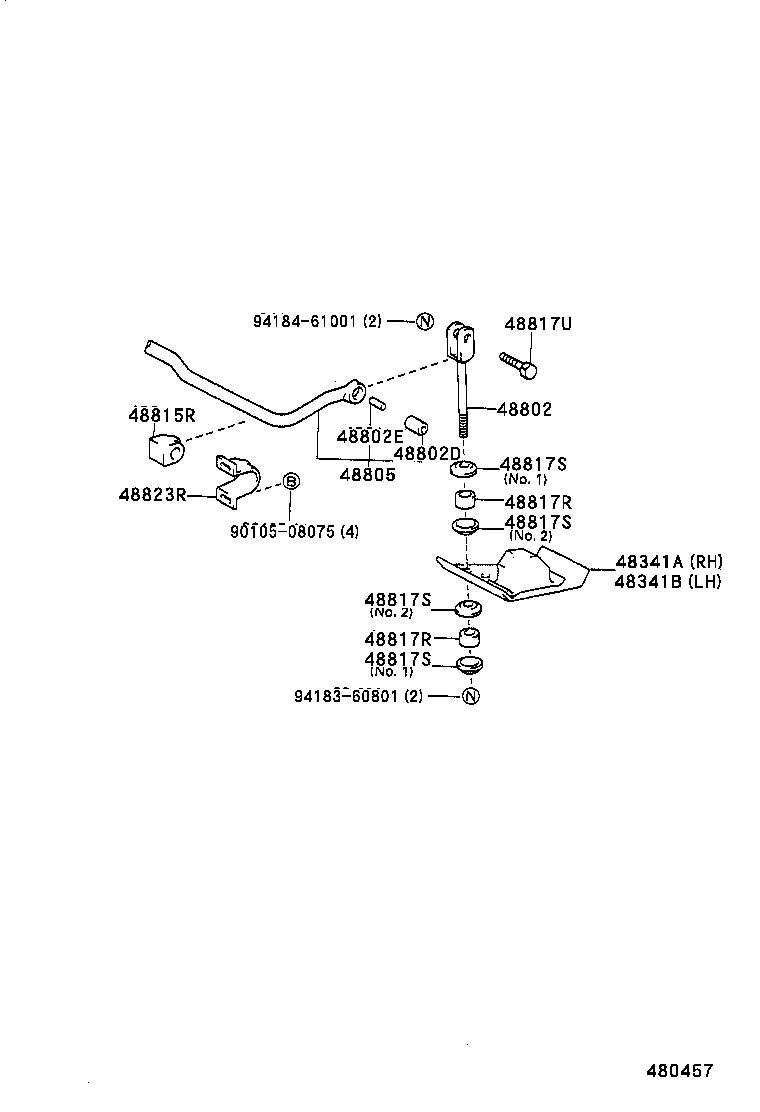

ILLUST NO. 3 OF 3(9610- )LY12#,13#,162,YY121,131..WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48306-25080 |
LY12#,13#,162,YY121,131..WT |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48036-25010 |
LY12#,13#,162,YY121,131..WT |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-26040 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 48802D - BUSH, STABILIZER LINK | ||||
| 90385-11021 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 48802E - SPACER(FOR REAR STABILIZER BAR) | ||||
| 90560-10275 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-26070 |
LY12#,13#,162,YY121,131..WT |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48818-36010 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-36010 |
LY12#,13#,162,YY121,131..WT |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-36010 |
LY12#,13#,162,YY121,131..WT |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90948-02032 |
LY12#,13#,162,YY121,131..WT NO.1 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90948-02032 |
LY12#,13#,162,YY121,131..WT NO.1 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90948-02032 |
LY12#,13#,162,YY121,131..WT NO.1 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02015 |
LY12#,13#,162,YY121,131..WT NO.2 |
4 | ||
| 90948-02032 |
LY12#,13#,162,YY121,131..WT NO.1 |
4 | ||
| 48817U - BOLT(FOR REAR STABILIZER) | ||||
| 91112-61045 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-36022 |
LY12#,13#,162,YY121,131..WT |
2 | ||
| Common parts | ||||
| 90105-08075 | ||||
| 94183-60801 | ||||
| 94184-61001 | ||||
ILLUST NO. 2 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48251-27620 |
LY11#..IV5;LY12#,13#,15#,16#,YY121,131 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY11#..IV5;LY211,YY211..WT;LY211,YY211..T2..ST;LY12#,13#,15#,16#,YY121,131;LY20#,212,YY201..(T2,T4)..15T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48252-27620 |
LY11#..IV5;LY13#,16#,YY131;LY12#,15#,YY121..15T,1T |
4 | ||
| Common parts | ||||
| 48299-27620 | ||||
ILLUST NO. 2 OF 2(9610- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-26540 |
LY10#,11#,12#,13#,15#,16#,YY101,121,131 |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
