LY122-TKMFS (1999)

Toyota Dyna 150/Toyoace G15

Production May 1999 - Jul 2001
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

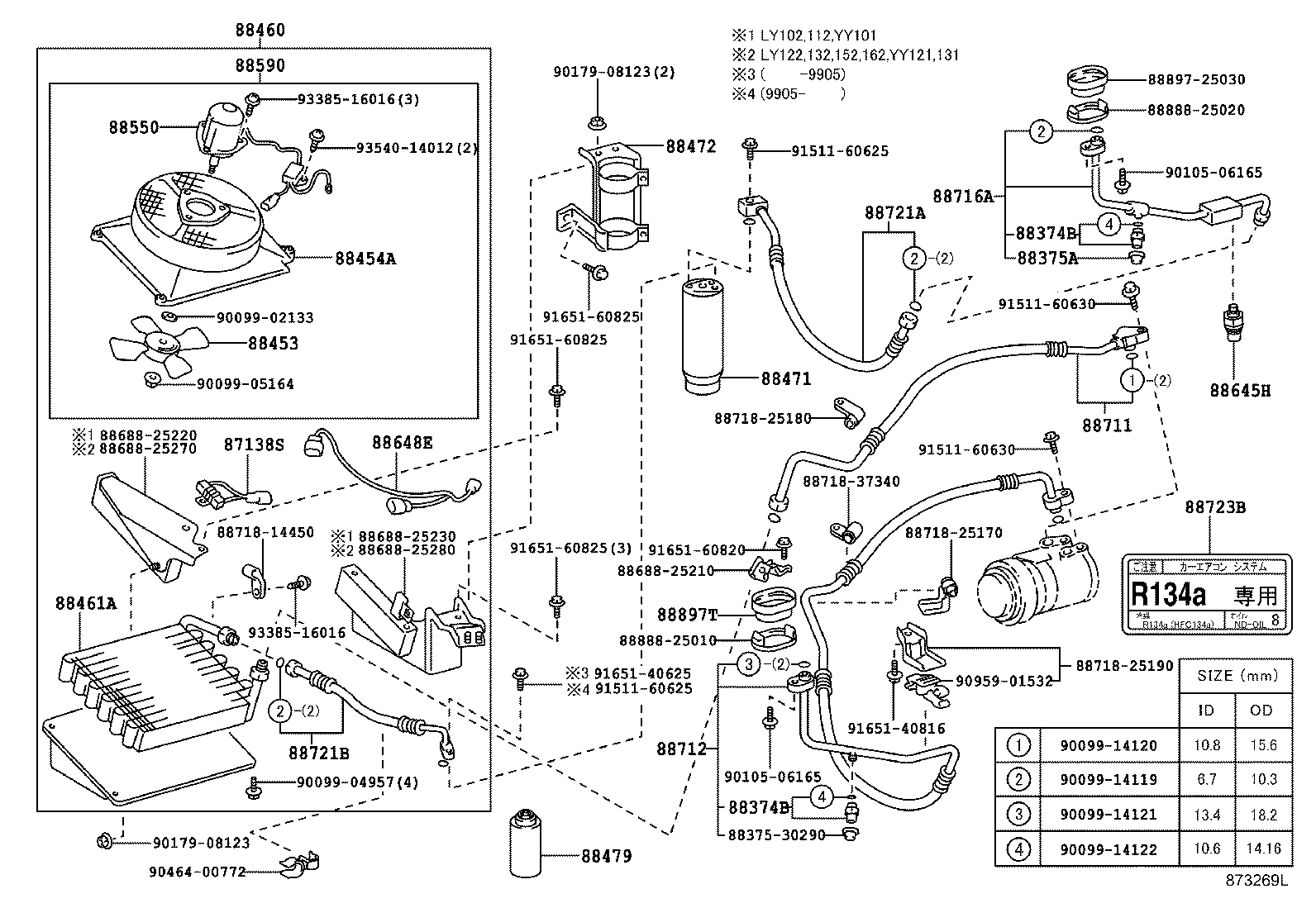

ILLUST NO. 1 OF 2(9905- )LY102,112,122,132,152,162,YY101,121,131

Click highlighted areas on diagram

diagram 87138S 88374B 88374B 8837530290 88375A 88453 88454A 88460 88461A 88471 88472 88479 88550 88590 88645H 88648E 8868825210 8868825220 8868825230 8868825270 8868825280 88711 88712 88716A 8871814450 8871825170 8871825180 8871825190 8871837340 88721A 88721B 88723B 8888825010 8888825020 8889725030 88897T 9009902133 9009904957 9009905164 9009914119 9009914120 9009914121 9009914122 9010506165 9010506165 9017908123 9017908123 9046400772 9095901532 9151160625 9151160625 9151160630 9151160630 9165140625 9165140816 9165160820 9165160825 9165160825 9165160825 9338516016 9338516016 9354014012
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

LY102,112,122,132,152,162,YY101,121,131

 1
88374B - VALVE, SERVICE, NO.1
88374-30010

LY102,112,122,132,152,162,YY101,121,131

 1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-95A01

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

 1
88454A - SHROUD, FAN
88454-25050

LY102,112,122,132,152,162,YY101,121,131

 1
88460 - CONDENSER ASSY, COOLER
88460-25170

LY122,132,152,162,YY121,131

 1
88461A - CORE, COOLER CONDENSER
88461-25030

LY102,112,122,132,152,162,YY101,121,131

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-25070

LY102,112,122,132,152,162,YY101,121,131

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008

LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211

200G

 2
90986-02007

LY211..T3,TW2;LY101,131..CBU;LY121,201..125,1T;LY121,201..15T..CBU;LY101,131..ATM..IV3;LY211..(T2,T4)..CBU;LY211..ATM..WT..IV3;LY101,121..ST..(15T,1T)..IV3;LY131,201..(T3,TW2)..MTM..(125,15T)..IV3;LY102,11#,122,132,15#,16#,202,212,YY101,121,131,201,211

250G

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-25620

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

 1
88590 - BLOWER ASSY, W/SHROUD
88590-25050

LY122..125;LY132..CBU;LY122..15T..CBU;LY132..ATM..IV3;LY122,132..(T3,TW2)..MTM..IV3;LY102,112,152,162,YY101,121,131

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

LY102..MTM..125..IV3;LY112,122,132,152,162,202,212,YY121,131,201,211

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-25300

LY122,132,152,162..DSL

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-25370

LY122,132,152,162..DSL

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-25210

LY102,112,122,132,152,162,YY101,121,131

 1
88721A - HOSE, LIQUID, A
88721-25170

LY102,112,122,132,152,162,YY101,121,131

 1
88721B - HOSE, LIQUID, B
88721-25180

LY102,112,122,132,152,162,YY101,121,131

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
88897T - GROMMET, COOLER
88897-25020

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

 1
