LY121-TLMGS (1996)
Toyota Dyna 150/Toyoace G15

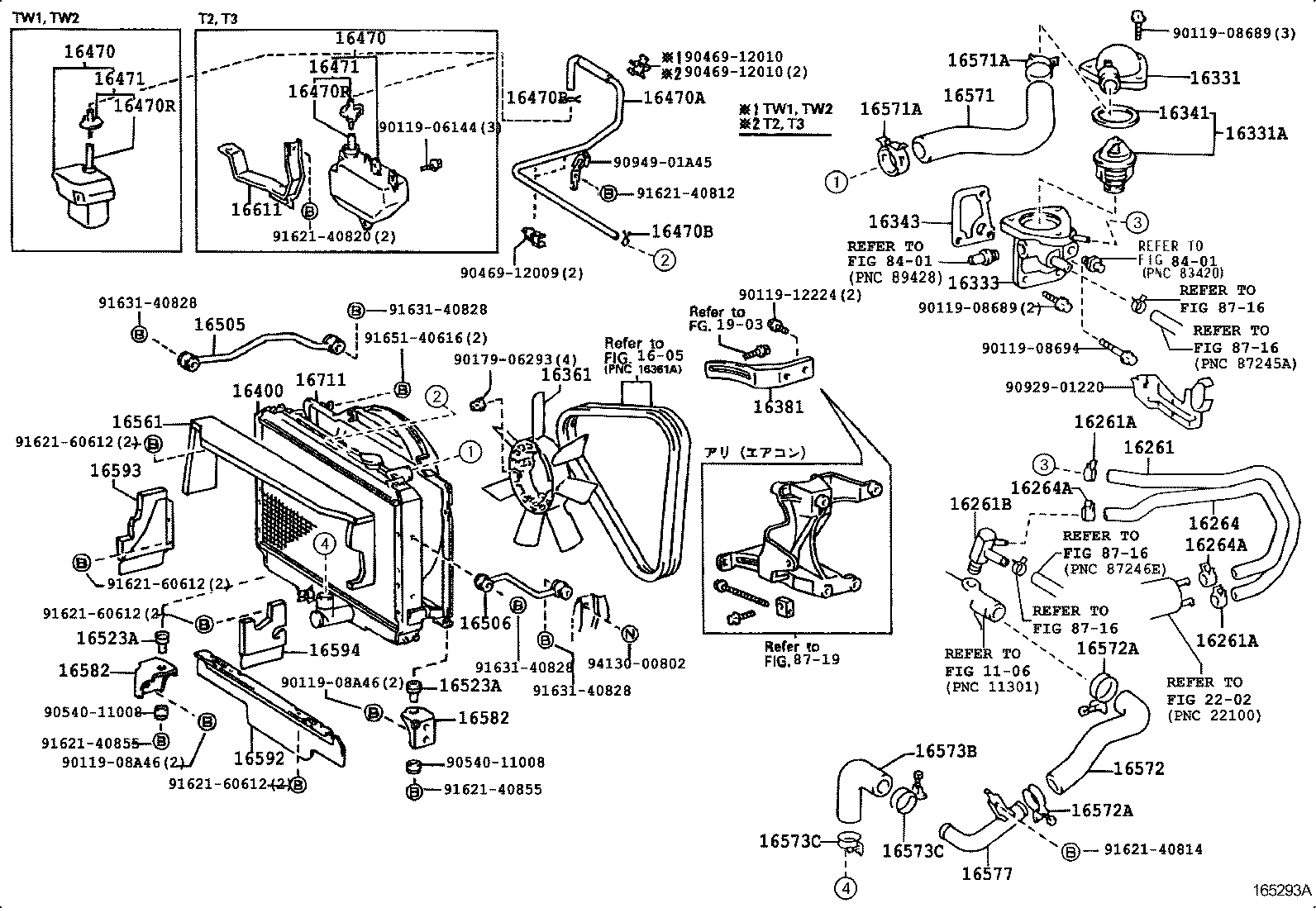

ILLUST NO. 1 OF 2(9610- )3L,5L..LY12#,13#,16#
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54090 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54080 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54090 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54113 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 16361 - FAN | ||||
| 16361-54070 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54110 |
3L..LY121,131,151,161 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B241 |
3L,5L..LY20#,21#..MTM |
1 | ||
| 16400-5B520 |
3L..LY121,131,151,161..MTM |
1 | ||
| 16400-5B521 |
3L,5L..LY12#,13#,15#,16#..MTM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-54750 |
3L..LY101,111,121,131,151,161,201,211 |
1 | ||
| 16401-67150 |
3L..LY211..ATM;3L..LY211..MTM..CBU;3L..LY201,211..T3,TW2;3L,5L..LY10#,11#,12#,13#,15#,16#,202,212 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54280 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-58010 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4 長さ=1670 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54250 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4 |
1 | ||
| 16505 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 16505-54040 |
3L,5L..LY20#,21# |
1 | ||
| 16505-54030 |
3L,5L,3YP..LY12#,13#,15#,16# |
1 | ||
| 16506 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 16506-54010 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-54050 |
3L,5L..LY20#,21# |
2 | ||
| 53210-36010 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16# |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-54050 |
3L,5L..LY20#,21# |
2 | ||
| 53210-36010 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-73020 |
3L,5L,3YP..LY12#,13#,16# |
1 | ||
| 16561-71010 |
3L,5L..LY10#,11#,15#,20#,21# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54390 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54450 |
3L,5L..LY20#,21# |
1 | ||
| 16572-54530 |
3L,5L..LY12#,13#,15#,16# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
3L..LY101,111,121,131,151,161,201,211 ﾗｼﾞｪｰﾀ側 |
1 | ||
| 96111-10500 |
3L..LY101,111,121,131,151,161,201,211 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41005 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# ｴﾝｼﾞﾝ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
3L..LY101,111,121,131,151,161,201,211 ﾗｼﾞｪｰﾀ側 |
1 | ||
| 96111-10500 |
3L..LY101,111,121,131,151,161,201,211 ｴﾝｼﾞﾝ側 |
1 | ||
| 90467-37002 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# ﾗｼﾞｪｰﾀ側 |
1 | ||
| 90467-41005 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# ｴﾝｼﾞﾝ側 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-54110 |
3L,5L..LY10#,11#,12#,13#,15#,16# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10460 |
3L..LY101,111,121,131,151,161 |
2 | ||
| 90467-37002 |
3L,5L..LY10#,11#,12#,13#,15#,16# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 96111-10460 |
3L..LY101,111,121,131,151,161 |
2 | ||
| 90467-37002 |
3L,5L..LY10#,11#,12#,13#,15#,16# |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54190 |
3L,5L..LY12#,13#,15#,16# |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54020 |
3L,5L..LY20#,21# |
1 | ||
| 16582-54040 |
3L,5L,3YP..LY12#,13#,15#,16# |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-54020 |
3L,5L..LY20#,21# |
1 | ||
| 16582-54040 |
3L,5L,3YP..LY12#,13#,15#,16# |
2 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-54090 |
3L,5L..LY12#,13#,16#;3L,5L..LY10#,11#..ATM |
1 | ||
| 16593-54060 |
3L,5L..LY20#,21# |
1 | ||
| 16593-54070 |
3L,5L..LY10#,11#,15#..MTM |
1 | ||
| 16593-54080 |
3L..LY121,131,161 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-54090 |
3L,5L..LY10#,11#,15# |
1 | ||
| 16594-54080 |
3L,5L..LY20#,21# |
1 | ||
| 16594-54100 |
3L,5L..LY12#,13#,16# |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-54130 |
3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-54590 |
3L,5L..LY12#,13#,15#,16# |
1 | ||
| 16711-54490 |
3L,5L..LY20#,21# |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-08A46 | ||||
| 90119-12224 | ||||
| 90179-06293 | ||||
| 90469-12009 | ||||
| 90469-12010 | ||||
| 90540-11008 | ||||
| 90929-01220 | ||||
| 90949-01A45 | ||||
| 91621-40812 | ||||
| 91621-40814 | ||||
| 91621-40820 | ||||
| 91621-40855 | ||||
| 91621-60612 | ||||
| 91631-40828 | ||||
| 91651-40616 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1605 | ||||
| 1903 | ||||
| 2202 | ||||
| 8401 | ||||
| 8716 | ||||
| 8719 | ||||

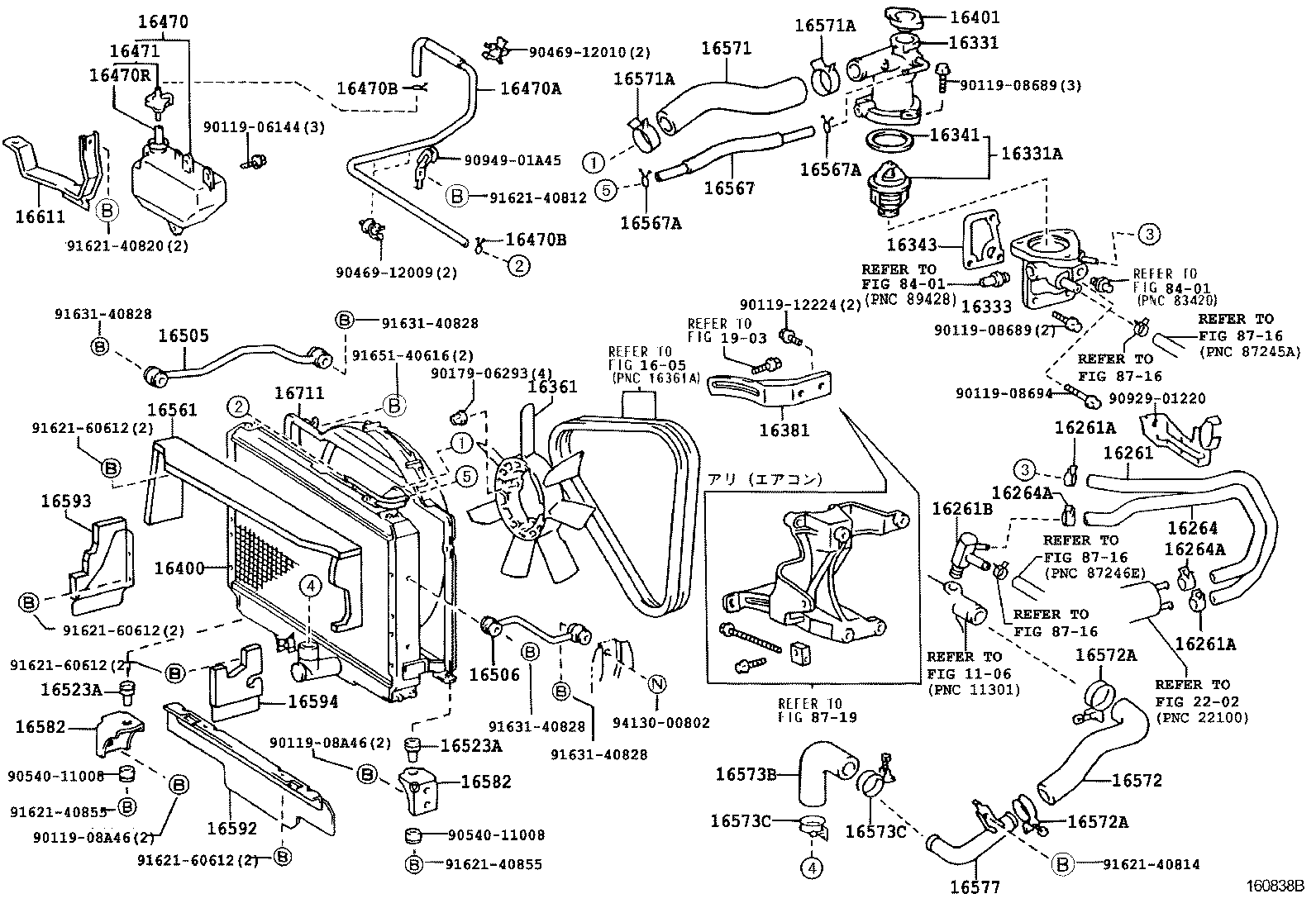

ILLUST NO. 1 OF 2(9610- )3L,5L..LY12#,13#,16#
