LY121-TLMES (1996)
Toyota Dyna 150/Toyoace G15
(9610- )LY10#,11#,12#,13#,15#,16#..CBU,IV3

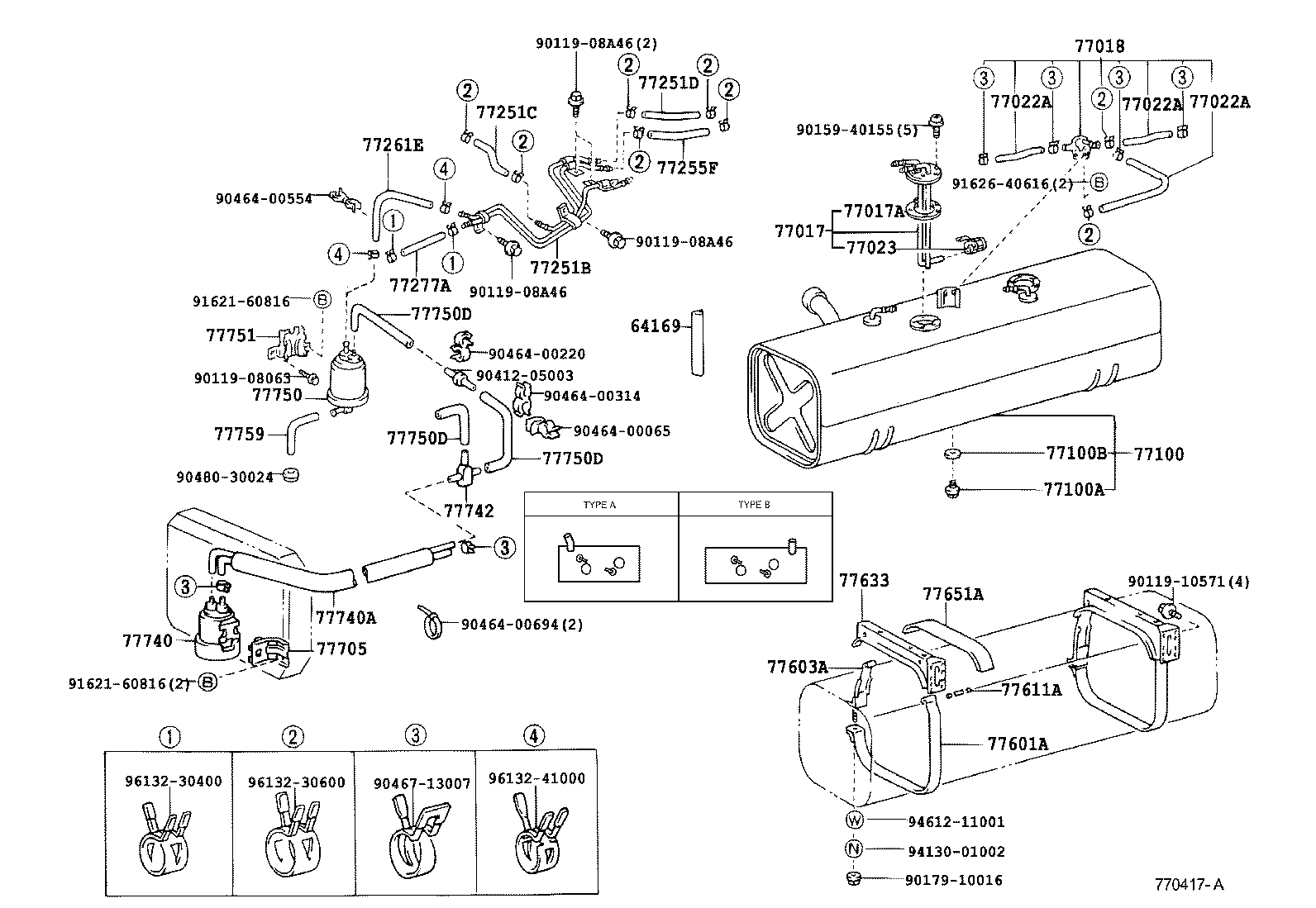

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-26110 |
YY101,121,131 |
1 | ||
| 77017-26121 |
LY10#,11#,12#,13#,15#,16#..DSL |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26140 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL |
1 | ||
| 77018-26130 |
YY101,121,131 |
1 | ||
| 77018A - ORIFICE, FUEL VAPOUR | ||||
| 90977-02001 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 95333-06040 |
YY101,121,131 *H,L=380 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 95333-06040 |
YY101,121,131 *H,L=380 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 95333-06040 |
YY101,121,131 *H,L=380 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
LY10#,11#,12#,13#,15#,16#,20#,21#..DSL |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-25170 |
YY101,121,131 |
1 | ||
| 77205-25150 |
LY12#,13#..T2,T3 |
1 | ||
| 77205-25100 |
LY20#,21# |
1 | ||
| 77205-25170 |
YY101,121;YY131..15T |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-26030 |
YY101,121,131 |
1 | ||
| 77259-25050 |
LY12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL..(CBU,IV3) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#..DSL *H,L=150,内径=7.6 |
1 | ||
| 95334-06014 |
YY101,121,131 *H,L=140 |
1 | ||
| 95333-08020 |
LY20#,21# *H,L=200,内径=7.6 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
LY10#,11#,12#,13#,15#,16#..DSL *H,L=140 |
1 | ||
| 95333-06020 |
LY20#,21# *H,L=200 |
1 | ||
| 95333-04020 |
YY101,121,131 *H,L=140 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12109 |
LY10#,11#,12#,13#,15#,16#..DSL 長さ=310 |
1 | ||
| 90447-12108 |
LY20#,21# 長さ=220 |
1 | ||
| 23273-73090 |
YY101,121,131 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26030 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
LY21#,YY211..(T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,YY101,121,131..CBR,DSL |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26040 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
LY10#,11#,12#,13#,15#,16#,20#,21#..DSL |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90119-10571 | ||||
| 90159-40155 | ||||
| 90179-10016 | ||||
| 90467-13007 | ||||
| 91626-40616 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
(9610- )YY101,121,131
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-26110 |
YY101,121,131 |
1 | ||
| 77017-26121 |
LY10#,11#,12#,13#,15#,16#..DSL |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26140 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL |
1 | ||
| 77018-26130 |
YY101,121,131 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 95333-06040 |
YY101,121,131 *H,L=380 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 95333-06040 |
YY101,121,131 *H,L=380 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 95333-06040 |
YY101,121,131 *H,L=380 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
LY10#,11#,12#,13#,15#,16#,20#,21#..DSL |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-25170 |
YY101,121,131 |
1 | ||
| 77205-25150 |
LY12#,13#..T2,T3 |
1 | ||
| 77205-25100 |
LY20#,21# |
1 | ||
| 77205-25170 |
YY101,121;YY131..15T |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-26030 |
YY101,121,131 |
1 | ||
| 77259-25050 |
LY12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL..(CBU,IV3) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#..DSL *H,L=150,内径=7.6 |
1 | ||
| 95334-06014 |
YY101,121,131 *H,L=140 |
1 | ||
| 95333-08020 |
LY20#,21# *H,L=200,内径=7.6 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
LY10#,11#,12#,13#,15#,16#..DSL *H,L=140 |
1 | ||
| 95333-06020 |
LY20#,21# *H,L=200 |
1 | ||
| 95333-04020 |
YY101,121,131 *H,L=140 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12109 |
LY10#,11#,12#,13#,15#,16#..DSL 長さ=310 |
1 | ||
| 90447-12108 |
LY20#,21# 長さ=220 |
1 | ||
| 23273-73090 |
YY101,121,131 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26030 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
LY21#,YY211..(T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,YY101,121,131..CBR,DSL |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26040 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-27210 |
YY101,121,131 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 90910-05180 |
YY101,121,131 |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08A46 | ||||
| 90119-10571 | ||||
| 90159-40155 | ||||
| 90179-10016 | ||||
| 90412-05003 | ||||
| 90464-00065 | ||||
| 90464-00220 | ||||
| 90464-00314 | ||||
| 90464-00554 | ||||
| 90464-00694 | ||||
| 90467-13007 | ||||
| 90480-30024 | ||||
| 91621-60816 | ||||
| 91626-40616 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-41000 | ||||
