LY121-TLMES (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )LY12#,13#,YY121,131

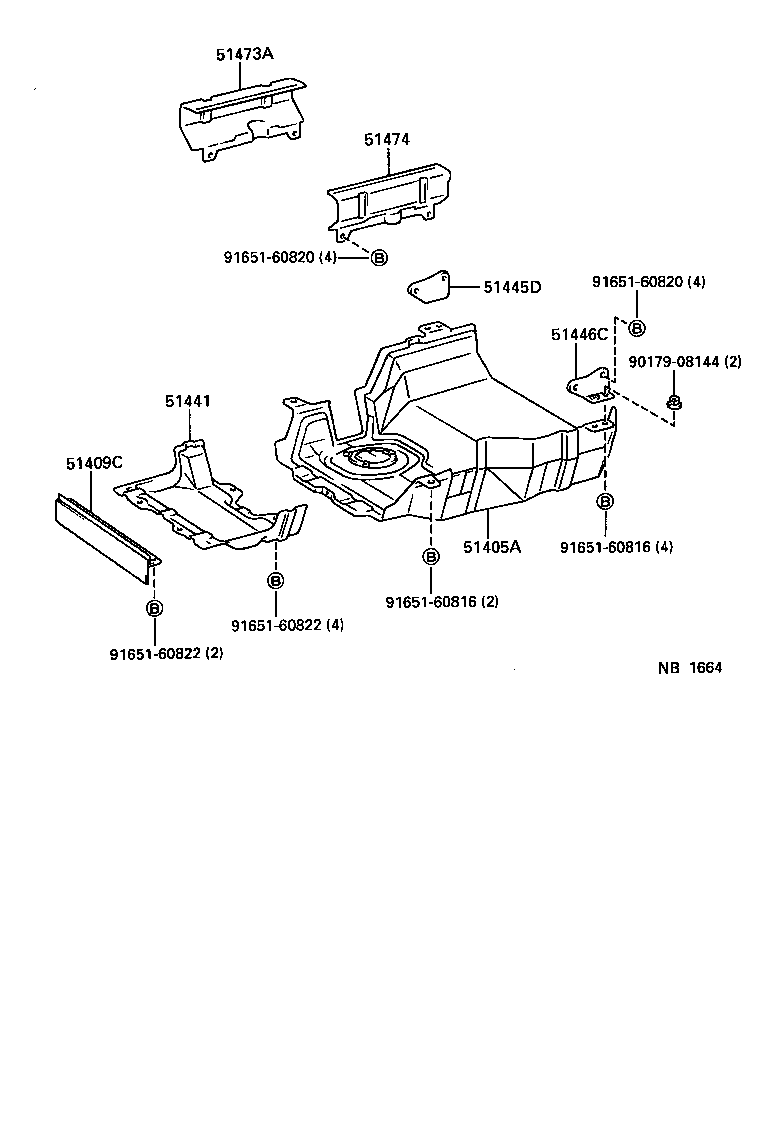

Click highlighted areas on diagram

diagram 51405A 51409C 51441 51445D 51446C 51473A 51474 9017908144 9165160816 9165160816 9165160820 9165160820 9165160822 9165160822
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-25040

LY16#..DSL;LY12#,13#,15#,YY121,131..MTM

 1
51441 - COVER, ENGINE UNDER, NO.1
51440-25030

LY12#,13#,YY121,131

 1
51445D - BRACKET, ENGINE UNDER COVER, RH
51445-25060

LY12#,13#,15#,16#,YY121,131..CBR,DSL

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-25040

LY12#,13#,15#,16#,YY121,131..CBR,DSL

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-25010

LY20#,21#,YY201,211

 1
51473-25020

LY12#,13#,15#,16#,YY121,131

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51473-25020

LY12#,13#,15#,16#,YY121,131

 1
51474-25010

LY20#,21#,YY201,211

 1
Common parts
90179-08144
91651-60816
91651-60820
91651-60822
