LY121-TLMES (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )LY12#,13#,YY121,131

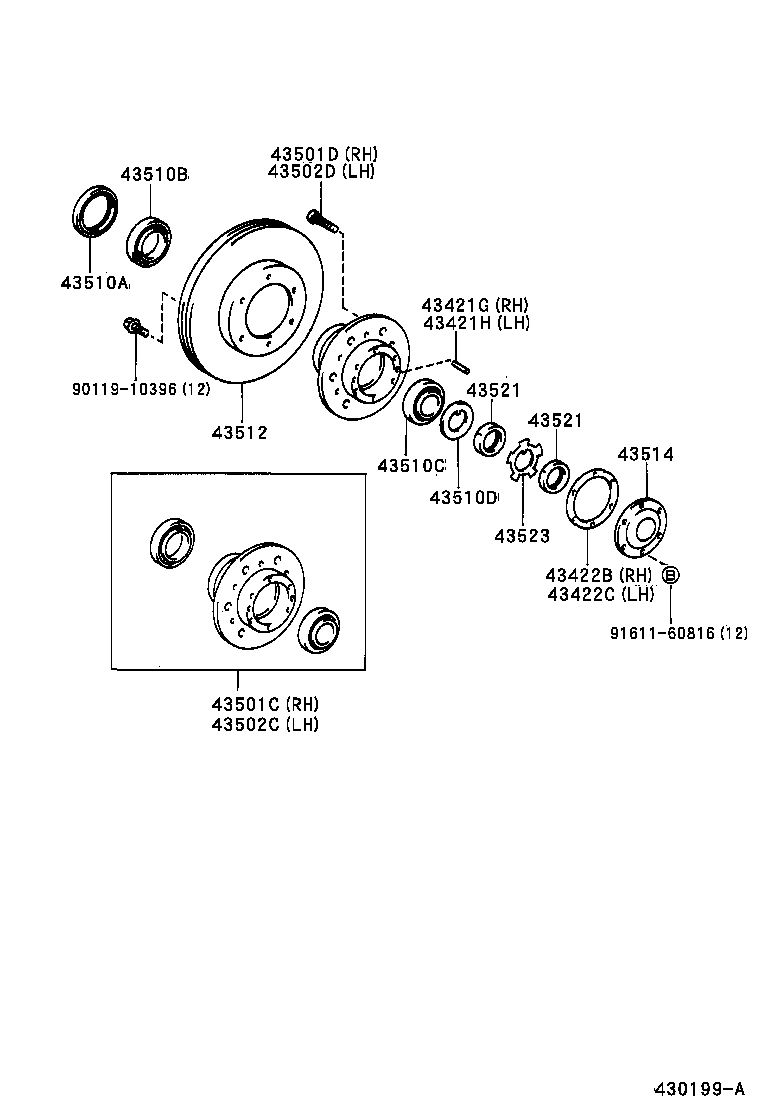

Click highlighted areas on diagram

diagram 43421G 43421H 43422B 43422C 43501C 43501D 43502C 43502D 43510A 43510B 43510C 43510D 43512 43514 43521 43521 43523 9011910396 9161160816
Part # Description Qty Price
43421G - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
90250-07057

LY12#,13#,15#,16#,YY121,131

 2
43421H - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
90250-07057

LY12#,13#,15#,16#,YY121,131

 2
43422B - GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH
43422-60010

LY12#,13#,15#,16#,YY121,131

 1
43422C - GASKET, FRONT AXLE OUTER SHAFT FLANGE, LH
43422-60010

LY12#,13#,15#,16#,YY121,131

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43511-39015

LY12#,13#,15#,16#,YY121,131

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

LY12#,13#,15#,16#,YY121,131

 6
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43511-39015

LY12#,13#,15#,16#,YY121,131

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

LY12#,13#,15#,16#,YY121,131

 6
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-66001

LY12#,13#,15#,16#,YY121,131

 2
90311-50003

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90366-35004

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
90080-36064

LY12#,13#,15#,16#,YY121,131

TIMKEN

 2
90368-49084

LY12#,13#,15#,16#,YY121,131

KOYO

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-45087

LY12#,13#,15#,16#,YY121,131

KOYO

 2
90080-36067

LY12#,13#,15#,16#,YY121,131

TIMKEN

 2
90368-22007

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-42030

LY12#,13#,15#,16#,YY121,131

 2
90214-23004

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43512 - DISC, FRONT
43512-25020

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43512-26081

LY121,131,151,161,YY121,131

 2
43514 - CAP, FRONT HUB GREASE
43514-25010

LY20#,21#,YY201,211..T1,T2,T3,TW2

 2
43514-35020

LY12#,13#,YY121,131

 2
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

LY12#,13#,15#,16#,YY121,131

 4
43521 - NUT, FRONT WHEEL ADJUSTING
43521-60011

LY12#,13#,15#,16#,YY121,131

 4
43523 - WASHER, FRONT WHEEL ADJUSTING LOCK
90215-42025

LY12#,13#,15#,16#,YY121,131

 2
Common parts
90119-10396
91611-60816
