LY121-TLMES (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

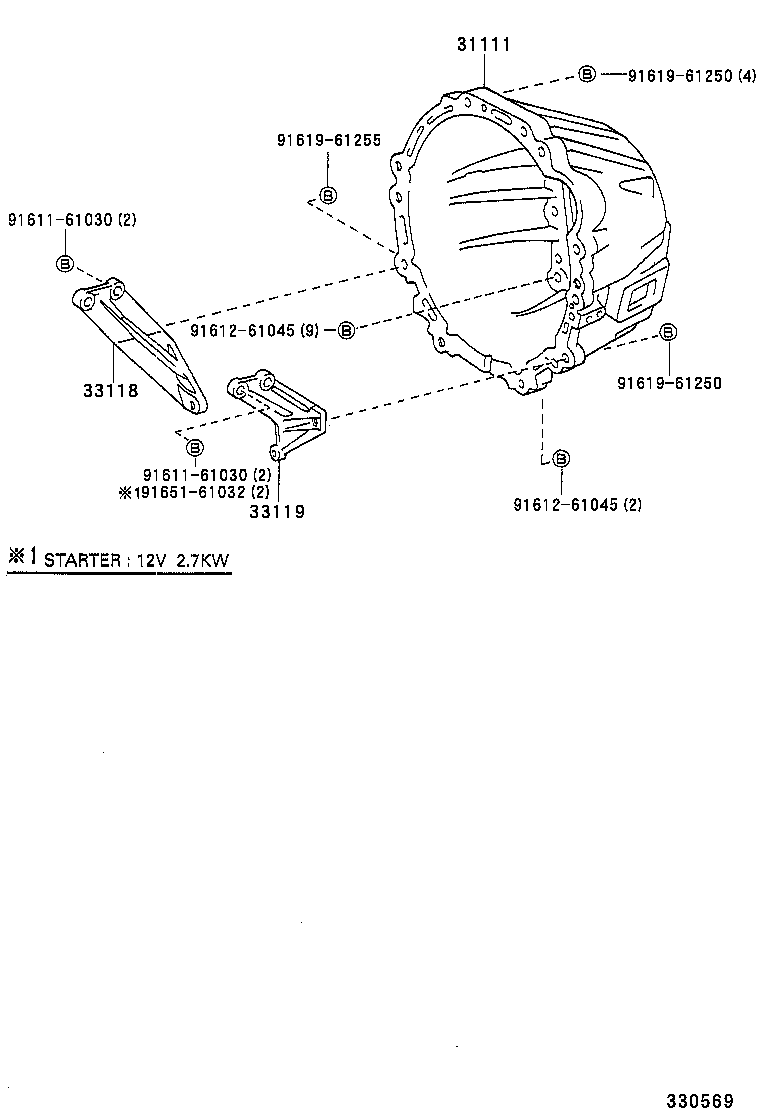

ILLUST NO. 1 OF 2(9610- )LY12#,13#..MTM

Click highlighted areas on diagram

R452

diagram 31111 33118 33119 9161161030 9161161030 9161261045 9161261045 9161961250 9161961250 9161961255 9165161032
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-25030

LY201..WT;LY201..ST..15T;LY12#,13#,202,21#..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25050

LY20#,21#..MTM

 1
33118-25020

LY10#,11#,12#,13#,15#,16#..MTM..DSL

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-26010

LY121,131,151,161..MTM

 1
33119-25060

LY12#,13#,15#,16#..MTM..DSL

 1
33119-25051

LY20#,21#..MTM

 1
Common parts
91611-61030
91612-61045
91619-61250
91619-61255
91651-61032
