LY112-TLPDS3 (1999)

Toyota Dyna 150/Toyoace G15

Production May 1999 - Jul 2001
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

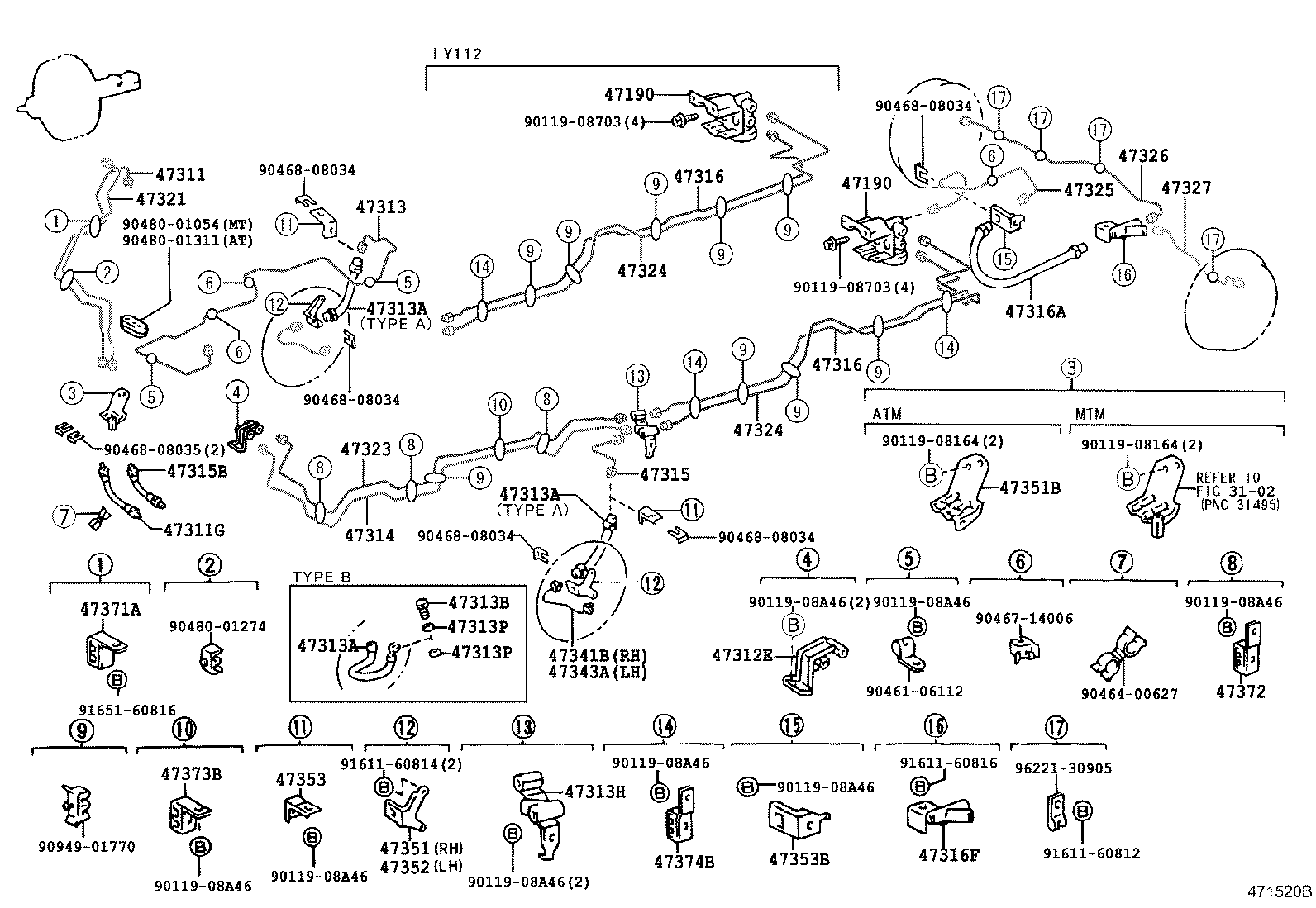

ILLUST NO. 1 OF 2(9905- )LY102,112,YY101

Click highlighted areas on diagram

diagram 3102 47190 47190 47311 47311G 47312E 47313 47313A 47313A 47313A 47313B 47313H 47313P 47313P 47314 47315 47315B 47316 47316 47316A 47316F 47321 47323 47324 47324 47325 47326 47327 47341B 47343A 47351 47351B 47352 47353 47353B 47371A 47372 47373B 47374B 9011908164 9011908164 9011908703 9011908703 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046106112 9046400627 9046714006 9046808034 9046808034 9046808034 9046808034 9046808034 9046808035 9048001054 9048001274 9048001311 9094901770 9161160812 9161160814 9161160816 9165160816 9622130905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25371

LY102,112,122,132,152,162,YY101,121,131

 1
47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02B32

LY102,112,YY101

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-13058

LY102,112,122,132,152,162,YY101,121,131

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25161

LY102,112,YY101

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E77

LY102,112,YY101

TYPE A

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E77

LY102,112,YY101

TYPE A

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02E77

LY102,112,YY101

TYPE A

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25201

LY102,112,YY101

 1
47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE)
90947-02B33

LY102,112,YY101

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25231

LY102,112,122,132,152,162,YY101,121,131

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25161

LY102,112,YY101

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-25120

LY102,112,132,162..ATM

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47373-25010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47372-25010

LY10#,11#,12#,13#,15#,16#,20#,YY101,121,131,201

 2
Common parts
90119-08164
90119-08703
90119-08A46
90461-06112
90464-00627
90467-14006
90468-08034
90468-08035
90480-01054
90480-01274
90480-01311
90949-01770
91611-60812
91611-60814
91611-60816
91651-60816
96221-30905
Linked diagrams
3102
