LY112-TLPDS3 (1999)

Toyota Dyna 150/Toyoace G15

Production May 1999 - Jul 2001

Engine 5L

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9905- )5L

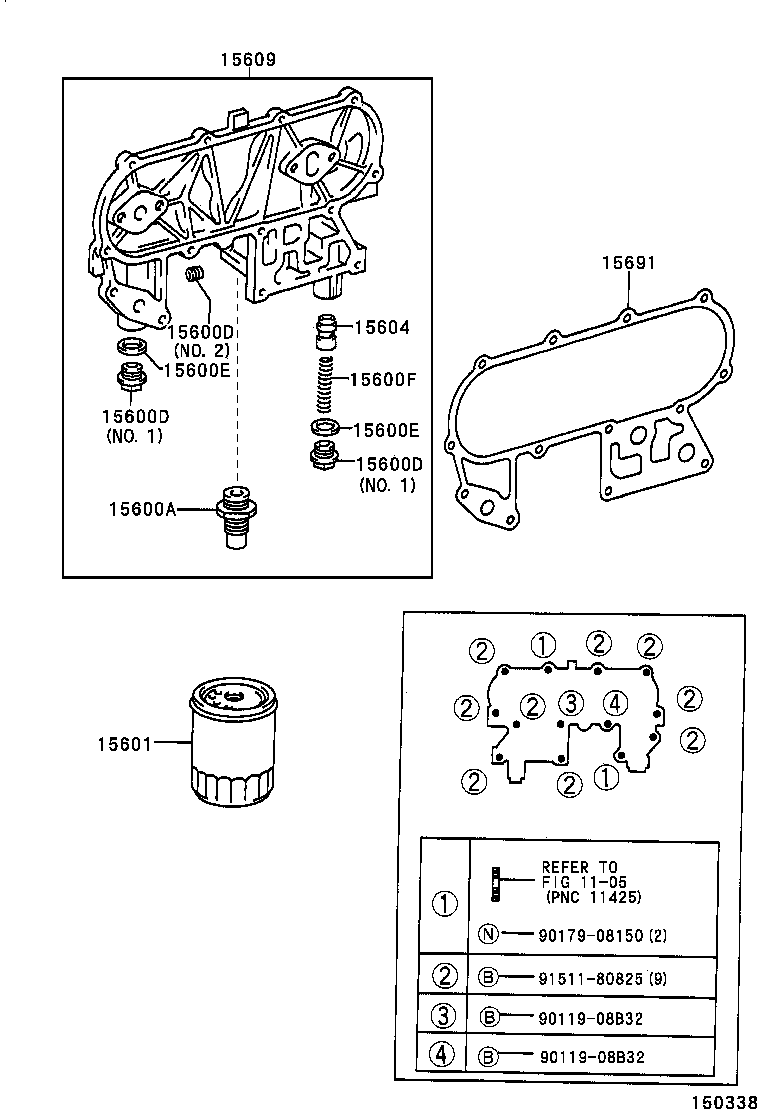

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
15600A - UNION(FOR OIL FILTER)
15116-54021	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
15600D - PLUG(FOR OIL FILTER)
90341-18015	5L..LY102,112,122,132,152,162,202,212 NO.1	05/1999 - 12/2999	2
90344-51005	5L..LY102,112,122,132,152,162,202,212 NO.2	05/1999 - 12/2999	1
15600D - PLUG(FOR OIL FILTER)
90341-18015	5L..LY102,112,122,132,152,162,202,212 NO.1	05/1999 - 12/2999	2
90344-51005	5L..LY102,112,122,132,152,162,202,212 NO.2	05/1999 - 12/2999	1
15600D - PLUG(FOR OIL FILTER)
90341-18015	5L..LY102,112,122,132,152,162,202,212 NO.1	05/1999 - 12/2999	2
90344-51005	5L..LY102,112,122,132,152,162,202,212 NO.2	05/1999 - 12/2999	1
15601 - FILTER SUB-ASSY, OIL
90915-30002	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54072	5L..LY102,112,122,132,152,162,202,212	05/1999 - 12/2999	1
Common parts
90119-08B32
90179-08150
91511-80825
Linked diagrams
1105
