LY111-TKMDS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

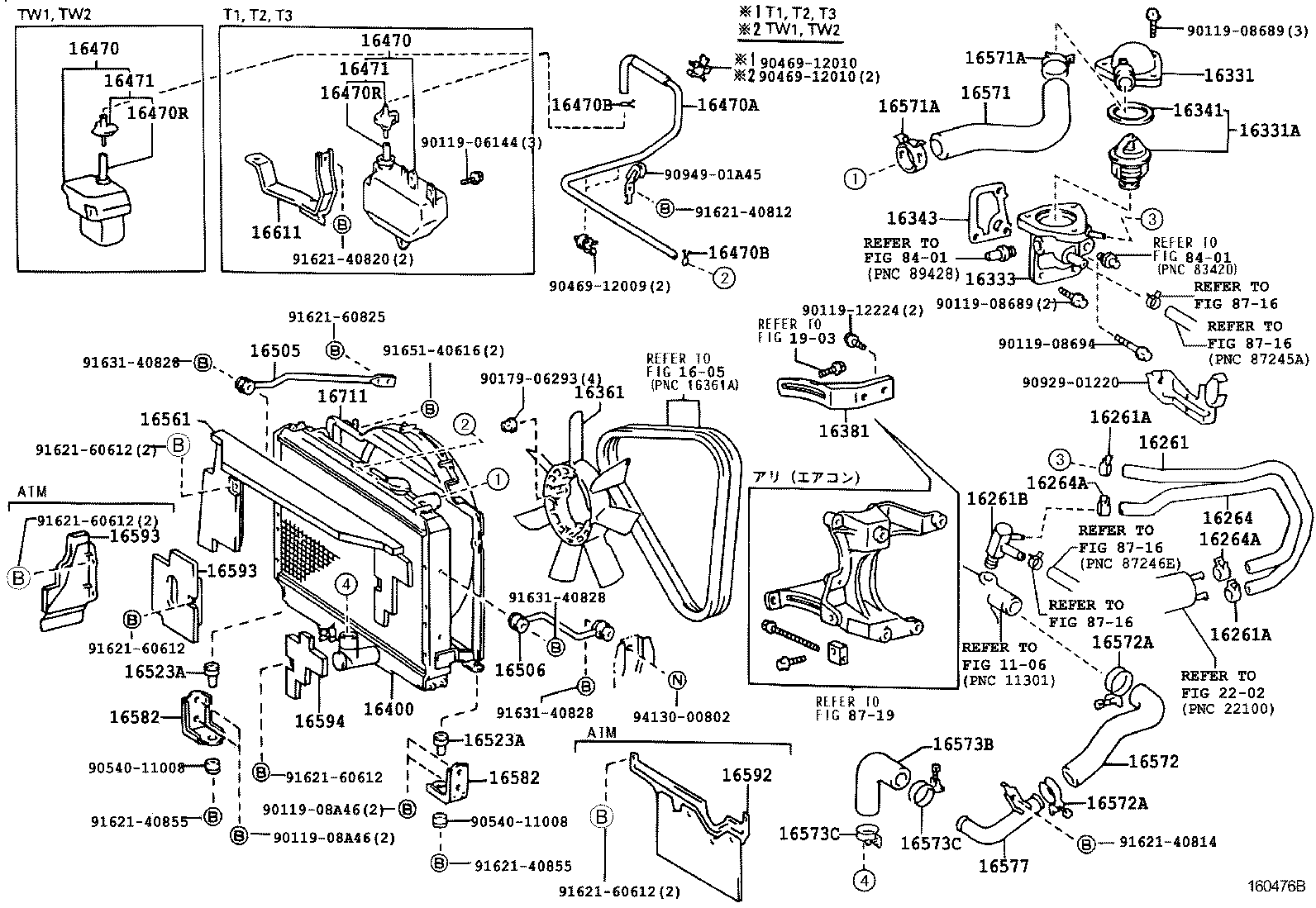

ILLUST NO. 1 OF 2(9610- )3L,5L..LY10#,11#

Click highlighted areas on diagram

diagram 1106 1605 16261 16261A 16261A 16261B 16264 16264A 16264A 16331 16331A 16333 16341 16343 16361 16381 16400 16470 16470 16470A 16470B 16470B 16470R 16470R 16471 16471 16505 16506 16523A 16523A 16561 16571 16571A 16571A 16572 16572A 16572A 16573B 16573C 16573C 16577 16582 16582 16592 16593 16593 16594 16611 16711 1903 2202 8401 8401 8716 8716 8716 8716 8719 9011906144 9011908689 9011908689 9011908694 9011908A46 9011908A46 9011912224 9017906293 9046912009 9046912010 9046912010 9054011008 9054011008 9092901220 9094901A45 9162140812 9162140814 9162140820 9162140855 9162140855 9162160612 9162160612 9162160612 9162160612 9162160612 9162160825 9163140828 9163140828 9163140828 9165140616 9413000802
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-54090

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-54037

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-54080

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
16331 - OUTLET, WATER
16331-54090

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
16333 - HOUSING, WATER OUTLET
16333-54113

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM

 1
16341 - GASKET, WATER OUTLET
16341-35010

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
16343 - GASKET, WATER OUTLET HOUSING
16343-54040

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
16361 - FAN
16361-54070

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM

 1
16381 - BAR, FAN BELT ADJUSTING
16381-54060

3L..LY211;3L..LY101,111,201..MTM

厚さ=3.2

 1
16381-54061

3L..LY211;3L..LY101,111,201..MTM

厚さ=4.5

 1
16400 - RADIATOR ASSY
16400-5B191

3L,5L..LY10#,11#..MTM

 1
16400-5B190

3L..LY101,111..MTM

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54280

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54280

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16567-58010

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4

長さ=1670

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54250

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54250

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4

 1
16505 - SUPPORT SUB-ASSY, RADIATOR, RH
16505-54020

3L,5L..LY10#,11#

 1
16506 - SUPPORT SUB-ASSY, RADIATOR, LH
16506-54010

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#

 1
16523A - CUSHION, RADIATOR SUPPORT
53210-36010

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#

 2
16523A - CUSHION, RADIATOR SUPPORT
53210-36010

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#

 2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-71010

3L,5L..LY10#,11#,15#,20#,21#

 1
16571 - HOSE, RADIATOR, INLET
16571-54390

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-54430

3L,5L..LY10#,11#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

3L..LY101,111,121,131,151,161,201,211

ﾗｼﾞｪｰﾀ側

 1
96111-10500

3L..LY101,111,121,131,151,161,201,211

ｴﾝｼﾞﾝ側

 1
90467-37002

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

ﾗｼﾞｪｰﾀ側

 1
90467-41005

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

ｴﾝｼﾞﾝ側

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

3L..LY101,111,121,131,151,161,201,211

ﾗｼﾞｪｰﾀ側

 1
96111-10500

3L..LY101,111,121,131,151,161,201,211

ｴﾝｼﾞﾝ側

 1
90467-37002

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

ﾗｼﾞｪｰﾀ側

 1
90467-41005

3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#

ｴﾝｼﾞﾝ側

 1
16573B - HOSE, RADIATOR, NO.3
16573-54110

3L,5L..LY10#,11#,12#,13#,15#,16#

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96111-10460

3L..LY101,111,121,131,151,161

 2
90467-37002

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96111-10460

3L..LY101,111,121,131,151,161

 2
90467-37002

3L,5L..LY10#,11#,12#,13#,15#,16#

 2
16577 - PIPE, RADIATOR, NO.7
16577-54160

3L,5L..LY10#,11#

 1
16582 - BRACKET, RADIATOR, NO.1
16582-54030

3L,5L..LY10#,11#

 2
16582 - BRACKET, RADIATOR, NO.1
16582-54030

3L,5L..LY10#,11#

 2
16593 - GUIDE, RADIATOR AIR, NO.1
16593-54070

3L,5L..LY10#,11#,15#..MTM

 1
16593 - GUIDE, RADIATOR AIR, NO.1
16593-54070

3L,5L..LY10#,11#,15#..MTM

 1
16594 - GUIDE, RADIATOR AIR, NO.2
16594-54090

3L,5L..LY10#,11#,15#

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-54130

3L,5L,3YP..LY10#,11#,12#,13#,15#,16#,20#,21#..T1,T2,T3,T4

 1
16711 - SHROUD, FAN
16711-54470

3L,5L..LY10#,11#

 1
Common parts
90119-06144
90119-08689
90119-08694
90119-08A46
90119-12224
90179-06293
90469-12009
90469-12010
90540-11008
90929-01220
90949-01A45
91621-40812
91621-40814
91621-40820
91621-40855
91621-60612
91621-60825
91631-40828
91651-40616
94130-00802
Linked diagrams
1106
1605
1903
2202
8401
8716
8719
