LY111-TGMDS (1996)
Toyota Dyna 150/Toyoace G15
(9610- )LY10#,11#,12#,13#,15#,16#..CBU,IV3

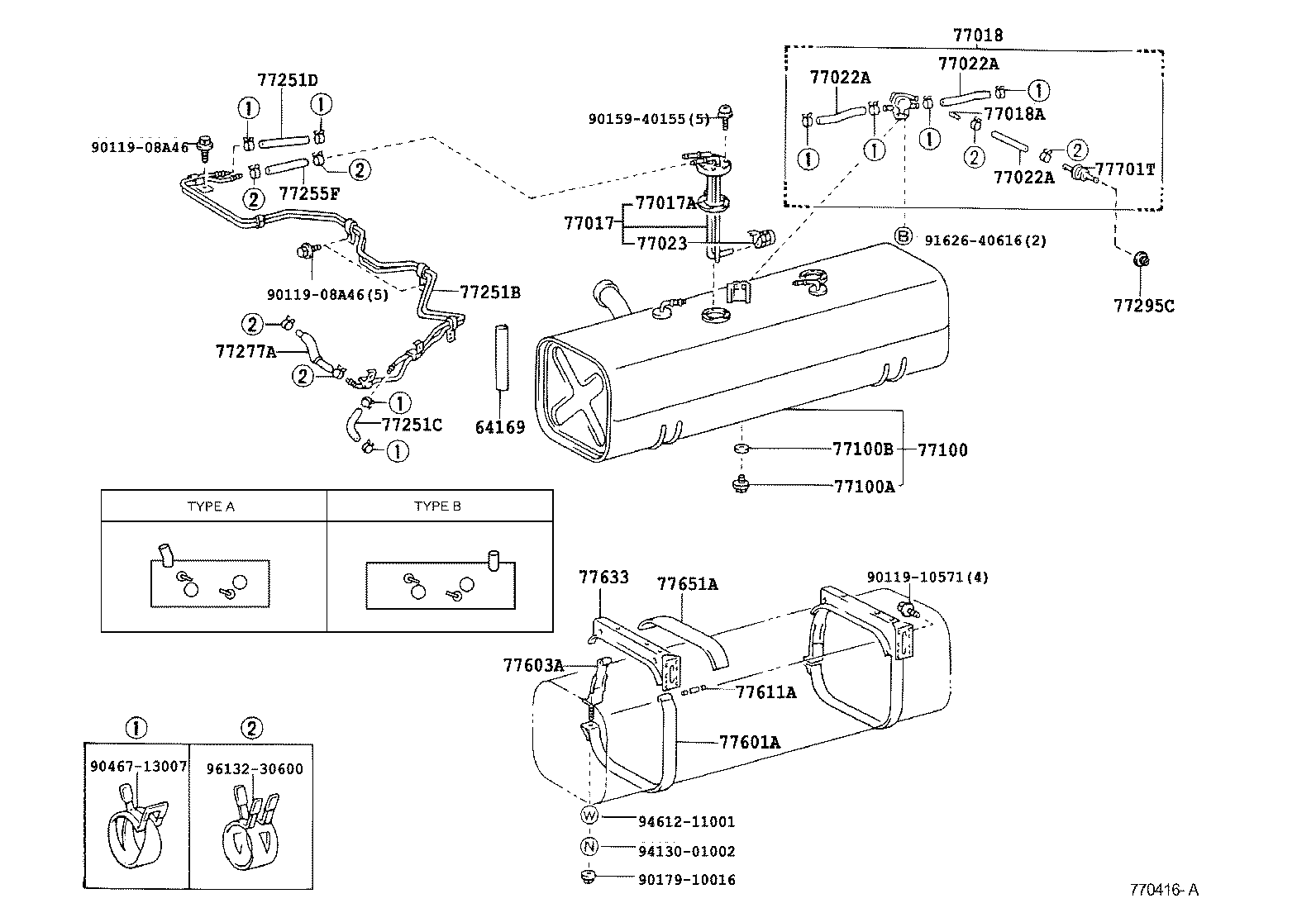

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-26121 |
LY10#,11#,12#,13#,15#,16#..DSL |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26140 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL |
1 | ||
| 77018A - ORIFICE, FUEL VAPOUR | ||||
| 90977-02001 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..CBR,DSL *H,L=160,内径=7.6 |
2 | ||
| 95333-06030 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL *H,L=300 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
LY10#,11#,12#,13#,15#,16#,20#,21#..DSL |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25320 |
LY201,YY201..T1;LY11#,13#,YY131..(T2,T3)..TB TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-26040 |
LY10#,11#..125..(CBU,IV3) |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 90447-14045 |
LY10#,11#..125..(CBU,IV3) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
LY10#,11#,12#,13#,15#,16#..DSL *H,L=150,内径=7.6 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
LY10#,11#,12#,13#,15#,16#..DSL *H,L=140 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12109 |
LY10#,11#,12#,13#,15#,16#..DSL 長さ=310 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
LY201,21#..T1,T2,T3,T4;LY10#,11#,12#,13#,15#,16#,202..DSL |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-26060 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26030 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-25010 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
4 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-25091 |
LY21#,YY211..(T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,YY101,121,131..CBR,DSL |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-26040 |
LY201,21#,YY201,211..(T1,T2,T3,T4)..(CBR,DSL);LY10#,11#,12#,13#,15#,16#,202,YY101,121,131..CBR,DSL |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
LY10#,11#,12#,13#,15#,16#,20#,21#..DSL |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90119-10571 | ||||
| 90159-40155 | ||||
| 90179-10016 | ||||
| 90467-13007 | ||||
| 91626-40616 | ||||
| 94130-01002 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
