LY102-PSMBS (1999)

Toyota Dyna 150/Toyoace G15

Production May 1999 - Jul 2001
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

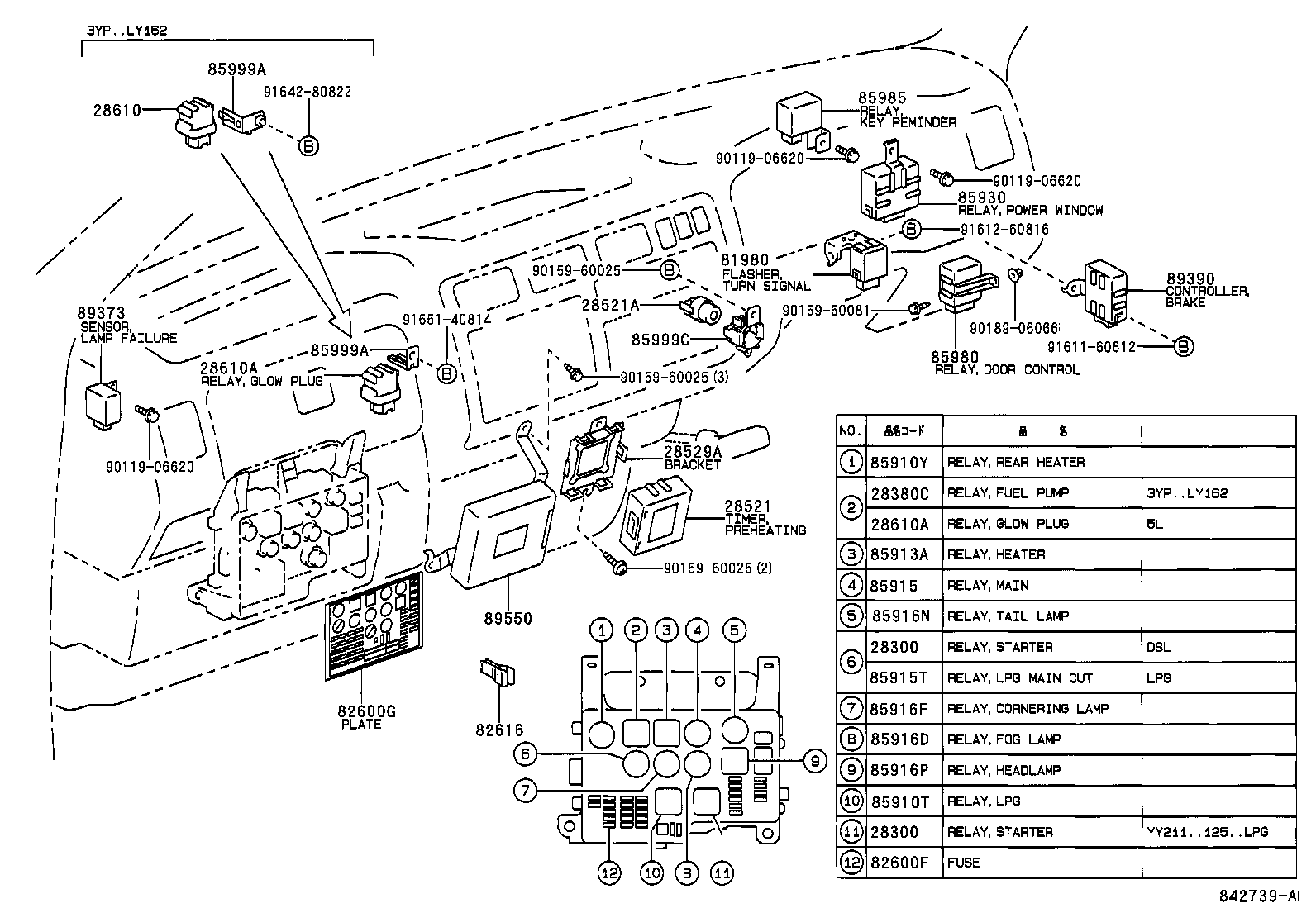

ILLUST NO. 4 OF 7(9905- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 28300 28300 28380C 28521 28521A 28529A 28610 28610A 28610A 81980 82600F 82600G 82616 85910T 85910Y 85913A 85915 85915T 85916D 85916F 85916N 85916P 85930 85980 85985 85999A 85999A 85999C 89373 89390 89550 9011906620 9011906620 9011906620 9015960025 9015960025 9015960025 9015960081 9018906066 9161160612 9161260816 9164280822 9165140814
Part # Description Qty Price
28300 - RELAY ASSY, STARTER
28300-46010

5L..LY102,112,122,132,152,162,202,212

 1
28300 - RELAY ASSY, STARTER
28300-46010

5L..LY102,112,122,132,152,162,202,212

 1
28521 - TIMER, PREHEATING
28521-54591

5L..LY102,112,122,132,152,162,202,212

 1
28610A - RELAY ASSY, GLOW PLUG(SUB)
28610-54360

5L..LY102,112,122,132,152,162,202,212

 1
28610A - RELAY ASSY, GLOW PLUG(SUB)
28610-54360

5L..LY102,112,122,132,152,162,202,212

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-25090

LY102,112,122,132,152,162,202,212,YY101,121,131,201,211

 1
82600F - FUSE, FUSE BLOCK
90982-09007

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色

 1
90982-09010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

15A,ﾐﾆ ﾋｭｰｽﾞ,青

 1
90982-09013

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

30A,ﾐﾆ ﾋｭｰｽﾞ,緑

 1
90982-09008

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶

 1
90982-09009

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

10A,ﾐﾆ ﾋｭｰｽﾞ,赤

 1
90982-09011

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

20A,ﾐﾆ ﾋｭｰｽﾞ,黄

 1
82600G - PLATE, CAUTION(FOR FUSE)
82683-25100

LY102,112,122,132,152,162,202,212..DSL

 1
82616 - PULLER, FUSE
82616-20010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85910Y - RELAY, REAR HEATER
90987-02004

LY10#,11#,13#,15#,16#,201,21#,YY101,131,201,211..TW1,TW2

 1
85913A - RELAY, HEATER CONTROL
90987-04002

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85915 - RELAY, MAIN
90987-02004

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85916D - RELAY, FOG LAMP
90987-02004

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85916F - RELAY, CORNERING LAMP
90987-02004

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85916N - RELAY, TAIL LAMP
90987-02004

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85916P - RELAY, HEADLAMP
90987-02006

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85930 - RELAY ASSY, POWER WINDOW
85930-25011

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85980 - RELAY ASSY, DOOR CONTROL
85980-25011

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
85985 - RELAY, KEY REMINDER
80590-26011

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
89373 - SENSOR, LAMP FAILURE INDICATOR
89370-37010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
89390 - RELAY, BRAKE WARNING
89390-25020

LY10#,11#,12#,13#,15#,16#,20#,21#..DSL

 1
Common parts
90119-06620
90159-60025
90159-60081
90189-06066
91611-60612
91612-60816
91642-80822
91651-40814
