LY102-PSMBS (1999)
Toyota Dyna 150/Toyoace G15

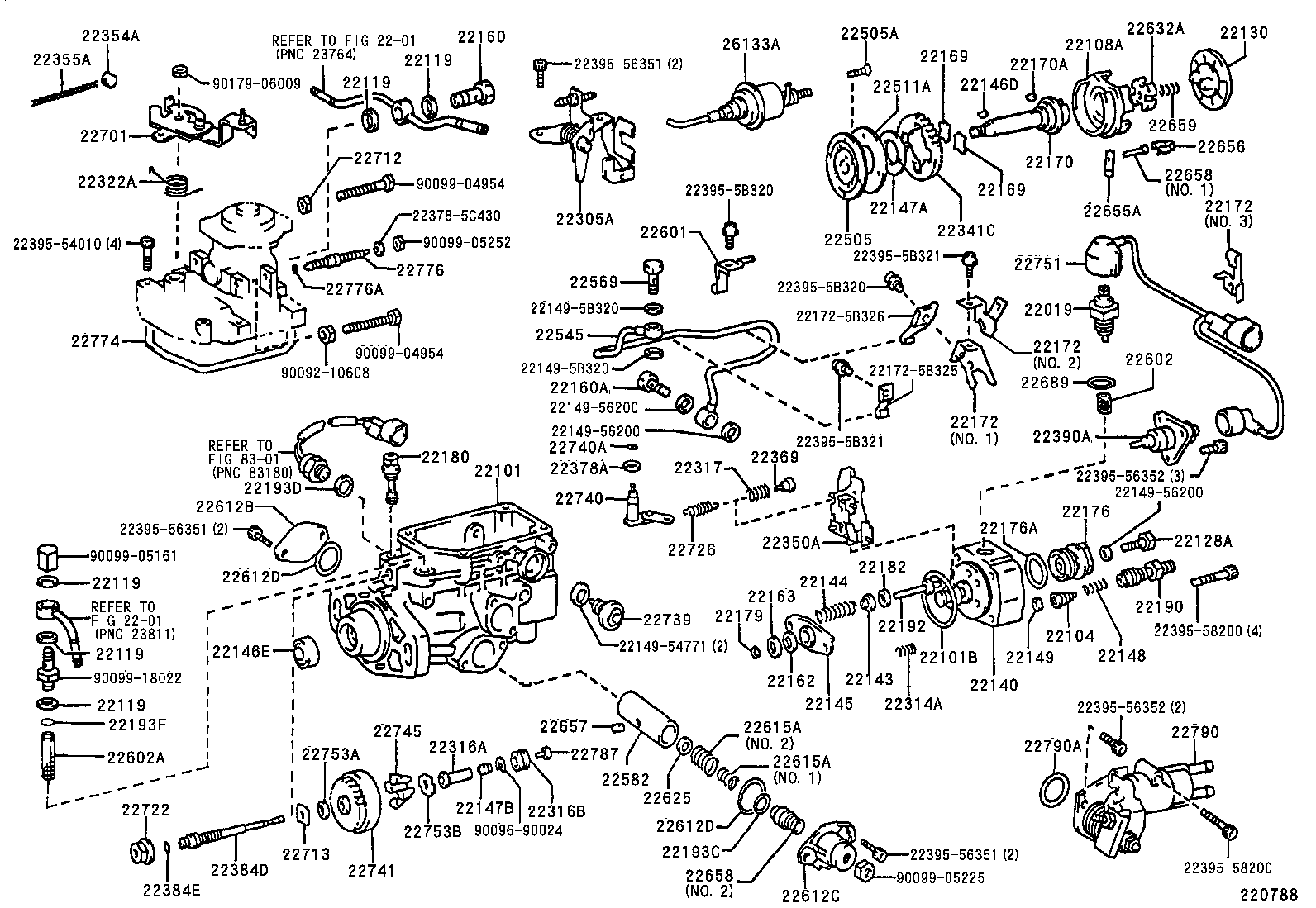

ILLUST NO. 1 OF 2(9905-0007)5L..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22019 - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A511 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-5B580 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22140-5B810 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22160A - SCREW SUB-ASSY, OVER FLOW, NO.2 | ||||
| 22160-5B320 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-6A510 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22170-5D200 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5B324 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22172-5B327 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22172-64160 |
5L..LY102,112,122,132,152,162,202,212 NO.3 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5B324 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22172-5B327 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22172-64160 |
5L..LY102,112,122,132,152,162,202,212 NO.3 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5B324 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22172-5B327 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22172-64160 |
5L..LY102,112,122,132,152,162,202,212 NO.3 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54011 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.0 |
1 | ||
| 22179-54013 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.2 |
1 | ||
| 22179-54012 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.1 |
1 | ||
| 22179-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.9 |
1 | ||
| 22179-54014 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.3 |
1 | ||
| 22179-54017 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.6 |
1 | ||
| 22179-54015 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.4 |
1 | ||
| 22179-54018 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.7 |
1 | ||
| 22179-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.9 |
1 | ||
| 22179-54019 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.8 |
1 | ||
| 22179-54016 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.5 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-55050 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=0.5 |
2 | ||
| 22184-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.0 |
2 | ||
| 22185-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.2 |
2 | ||
| 22187-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.8 |
2 | ||
| 22183-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=0.8 |
2 | ||
| 22186-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.5 |
2 | ||
| 22188-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.0 |
2 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
4 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-17020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22193D - RING, O(FOR REVOLUTION DETECTOR) | ||||
| 22193-64750 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-6E102 |
5L..LY102,112,122,132,152,162,202,212 内径=0.90 |
1 | ||
| 22316-6E070 |
5L..LY102,112,122,132,152,162,202,212 内径=0.85 |
1 | ||
| 22316-6E101 |
5L..LY102,112,122,132,152,162,202,212 内径=0.80 |
1 | ||
| 22316-6E103 |
5L..LY102,112,122,132,152,162,202,212 内径=0.95 |
1 | ||
| 22316-6E104 |
5L..LY102,112,122,132,152,162,202,212 内径=1.00 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54470 |
5L..LY102,112,122,132,152,162,202,212..MTM ｺｲﾙ巻数=0.15,長さ=7.0 |
1 | ||
| 22317-5B790 |
5L..LY102,112,122,132,152,162,202,212..MTM ｺｲﾙ巻数=0.15,長さ=6.75 |
1 | ||
| 22317-54870 |
5L..LY102,112,122,132,152,162,202,212..MTM ｺｲﾙ巻数=0.15,長さ=6.5 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54730 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-67080 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-5B320 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22545 - NIPPLE, SWIVEL(FOR INJECTION PUMP INLET) | ||||
| 22545-5B321 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22569 - SCREW, OVERFLOW | ||||
| 22569-5B320 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22582 - PISTON ASSY, TIMER | ||||
| 22582-5B520 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-5B360 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-56350 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-5B374 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.14,長さ=34.3,NO.1 |
1 | ||
| 22615-17030 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=1.70,長さ=27.9,NO.2 |
1 | ||
| 22615-5B371 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.11,長さ=35.5,NO.1 |
1 | ||
| 22615-5B373 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.13,長さ=34.6,NO.1 |
1 | ||
| 22615-5C153 |
5L..LY102,112,122,132,152,162,202,212..MTM ﾊﾞﾈ定数=0.12,長さ=35.9 |
1 | ||
| 22615-18020 |
5L..LY102,112,122,132,152,162,202,212 ﾊﾞﾈ定数=0.15,長さ=32.5 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-5B374 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.14,長さ=34.3,NO.1 |
1 | ||
| 22615-17030 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=1.70,長さ=27.9,NO.2 |
1 | ||
| 22615-5B371 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.11,長さ=35.5,NO.1 |
1 | ||
| 22615-5B373 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.13,長さ=34.6,NO.1 |
1 | ||
| 22615-5C153 |
5L..LY102,112,122,132,152,162,202,212..MTM ﾊﾞﾈ定数=0.12,長さ=35.9 |
1 | ||
| 22615-18020 |
5L..LY102,112,122,132,152,162,202,212 ﾊﾞﾈ定数=0.15,長さ=32.5 |
1 | ||
| 22625 - WASHER, TIMER SENSOR ADJUSTING | ||||
| 22625-17020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-5B170 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22632-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-5B640 |
5L..LY102,112,122,132,152,162,202,212..MTM ﾏｰｸ 659 |
1 | ||
| 22701-5B641 |
5L..LY102,112,122,132,152,162,202,212..MTM ﾏｰｸ 660 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.25 |
1 | ||
| 22717-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.85 |
1 | ||
| 22716-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.65 |
1 | ||
| 22713-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.05 |
1 | ||
| 22715-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.45 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-5B710 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-64820 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-5B320 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.4 |
1 | ||
| 22787-54031 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.8 |
1 | ||
| 22787-64640 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=4.1 |
1 | ||
| 22787-64641 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.0 |
1 | ||
| 22787-54029 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.6 |
1 | ||
| 22787-64680 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=4.2 |
1 | ||
| 22787-54033 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=4.0 |
1 | ||
| 22787-64643 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.2 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 26133A - ACTUATOR SET, IDLE-UP | ||||
| 26133-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22149-5B320 | ||||
| 22172-5B325 | ||||
| 22172-5B326 | ||||
| 22378-5C430 | ||||
| 22395-54010 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22395-5B320 | ||||
| 22395-5B321 | ||||
| 90092-10608 | ||||
| 90096-90024 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 8301 | ||||

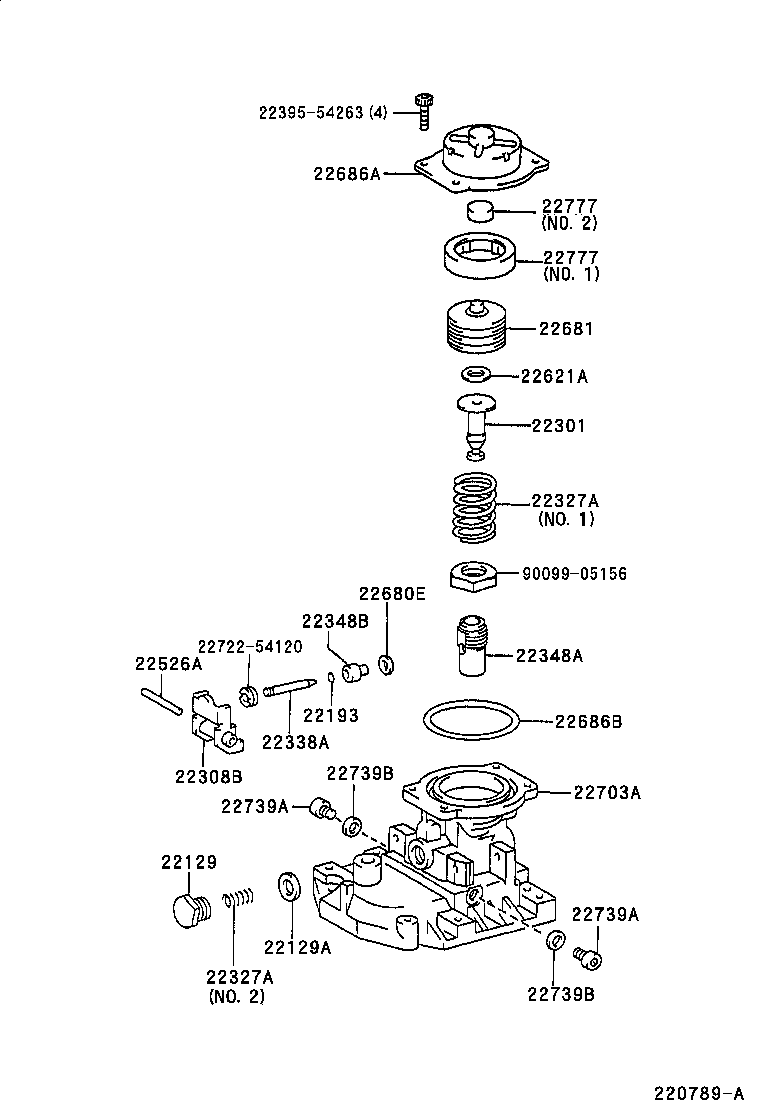

ILLUST NO. 2 OF 2(9905- )5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22129 - PLUG, SCREW | ||||
| 22129-55110 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) | ||||
| 22149-54800 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22301 - ROD SUB-ASSY, PUSH | ||||
| 22301-5B581 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-5B650 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-54800 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22327-64400 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-54800 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22327-64400 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22338A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-64400 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22624-54804 |
5L..LY102,112,122,132,152,162,202,212..MTM 厚さ=0.8 |
1 | ||
| 22624-54800 |
5L..LY102,112,122,132,152,162,202,212..MTM 厚さ=0.6 |
1 | ||
| 22621-54010 |
5L..LY102,112,122,132,152,162,202,212..MTM 厚さ=0.5 |
1 | ||
| 22624-54010 |
5L..LY102,112,122,132,152,162,202,212 厚さ=0.2 |
1 | ||
| 22624-54803 |
5L..LY102,112,122,132,152,162,202,212 厚さ=0.7 |
1 | ||
| 22624-54805 |
5L..LY102,112,122,132,152,162,202,212 厚さ=0.9 |
1 | ||
| 22622-54010 |
5L..LY102,112,122,132,152,162,202,212 厚さ=1.0 |
1 | ||
| 22624-54806 |
5L..LY102,112,122,132,152,162,202,212 厚さ=0.3 |
1 | ||
| 22680E - WASHER, COPPER PLATE | ||||
| 90099-01473 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22681 - BELLOWS SUB-ASSY, PNEUMATIC | ||||
| 22681-6A570 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22686A - COVER, PNEUMATIC BELLOWS | ||||
| 22682-54351 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22686B - RING, O(FOR BELLOWS COVER) | ||||
| 90099-14057 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-5B121 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
5L..LY102,112,122,132,152,162,202,212 |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
5L..LY102,112,122,132,152,162,202,212 |
2 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22149-6D450 |
5L..LY102,112,122,132,152,162,202,212 |
2 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22149-6D450 |
5L..LY102,112,122,132,152,162,202,212 |
2 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22777-64410 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54120 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22777-64410 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| Common parts | ||||
| 22395-54263 | ||||
| 22722-54120 | ||||
| 90099-05156 | ||||

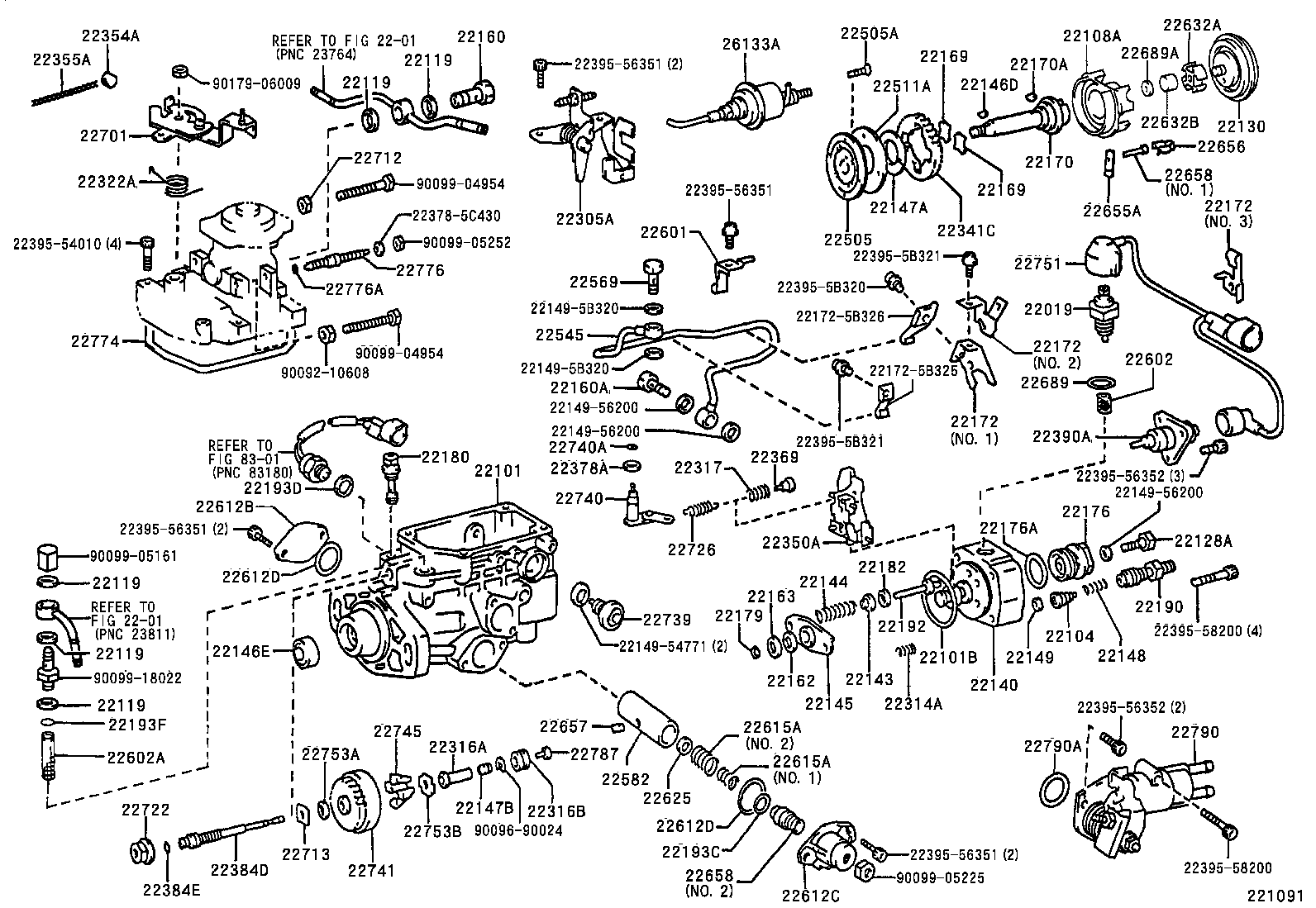

ILLUST NO. 1 OF 2(0007- )5L..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22019 - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A511 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-5B580 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22140-5B810 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22160A - SCREW SUB-ASSY, OVER FLOW, NO.2 | ||||
| 22160-5B320 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-6A510 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22170-5D200 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5B324 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22172-5B327 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22172-64160 |
5L..LY102,112,122,132,152,162,202,212 NO.3 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5B324 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22172-5B327 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22172-64160 |
5L..LY102,112,122,132,152,162,202,212 NO.3 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5B324 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22172-5B327 |
5L..LY102,112,122,132,152,162,202,212 NO.1 |
1 | ||
| 22172-64160 |
5L..LY102,112,122,132,152,162,202,212 NO.3 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54011 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.0 |
1 | ||
| 22179-54013 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.2 |
1 | ||
| 22179-54012 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.1 |
1 | ||
| 22179-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.9 |
1 | ||
| 22179-54014 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.3 |
1 | ||
| 22179-54017 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.6 |
1 | ||
| 22179-54015 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.4 |
1 | ||
| 22179-54018 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.7 |
1 | ||
| 22179-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.9 |
1 | ||
| 22179-54019 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.8 |
1 | ||
| 22179-54016 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.5 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-55050 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=0.5 |
2 | ||
| 22184-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.0 |
2 | ||
| 22185-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.2 |
2 | ||
| 22187-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.8 |
2 | ||
| 22183-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=0.8 |
2 | ||
| 22186-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.5 |
2 | ||
| 22188-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=2.0 |
2 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
4 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-17020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22193D - RING, O(FOR REVOLUTION DETECTOR) | ||||
| 22193-64750 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-6E102 |
5L..LY102,112,122,132,152,162,202,212 内径=0.90 |
1 | ||
| 22316-6E070 |
5L..LY102,112,122,132,152,162,202,212 内径=0.85 |
1 | ||
| 22316-6E101 |
5L..LY102,112,122,132,152,162,202,212 内径=0.80 |
1 | ||
| 22316-6E103 |
5L..LY102,112,122,132,152,162,202,212 内径=0.95 |
1 | ||
| 22316-6E104 |
5L..LY102,112,122,132,152,162,202,212 内径=1.00 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54470 |
5L..LY102,112,122,132,152,162,202,212..MTM ｺｲﾙ巻数=0.15,長さ=7.0 |
1 | ||
| 22317-5B790 |
5L..LY102,112,122,132,152,162,202,212..MTM ｺｲﾙ巻数=0.15,長さ=6.75 |
1 | ||
| 22317-54870 |
5L..LY102,112,122,132,152,162,202,212..MTM ｺｲﾙ巻数=0.15,長さ=6.5 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54730 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-67080 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#..MTM |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-5B320 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22545 - NIPPLE, SWIVEL(FOR INJECTION PUMP INLET) | ||||
| 22545-5B321 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22569 - SCREW, OVERFLOW | ||||
| 22569-5B320 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22582 - PISTON ASSY, TIMER | ||||
| 22582-5B520 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-5B360 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-56350 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-5B374 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.14,長さ=34.3,NO.1 |
1 | ||
| 22615-17030 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=1.70,長さ=27.9,NO.2 |
1 | ||
| 22615-5B371 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.11,長さ=35.5,NO.1 |
1 | ||
| 22615-5B373 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.13,長さ=34.6,NO.1 |
1 | ||
| 22615-5C153 |
5L..LY102,112,122,132,152,162,202,212..MTM ﾊﾞﾈ定数=0.12,長さ=35.9 |
1 | ||
| 22615-18020 |
5L..LY102,112,122,132,152,162,202,212 ﾊﾞﾈ定数=0.15,長さ=32.5 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-5B374 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.14,長さ=34.3,NO.1 |
1 | ||
| 22615-17030 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=1.70,長さ=27.9,NO.2 |
1 | ||
| 22615-5B371 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.11,長さ=35.5,NO.1 |
1 | ||
| 22615-5B373 |
3L,5L..LY102,112,132,16#,212..MTM;3L,5L..LY101,111,12#,131,15#,20#,211..CBU,IV3 ﾊﾞﾈ定数=0.13,長さ=34.6,NO.1 |
1 | ||
| 22615-5C153 |
5L..LY102,112,122,132,152,162,202,212..MTM ﾊﾞﾈ定数=0.12,長さ=35.9 |
1 | ||
| 22615-18020 |
5L..LY102,112,122,132,152,162,202,212 ﾊﾞﾈ定数=0.15,長さ=32.5 |
1 | ||
| 22625 - WASHER, TIMER SENSOR ADJUSTING | ||||
| 22625-17020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-5B170 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22632-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22632B - SPACER, INJECTION PUMP COUPLING | ||||
| 90099-70002 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
5L..LY102,112,122,132,152,162,202,212 NO.2 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22689A - SPACER, INJECTION PUMP COUPLING | ||||
| 22689-5B170 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-5B640 |
5L..LY102,112,122,132,152,162,202,212..MTM ﾏｰｸ 659 |
1 | ||
| 22701-5B641 |
5L..LY102,112,122,132,152,162,202,212..MTM ﾏｰｸ 660 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.25 |
1 | ||
| 22717-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.85 |
1 | ||
| 22716-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.65 |
1 | ||
| 22713-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.05 |
1 | ||
| 22715-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 厚さ=1.45 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-5B710 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-64820 |
5L..LY102,112,122,132,152,162,202,212..MTM |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
4 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-5B320 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.4 |
1 | ||
| 22787-54031 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.8 |
1 | ||
| 22787-64640 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=4.1 |
1 | ||
| 22787-64641 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.0 |
1 | ||
| 22787-54029 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.6 |
1 | ||
| 22787-64680 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=4.2 |
1 | ||
| 22787-54033 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=4.0 |
1 | ||
| 22787-64643 |
3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21# 長さ=3.2 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| 26133A - ACTUATOR SET, IDLE-UP | ||||
| 26133-5B640 |
5L..LY102,112,122,132,152,162,202,212 |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22149-5B320 | ||||
| 22172-5B325 | ||||
| 22172-5B326 | ||||
| 22378-5C430 | ||||
| 22395-54010 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22395-5B320 | ||||
| 22395-5B321 | ||||
| 90092-10608 | ||||
| 90096-90024 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
