LY101-TLMDS (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

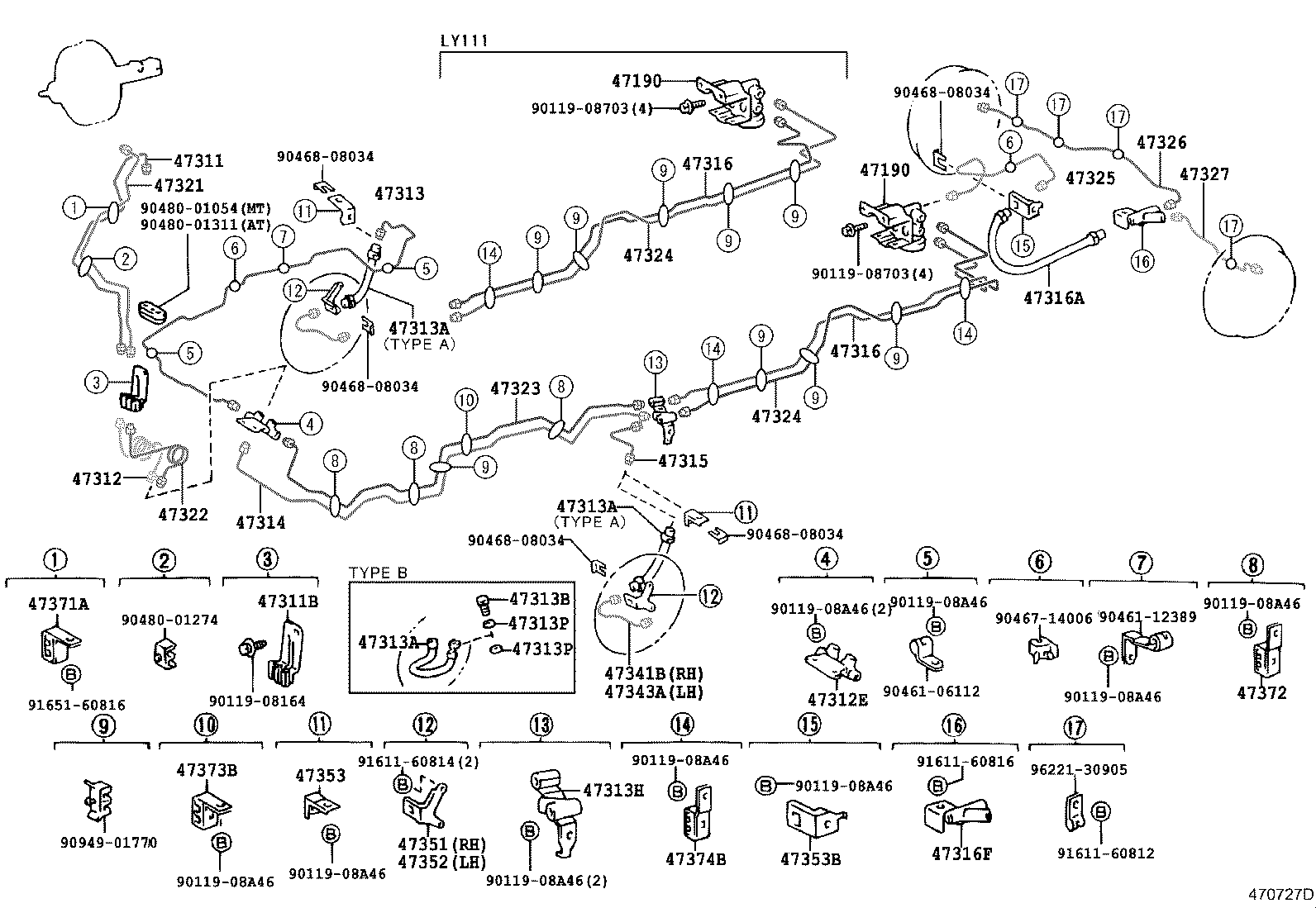

ILLUST NO. 1 OF 2(9610-9905)LY101,111,YY101

Click highlighted areas on diagram

diagram 47190 47190 47311 47311B 47312 47312E 47313 47313A 47313A 47313A 47313B 47313H 47313P 47313P 47314 47315 47316 47316 47316A 47316F 47321 47322 47323 47324 47324 47325 47326 47327 47341B 47343A 47351 47352 47353 47353B 47371A 47372 47373B 47374B 9011908164 9011908703 9011908703 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046106112 9046112389 9046714006 9046808034 9046808034 9046808034 9046808034 9046808034 9048001054 9048001274 9048001311 9094901770 9161160812 9161160814 9161160816 9165160816 9622130905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25290

LY101,111,121,131,151,161,YY101,121,131

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12044

LY101,111,121,131,151,161,YY101,121,131..MTM

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25160

LY101,111,YY101

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10187

LY101,111,121,131,151,161,YY101,121,131

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25130

LY101,111,YY101

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02477

LY101,111,YY101

TYPE A

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02477

LY101,111,YY101

TYPE A

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02477

LY101,111,YY101

TYPE A

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-13023

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-25160

LY101,111,YY101

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-25100

LY10#,11#,YY101

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-25170

LY10#,15#,YY101

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-25170

LY10#,15#,YY101

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02557

LY15#..T3,TW2;LY10#,11#,YY101..T2;LY16#..(T3,TW1)..TS

 1
47316F - WAY, 3(FOR REAR BRAKE TUBE)
90413-10216

LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS;LY12#,13#,YY121,131..WT

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25150

LY101,111,121,131,151,161,YY101,121,131

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25140

LY101,111,YY101

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25130

LY101,111,YY101

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25290

LY10#,15#,YY101

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25290

LY10#,15#,YY101

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26281

LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26191

LY10#,11#,15#,16#,YY101..T2..125

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26071

LY10#,11#,15#,16#,YY101..T2..125

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-26060

LY10#,11#,YY101

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-26060

LY10#,11#,YY101

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26070

LY10#,11#,YY101

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26070

LY10#,11#,YY101

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-26030

LY10#,11#,YY101

 2
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-26050

LY10#,11#,15#,YY101;LY16#..(T2,T3,TW1)..TS

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47373-25010

LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-25010

LY10#,11#,YY101

 3
47373B - CLAMP, BRAKE TUBE, NO.3
47373-26010

LY10#,11#,YY101

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47372-25010

LY10#,11#,12#,13#,15#,16#,20#,YY101,121,131,201

 2
Common parts
90119-08164
90119-08703
90119-08A46
90461-06112
90461-12389
90467-14006
90468-08034
90480-01054
90480-01274
90480-01311
90949-01770
91611-60812
91611-60814
91611-60816
91651-60816
96221-30905
