LY101-TBPDS3 (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

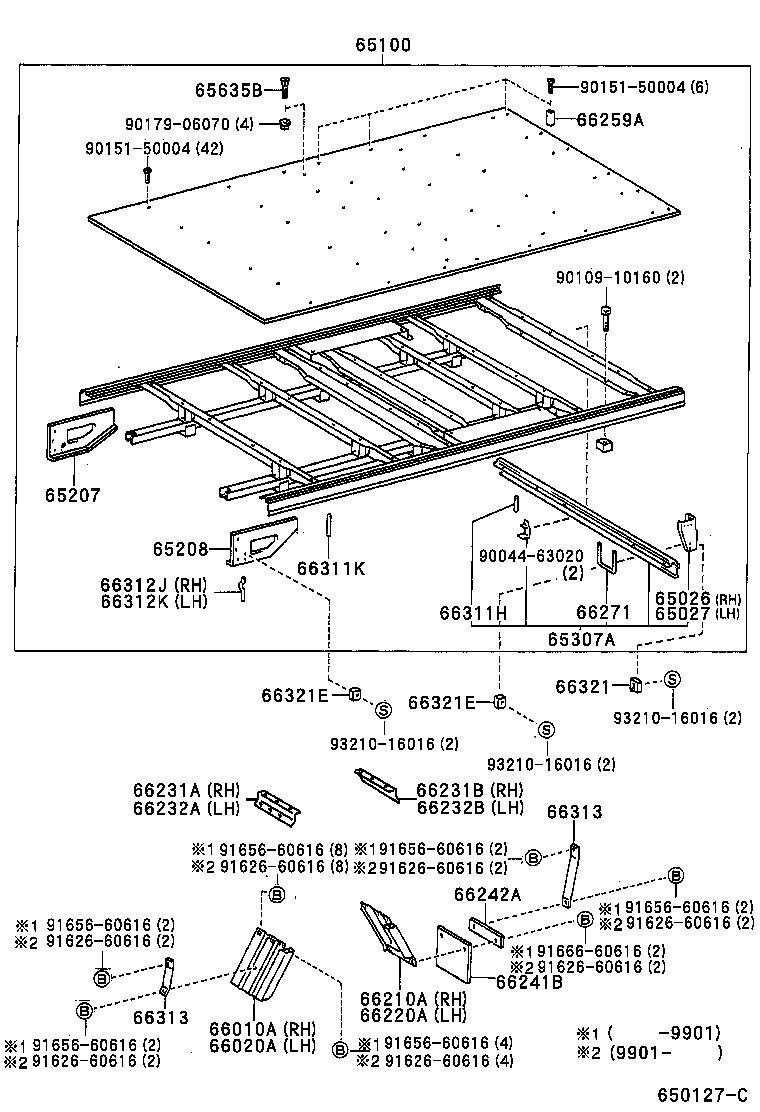

(9610- )LY10#,11#,12#,13#,15#,16#,YY121,131..T3..TB

Click highlighted areas on diagram

diagram 65026 65027 65100 65207 65208 65307A 65635B 66010A 66020A 66210A 66220A 66231A 66231B 66232A 66232B 66241B 66242A 66259A 66271 66311H 66311K 66312J 66312K 66313 66313 66321 66321E 66321E 9004463020 9010910160 9015150004 9015150004 9017906070 9162660616 9162660616 9162660616 9162660616 9162660616 9162660616 9162660616 9165660616 9165660616 9165660616 9165660616 9165660616 9165660616 9166660616 9321016016 9321016016 9321016016
Part # Description Qty Price
65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH
65026-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH
65027-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65100 - FLOOR ASSY, REAR BODY
65100-25360

LY10#..T3..TB

 1
65207 - BRACKET SUB-ASSY, GUARD FRAME, RH
65413-37050

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65208 - BRACKET SUB-ASSY, GUARD FRAME, LH
65415-37030

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
65635B - BOLT, COUNTER SUNK HEAD SQUARE NECK
65635-92830

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66010A - FENDER ASSY, REAR NO.2 RH
66010-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66210A - FENDER ASSY, REAR NO.1 RH
66210-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66242A - PLATE, BAFFLE RUBBER
66242-37070

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 2
66259A - COVER, REAR BODY FLOOR, REAR
66259-37010

YY101..T2..IV3;LY10#..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB

TECS=ﾕｿｳ ｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ)

 6
66311K - HOOK, ROPE
66311-37020

LY132..T3..MTM..CBU;LY12#,YY121..TB..CBU;LY10#,15#,20#,YY201..TB;LY132..TB..WT..15T..CBU;LY112,162..T2..TB..ST..CBU;LY102,YY211..T2..ATM..(CBR,DSL)..IV3

TECS=ﾕｿｳｼﾔ(ﾓｸｾｲ ﾃﾞﾂｷ)

 12
66312J - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66312K - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66313 - SUPPORT, REAR FENDER
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66313 - SUPPORT, REAR FENDER
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66321 - BUMPER, GATE RUBBER
66321-92803

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 2
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
Common parts
90044-63020
90109-10160
90151-50004
90179-06070
91626-60616
91656-60616
91666-60616
93210-16016

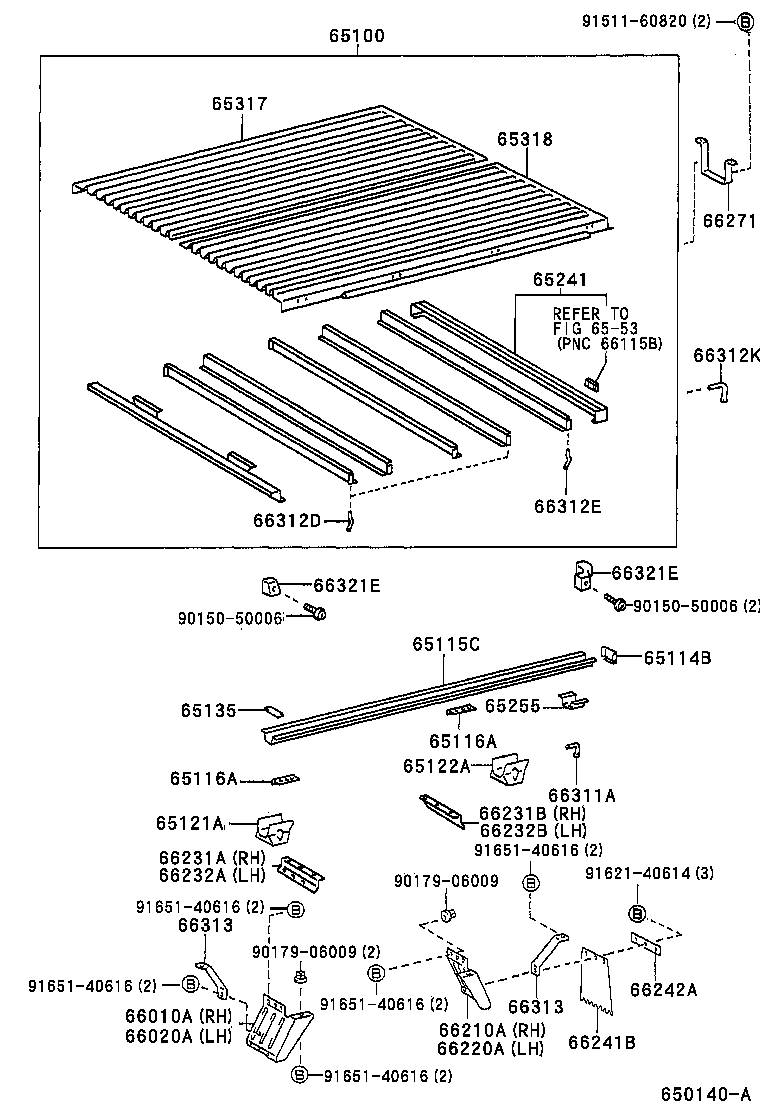

(9610- )LY10#,11#,12#,13#,15#,16#,YY101,121,131..T3,TW1

Click highlighted areas on diagram

diagram 65100 65114B 65115C 65116A 65116A 65121A 65122A 65135 65241 65255 65317 65318 6553 66010A 66020A 66210A 66220A 66231A 66231B 66232A 66232B 66241B 66242A 66271 66311A 66312D 66312E 66312K 66313 66313 66321E 66321E 9015050006 9015050006 9017906009 9017906009 9151160820 9162140614 9165140616 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-25360

LY10#..T3..TB

 1
66010A - FENDER ASSY, REAR NO.2 RH
66010-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66210A - FENDER ASSY, REAR NO.1 RH
66210-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66242A - PLATE, BAFFLE RUBBER
66242-37070

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 2
66312K - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66313 - SUPPORT, REAR FENDER
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66313 - SUPPORT, REAR FENDER
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
Common parts
90150-50006
90179-06009
91511-60820
91621-40614
91651-40616
Linked diagrams
6553

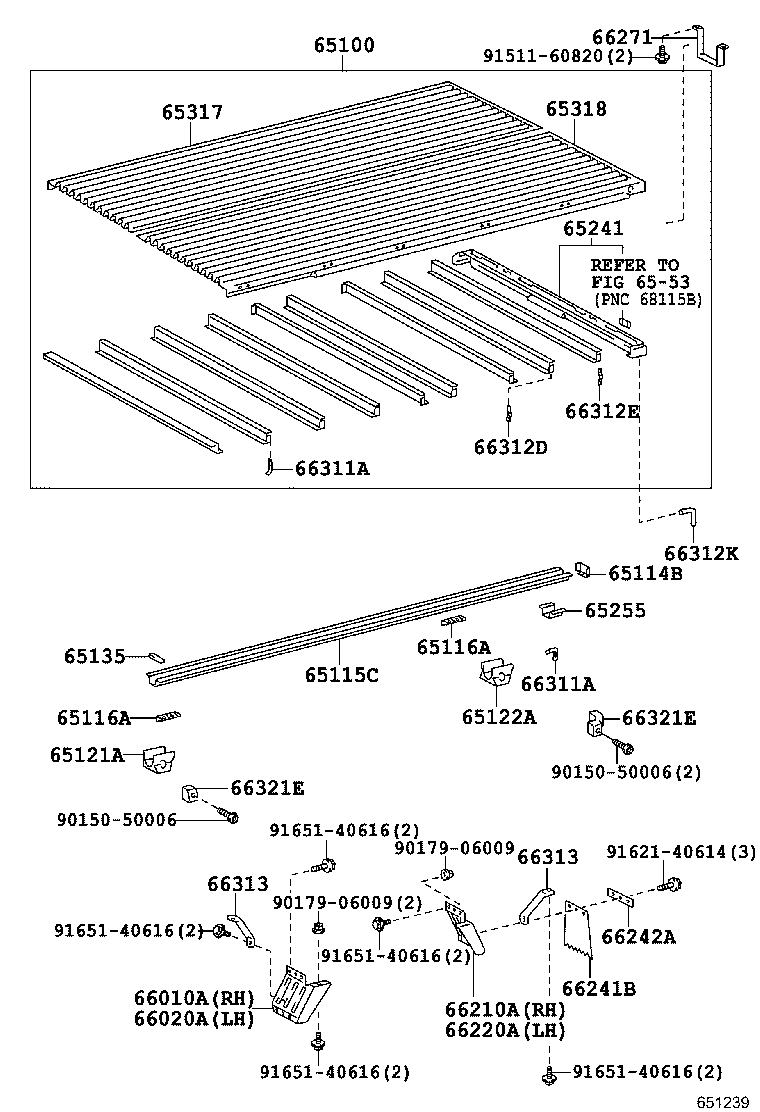

(9610- )LY10#,11#,16#,YY101..T3..TS

Click highlighted areas on diagram

diagram 65100 65114B 65115C 65116A 65116A 65121A 65122A 65135 65241 65255 65317 65318 6553 66010A 66020A 66210A 66220A 66241B 66242A 66271 66311A 66311A 66312D 66312E 66312K 66313 66313 66321E 66321E 9015050006 9015050006 9017906009 9017906009 9151160820 9162140614 9165140616 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-25360

LY10#..T3..TB

 1
66010A - FENDER ASSY, REAR NO.2 RH
66010-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66210A - FENDER ASSY, REAR NO.1 RH
66210-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-25020

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 1
66242A - PLATE, BAFFLE RUBBER
66242-37070

LY102..T2..ATM..IV3;LY12#,13#,16#,YY121,131..ST..15T..CBU;LY10#,11#,15#,20#,21#,YY201,211..TB..ST

 2
66312K - HOOK, ROPE, NO.2
66312-37020

LY102..T2..ATM..IV3;LY12#,13#,16#,21#,YY121,131,211..TB..CBU;LY10#,11#,15#,20#,21#,YY201,211..(T2,T3)..TB..(CBR,DSL)

 1
66313 - SUPPORT, REAR FENDER
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66313 - SUPPORT, REAR FENDER
66235-25010

YY211..(T2,T3)..15T..CBR;LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201..(T2,T3)..TB

ﾘﾔ

 2
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
66321E - BUMPER, GATE RUBBER
66321-92805

LY121,131,161,211,YY121,131,211..TB..CBU;LY101,111,151,201,211,YY201,211..(T2,T3)..TB..(CBR,DSL)

 4
Common parts
90150-50006
90179-06009
91511-60820
91621-40614
91651-40616
Linked diagrams
6553
