LY101-TBPDS3 (1996)
Toyota Dyna 150/Toyoace G15

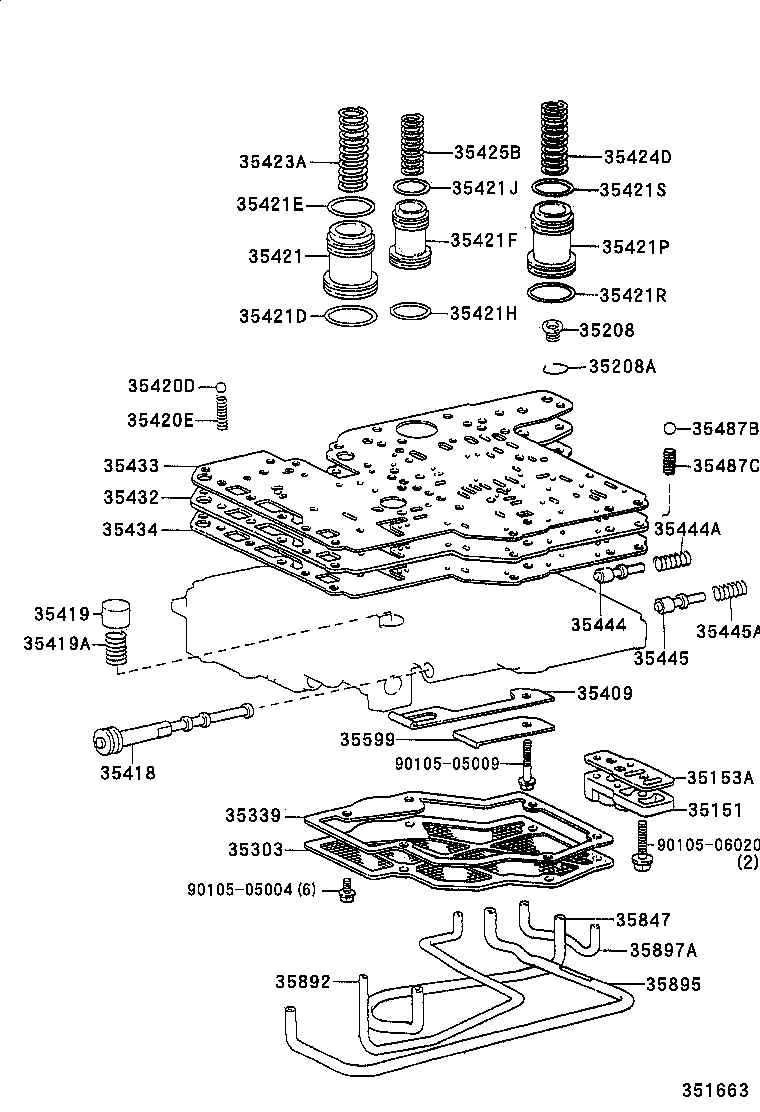

ILLUST NO. 1 OF 3(9610- )LY10#,11#,16#..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35151 - COVER, TRANSMISSION CASE, LOWER | ||||
| 35151-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35153A - GASKET, TRANSMISSION CASE LOWER COVER | ||||
| 35153-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-28010 |
LY101,111,161..ATM |
1 | ||
| 35208-26010 |
LY101,111..ATM |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
LY10#,11#,16#..ATM |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30060 |
LY10#,11#,16#..ATM |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-28030 |
LY10#,11#,16#..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30060 |
LY10#,11#,16#..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-16083 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22030 |
LY10#,11#,16#,YY211..ATM 外径=6.35,ﾗﾊﾞｰ |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-26010 |
LY10#,11#,16#..ATM |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29011 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90301-29187 |
LY101,111,161,YY211..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90301-23194 |
LY101,111,161,YY211..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
LY101,111,161,YY211..ATM |
1 | ||
| 90301-26012 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90301-18186 |
LY101,111,161,YY211..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26012 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 90301-26190 |
LY101,111,161,YY211..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
LY101,111,161,YY211..ATM |
1 | ||
| 90301-21012 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-25033 |
LY10#,11#,16#..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20063 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-27013 |
LY10#,11#..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-25020 |
LY101,111..ATM |
1 | ||
| 35432-25030 |
LY10#,11#,16#..ATM |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-22041 |
LY10#,11#,16#..ATM |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-22041 |
LY10#,11#,16#..ATM |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-09686 |
LY10#,11#,16#,YY211..ATM..(CBR,DSL) |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35444-22010 |
LY10#,11#,16#..ATM |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
LY101,111,161,YY211..ATM |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-26010 |
LY10#,11#,16#..ATM |
1 | ||
| 35892-30030 |
LY101,111..ATM |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30010 |
LY10#,11#,16#..ATM |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-05009 | ||||
| 90105-06020 | ||||

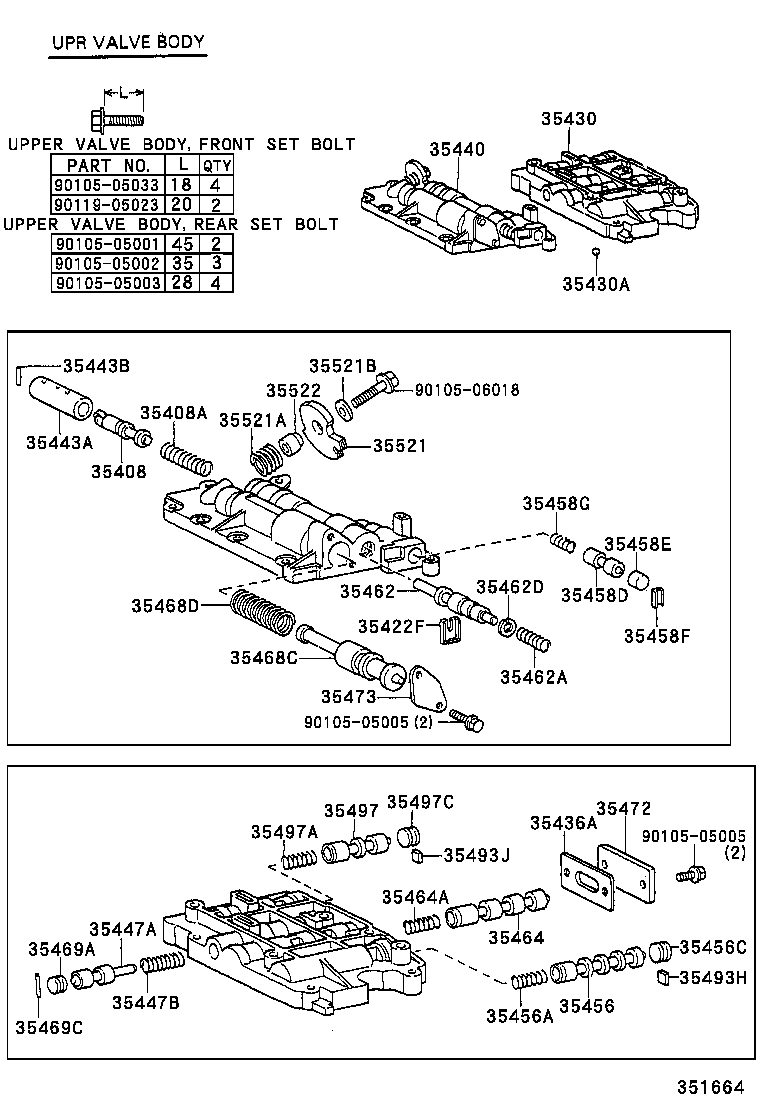

ILLUST NO. 2 OF 3(9610- )LY10#,11#,16#..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT | ||||
| 35408-22040 |
LY10#,11#,16#..ATM |
1 | ||
| 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) | ||||
| 90501-11011 |
LY10#,11#,16#..ATM |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22180 |
LY101,111,161..ATM |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
LY10#,11#,16#..ATM 外径=5.56,STEEL |
6 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30050 |
LY10#,11#,16#..ATM |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-25020 |
LY101,111,161..ATM |
1 | ||
| 35440-25010 |
LY101,111,161..ATM |
1 | ||
| 35443A - SLEEVE, DOWN SHIFT PLUG | ||||
| 35443-22010 |
LY10#,11#,16#..ATM |
1 | ||
| 35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE) | ||||
| 90250-03034 |
LY10#,11#,16#..ATM |
1 | ||
| 35447A - VALVE, REVERSE CLUTCH SEQUENCE | ||||
| 35447-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35447B - SPRING, COMPRESSION (FOR REVERSE CLUTCH SEQUENCE VALVE) | ||||
| 90501-11048 |
LY101,111,161..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30050 |
LY10#,11#,16#..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
LY10#,11#,16#..ATM |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06022 |
LY10#,11#,16#..ATM |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07129 |
LY10#,11#,16#..ATM 長さ=18.86 |
1 | ||
| 90501-07680 |
LY101,111,161,YY211..ATM 長さ=19.24 |
1 | ||
| 90501-07680 |
LY101,111,YY211..ATM 長さ=19.24 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35204-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
LY10#,11#,16#,YY211..ATM..(CBR,DSL) |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35469C - ROLLER, SHIFT VALVE PLUG | ||||
| 90361-02051 |
LY10#,11#,16#..ATM |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35493H - SEAT, SHIFT VALVE PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 35493-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35493J - SEAT, SHIFT VALVE PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30030 |
LY10#,11#,16#..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09028 |
LY10#,11#,16#..ATM |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
LY10#,11#,16#..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-20010 |
LY101,111,161..ATM |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05033 | ||||
| 90105-06018 | ||||
| 90119-05023 | ||||

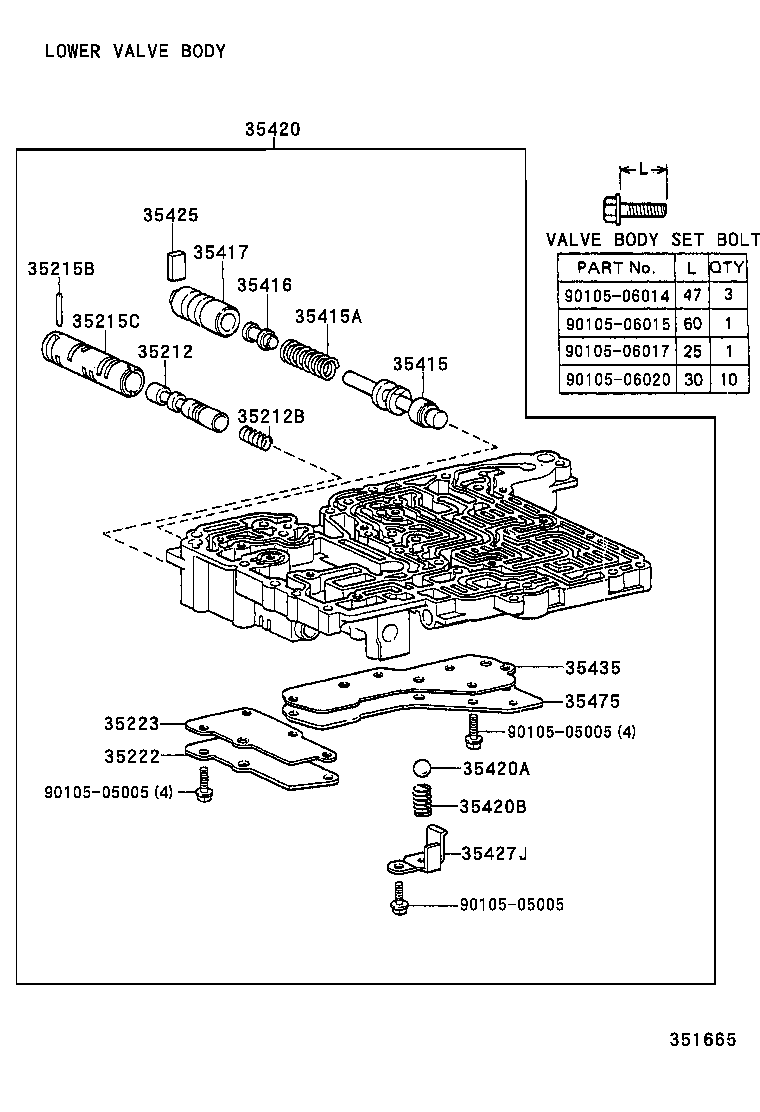

ILLUST NO. 3 OF 3(9610- )LY10#,11#,16#..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35202-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-10113 |
LY10#,11#,16#..ATM |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-04027 |
LY10#,11#,16#..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30013 |
LY10#,11#,16#..ATM |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-30010 |
LY10#,11#,16#..ATM |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35203-30011 |
LY10#,11#,16#..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-17021 |
LY101,111,161..ATM |
1 | ||
| 90501-17031 |
LY10#,11#,16#..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-14010 |
LY10#,11#,16#..ATM |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-14010 |
LY10#,11#,16#..ATM |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-25010 |
LY10#,11#,16#..ATM |
1 | ||
| 35420-30172 |
LY101,111,161..ATM |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-14010 |
LY10#,11#,16#,YY211..ATM |
1 | ||
| 35427J - SEAT, CHECK VALVE SPRING (FOR PRESSURE RELIEF) | ||||
| 35427-30020 |
LY10#,11#,16#..ATM |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30040 |
LY10#,11#,16#..ATM |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-30040 |
LY10#,11#,16#..ATM |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06014 | ||||
| 90105-06015 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
