LY101-PSMBS3 (1996)

Toyota Dyna 150/Toyoace G15

Production Oct 1996 - May 1999
Engine 3L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9610- )LY102,112,YY101 ; (9610- )LY101,111..T1,T3,TW1,TW2

Click highlighted areas on diagram

diagram 51100C 51100C 51100C 51100C 51100C 51100C 51100C 51100C 51100C 51100C 51100C 51100C 51100D 51100D 51203 51225B 51225B 51225B 51225B 51341A 51341A 51341A 51341A 51345 51345 51345 51345 51355 51355 51356 51356 51393 51393 51393 51393 51397A 51401 51401 51402 51402 51505D 51506D 51701 51701 51702 51702 51703 51703 51704 51704 51731 51732 51741 51741 51743A 51743A 51743A 51743A 51743A 51743A 51743A 51743A 51963A 51963F 51965C 51965C 53901A 57107 57107 57108 57108 9010512233 9011910454 9011910454 9011910809 9017912020 9166160816
Part # Description Qty Price
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100C - PLUG, HOLE(FOR FRAME)
90950-01395

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 6
51100D - PLUG, HOLE(FOR FRAME)
90950-01420

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51100D - PLUG, HOLE(FOR FRAME)
90950-01420

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51203-26112

LY10#,11#

 1
51225B - BRACKET, FRONT SUSPENSION MEMBER, RH
51225-26010

LY10#,11#,YY101

 2
51225B - BRACKET, FRONT SUSPENSION MEMBER, RH
51225-26010

LY10#,11#,YY101

 2
51225B - BRACKET, FRONT SUSPENSION MEMBER, RH
51225-26010

LY10#,11#,YY101

 2
51225B - BRACKET, FRONT SUSPENSION MEMBER, RH
51225-26010

LY10#,11#,YY101

 2
51341A - GUSSET, CROSSMEMBER, NO.4 LOWER
51342-26012

LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST

 2
51341A - GUSSET, CROSSMEMBER, NO.4 LOWER
51342-26012

LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST

 2
51341A - GUSSET, CROSSMEMBER, NO.4 LOWER
51342-26012

LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST

 2
51341A - GUSSET, CROSSMEMBER, NO.4 LOWER
51342-26012

LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST

 2
51345 - BRACKET, REAR SPRING, FRONT
51305-26020

LY101,111,YY101..T1,T3,TW1,TW2

右側

 1
51345-26020

LY101,111,YY101..T1,T3,TW1,TW2

左側

 1
51345 - BRACKET, REAR SPRING, FRONT
51305-26020

LY101,111,YY101..T1,T3,TW1,TW2

右側

 1
51345-26020

LY101,111,YY101..T1,T3,TW1,TW2

左側

 1
51345 - BRACKET, REAR SPRING, FRONT
51305-26020

LY101,111,YY101..T1,T3,TW1,TW2

右側

 1
51345-26020

LY101,111,YY101..T1,T3,TW1,TW2

左側

 1
51345 - BRACKET, REAR SPRING, FRONT
51305-26020

LY101,111,YY101..T1,T3,TW1,TW2

右側

 1
51345-26020

LY101,111,YY101..T1,T3,TW1,TW2

左側

 1
51355 - BRACKET, REAR SPRING, REAR RH
51301-25010

LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST

 1
51355 - BRACKET, REAR SPRING, REAR RH
51301-25010

LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST

 1
51356 - BRACKET, REAR SPRING, REAR LH
51302-25010

LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST

 1
51356 - BRACKET, REAR SPRING, REAR LH
51302-25010

LY10#,11#,12#,13#,15#,16#,YY101,121,131..ST

 1
51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER
51393-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 2
51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER
51393-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 2
51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER
51393-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 2
51393 - GUSSET, REAR FRAME CROSSMEMBER, LOWER
51393-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 2
51397A - BRACKET, EXHAUST PIPE CLAMP, NO.3
51397-26010

LY10#..1T

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-26010

LY10#,11#,YY101

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-26010

LY10#,11#,YY101

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-26010

LY10#,11#,YY101

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51401-26010

LY10#,11#,YY101

 1
51505D - SUPPORT ASSY, FRONT SUSPENSION RH
51505-26904

LY10#,11#,YY101

 1
51506D - SUPPORT ASSY, FRONT SUSPENSION, LH
51506-26904

LY10#,11#,YY101

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51711-26080

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51711-26080

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51711-26080

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51711-26080

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-26012

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-26012

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51703-26012

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51703-26012

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51705-26043

LY10#,11#,13#,15#,16#,YY101,131..TW1,TW2

 1
51732 - BRACKET, CAB REAR MOUNTING, LH
51705-26043

LY10#,11#,13#,15#,16#,YY101,131..TW1,TW2

 1
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 4
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 4
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 4
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 4
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 4
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 4
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 4
51743A - BRACKET, REAR BODY MOUNTING, NO.2 LH
51743-26010

LY10#,11#,12#,13#,15#,16#,YY101,121,131

 4
51963A - HOOK, TRANSPORT, FRONT RH
51963-26041

LY10#..1T

 1
51965C - HOOK, REAR
51965-26031

LY10#..1T

 1
51965C - HOOK, REAR
51965-26031

LY10#..1T

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-26040

LY10#,11#,YY101

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-26040

LY10#,11#,YY101

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-26040

LY10#,11#,YY101

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-26040

LY10#,11#,YY101

 1
Common parts
90105-12233
90119-10454
90119-10809
90179-12020
91661-60816

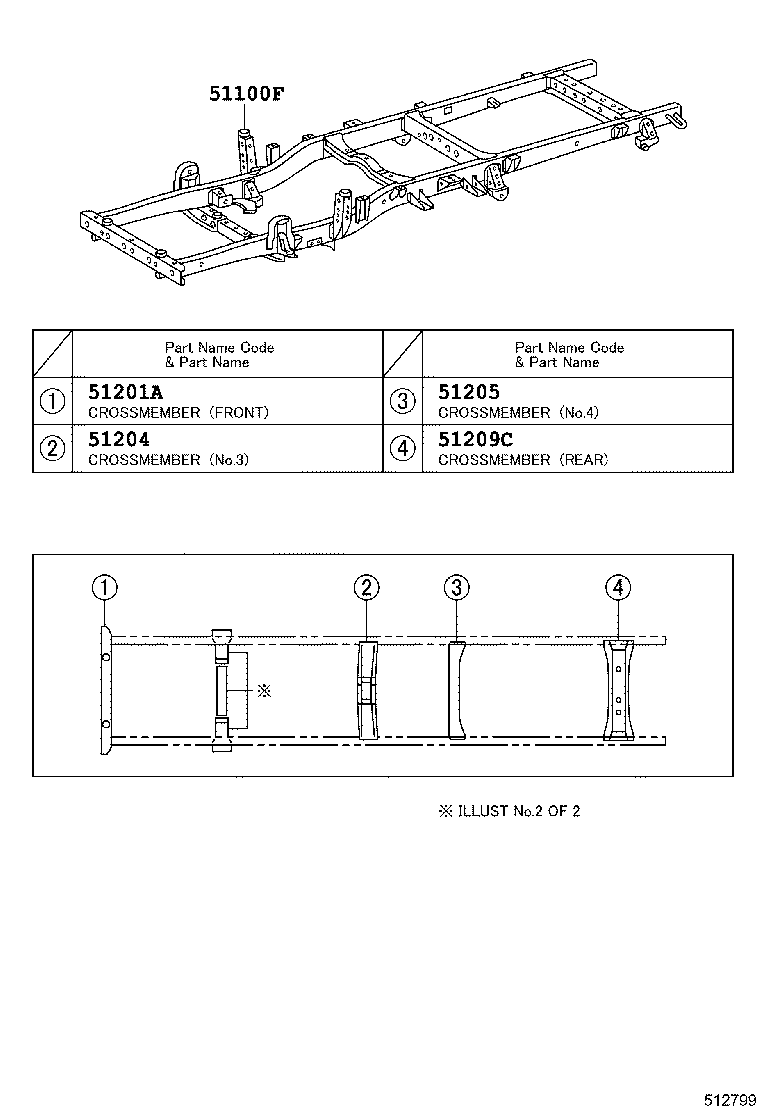

ILLUST NO. 1 OF 2(9610- )LY102,112,YY101 ; (9610- )LY101,111..T1,T3,TW1,TW2

Click highlighted areas on diagram

diagram 51100F 51201A 51204 51205 51209C
Part # Description Qty Price
51100F - FRAME SUB-ASSY
51001-26343

LY10#..1T

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-25090

LY10#,11#,YY101

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-26120

LY10#,11#,YY101

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-26031

LY162..ST;LY10#,11#,12#,13#,15#,161,YY101,121,131

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-26030

LY162..ST;LY10#,11#,12#,13#,15#,161,YY101,121,131

 1
