LY101-PSMBS (1996)
Toyota Dyna 150/Toyoace G15

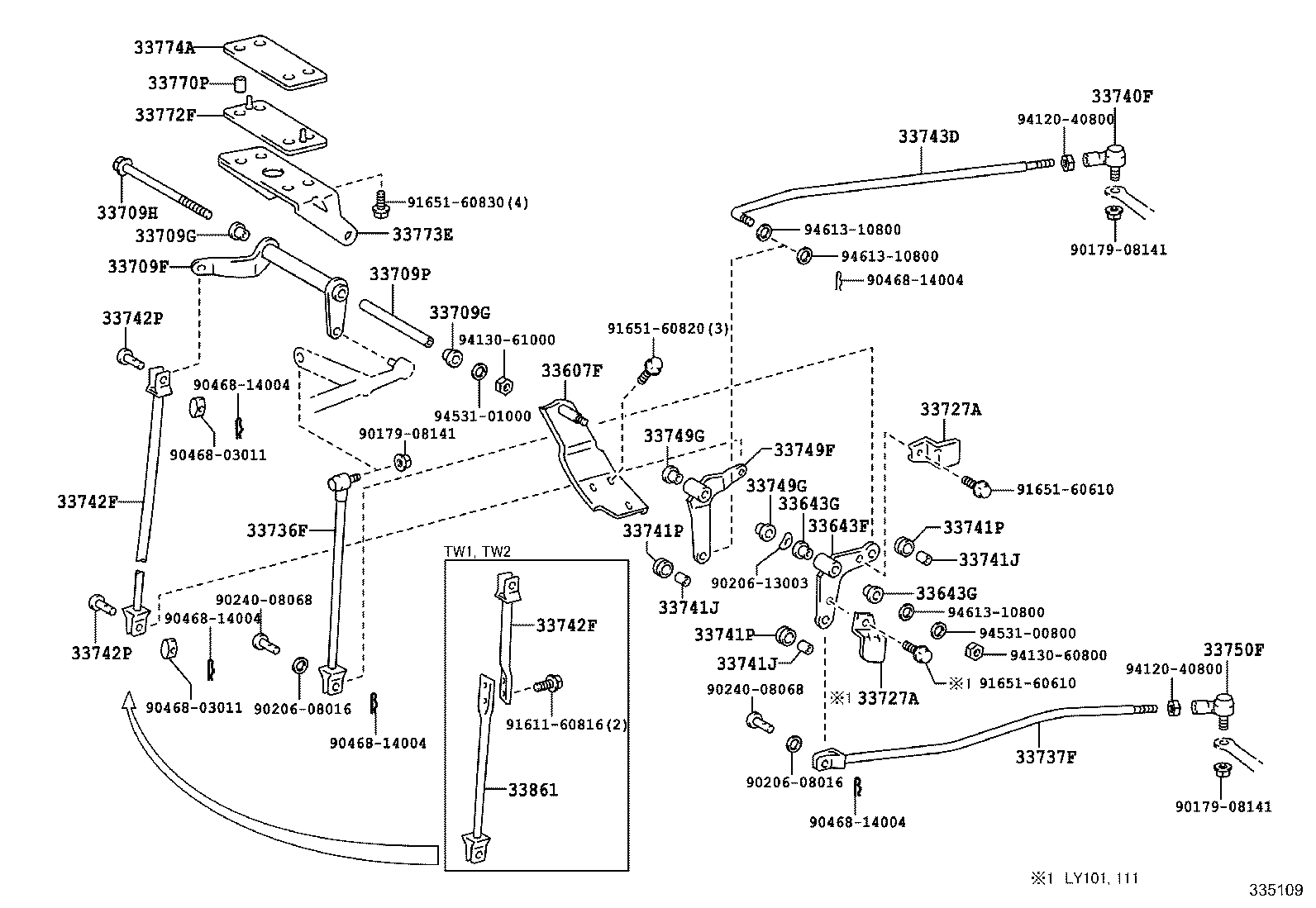

ILLUST NO. 2 OF 2(9610- )LY10#,11#,YY101..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33607F - SUPPORT SUB-ASSY, CONTROL ROD (FOR FLOOR SHIFT) | ||||
| 33607-26220 |
LY10#,11#,YY101..MTM |
1 | ||
| 33643F - LEVER, GEAR SELECTING, NO.3 | ||||
| 33643-25020 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
1 | ||
| 33643G - BUSH (FOR GEAR SELECTING LEVER) | ||||
| 90386-13192 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33643G - BUSH (FOR GEAR SELECTING LEVER) | ||||
| 90386-13192 |
LY10#,11#,12#,13#,15#,16#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-25142 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
2 | ||
| 33709H - BOLT, HEXAGON (FOR CROSS SHAFT) | ||||
| 90105-10103 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33709P - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-10075 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33727A - INSULATOR CONNECTING ROD BUSH HEAT | ||||
| 33727-25020 |
LY10#,11#,20#,21#..MTM |
2 | ||
| 33727A - INSULATOR CONNECTING ROD BUSH HEAT | ||||
| 33727-25020 |
LY10#,11#,20#,21#..MTM |
2 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-25181 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
1 | ||
| 33737F - ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT) | ||||
| 33701-25190 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
3 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
3 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
3 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-25150 |
LY10#,11#,201,21#,YY101,201,211..TW1,TW2 |
1 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-25150 |
LY10#,11#,201,21#,YY101,201,211..TW1,TW2 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08042 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) 下側 |
1 | ||
| 90240-08028 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) 上側 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08042 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) 下側 |
1 | ||
| 90240-08028 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) 上側 |
1 | ||
| 33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT) | ||||
| 33743-25130 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
1 | ||
| 33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT) | ||||
| 33749-25020 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
1 | ||
| 33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-13192 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
2 | ||
| 33749G - BUSH (FOR FLOOR SHIFT GEAR SHIFTING LEVER) | ||||
| 90386-13192 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
2 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LY10#,11#,201,YY101,201..MTM..ST..(125,1T) |
1 | ||
| 33770P - COLLER (FOR CROSS SHAFT) | ||||
| 90387-09021 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
4 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-25010 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33773E - SUPPORT, CROSS SHAFT, NO.1 | ||||
| 33773-25020 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33774A - SUPPORT, CROSS SHAFT, NO.2 | ||||
| 33774-25010 |
LY16#;LY10#,11#,12#,13#,15#,20#,21#,YY101,121,131,201,211..MTM |
1 | ||
| 33861 - ROD, GEAR SHIFTING, NO.4 | ||||
| 33861-26020 |
LY10#,11#,201,YY101,201..1T |
1 | ||
| Common parts | ||||
| 90179-08141 | ||||
| 90206-08016 | ||||
| 90206-13003 | ||||
| 90240-08068 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91611-60816 | ||||
| 91651-60610 | ||||
| 91651-60820 | ||||
| 91651-60830 | ||||
| 94120-40800 | ||||
| 94130-60800 | ||||
| 94130-61000 | ||||
| 94531-00800 | ||||
| 94531-01000 | ||||
| 94613-10800 | ||||
