XZU695-TQMMY (2021)
Toyota Dyna
Production
Mar 2021
-
Sep 9999
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

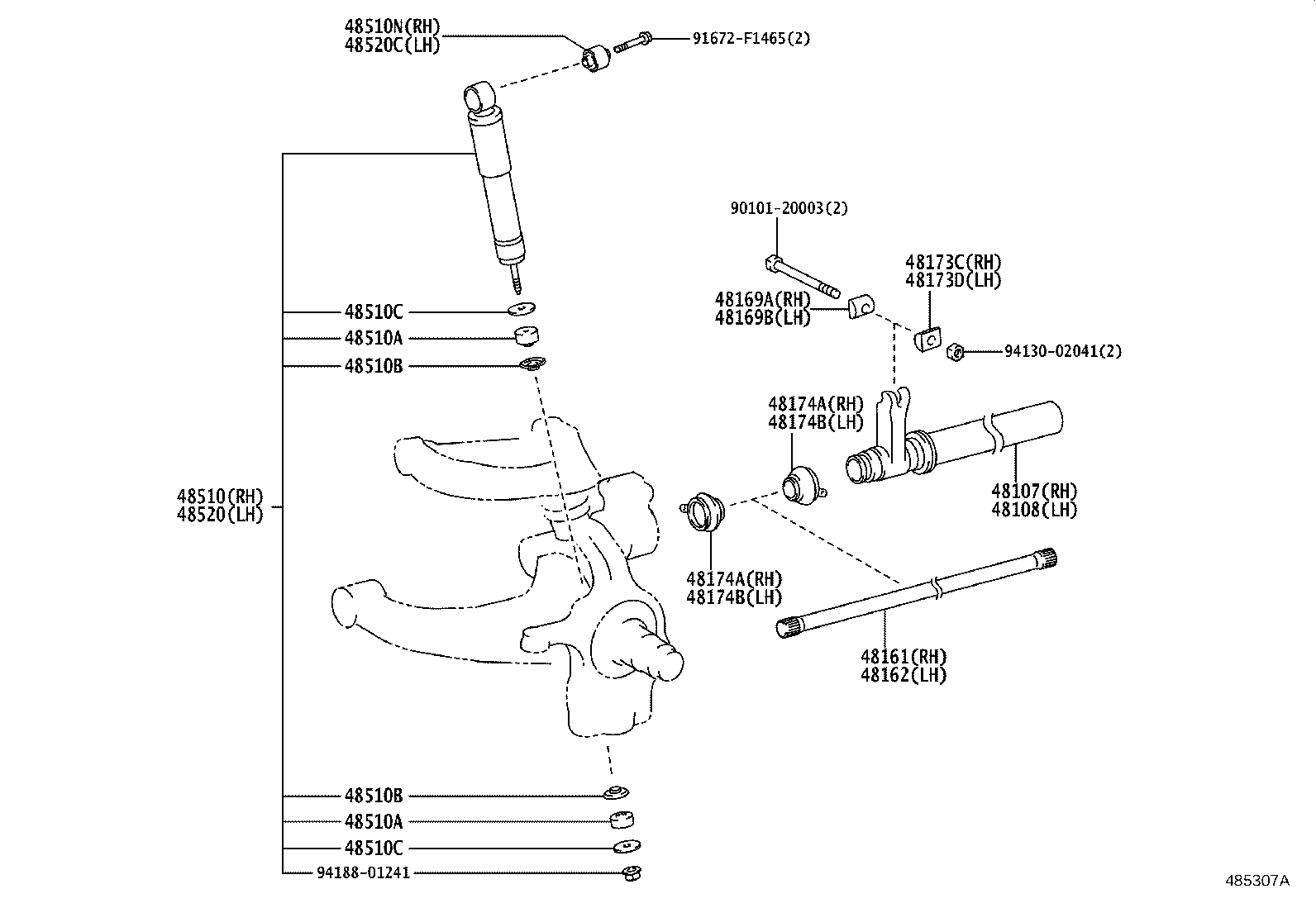

ILLUST NO. 1 OF 2(2103- )XZC675,XZU675,685,695
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-37042 |
XZC675,XZU675,685,695 |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-37042 |
XZC675,XZU675,685,695 |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-37100 |
XZC675,XZU675,685,695..20T |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-37100 |
XZC675,XZU675,685,695..20T |
1 | ||
| 48169A - SWIVEL, ANCHOR ARM, RH | ||||
| 48169-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 48169B - SWIVEL, ANCHOR ARM, LH | ||||
| 48169-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 48173C - SEAT, ANCHOR ARM ADJUSTER, RH | ||||
| 48173-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 48173D - SEAT, ANCHOR ARM ADJUSTER, LH | ||||
| 48173-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 48174A - COVER, TORSION BAR DUST, RH | ||||
| 48174-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 48174A - COVER, TORSION BAR DUST, RH | ||||
| 48174-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 48174B - COVER, TORSION BAR DUST, LH | ||||
| 48174-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 48174B - COVER, TORSION BAR DUST, LH | ||||
| 48174-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80768 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37061 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01059 |
XZC675,XZU675,685,695 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01059 |
XZC675,XZU675,685,695 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02077 |
XZC675,XZU675,685,695 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02077 |
XZC675,XZU675,685,695 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90560-12076 |
XZC675,XZU675,685,695 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90560-12076 |
XZC675,XZU675,685,695 |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90389-14055 |
XZC675,XZU675,685,695 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80768 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37061 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90389-14055 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90101-20003 | ||||
| 91672-F1465 | ||||
| 94130-02041 | ||||
| 94188-01241 | ||||
