Toyota Dyna XZU695 PARKING BRAKE & CABLE

Manufacturers Home
Toyota
JP
DYNA
XZU695-TKMQY (2021)
4601 - PARKING BRAKE & CABLE

XZU695-TKMQY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

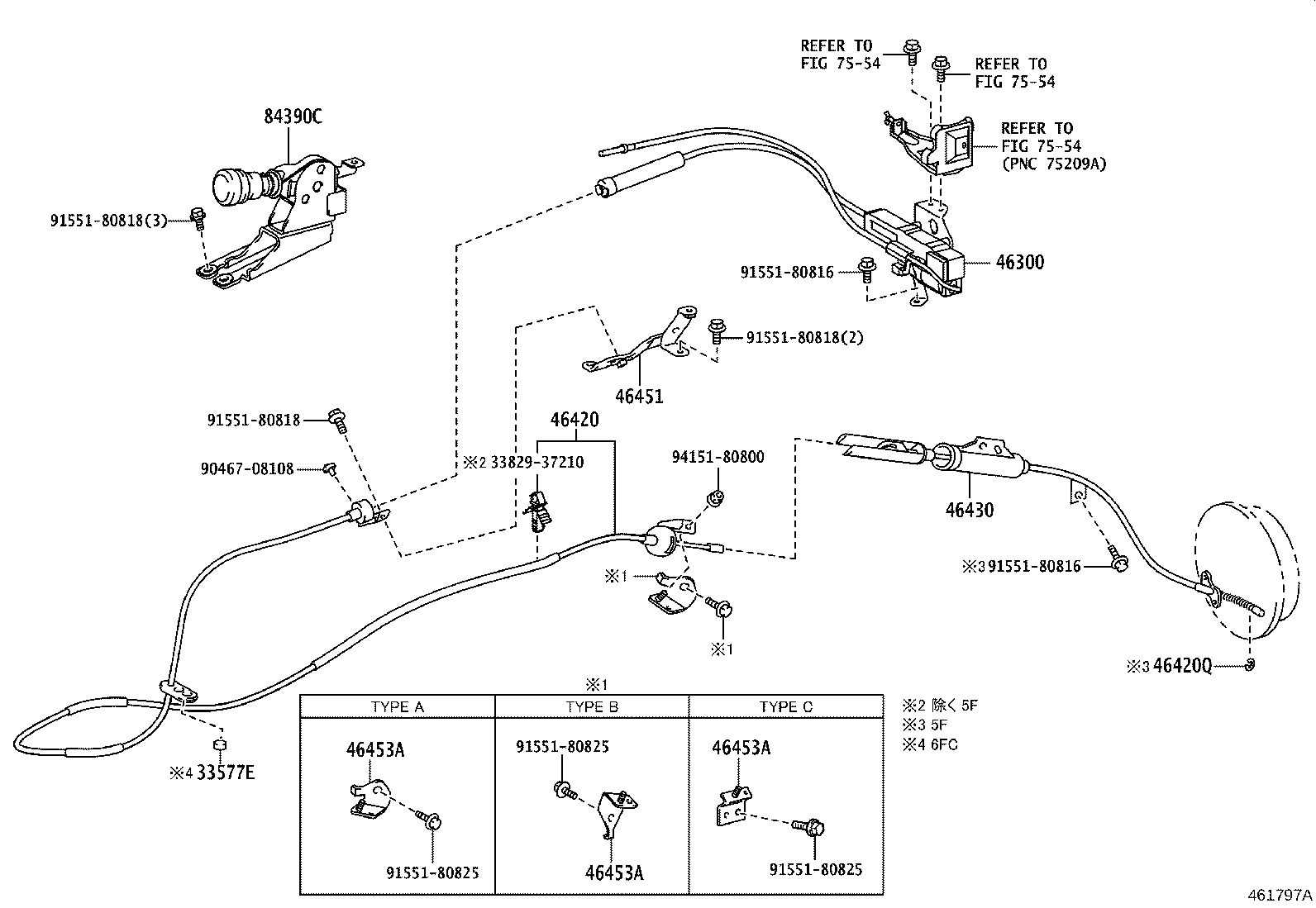

ILLUST NO. 1 OF 2(2103- )

Click highlighted areas on diagram

ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)

Part #	Description	Period	Qty
46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET
46300-37064	XZC675,XZU675,685,695..SCB	03/2021 - 12/2999	1
46300-37064	XZC675,XZU675,685,695..SCB ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	03/2021 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37D10	XZC675,XZU675,685,695..SCB ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	03/2021 - 12/2999	1
46420-37D50	XZC675,XZU675,685,695..SCB	03/2021 - 12/2999	1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
90523-12008	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37J40	XZC675,XZU675,685,695..SCB ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	03/2021 - 12/2999	1
46430-37J90	XZC675,XZU675,685,695..SCB	03/2021 - 12/2999	1
46451 - BRACKET, CABLE SUPPORT
46451-37080	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB	03/2021 - 12/2999	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37461	XZC675,XZU675,685,695 TYPE B:ｲﾗｽﾄ参照	03/2021 - 12/2999	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37461	XZC675,XZU675,685,695 TYPE B:ｲﾗｽﾄ参照	03/2021 - 12/2999	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37461	XZC675,XZU675,685,695 TYPE B:ｲﾗｽﾄ参照	03/2021 - 12/2999	1
84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE
84390-37040C0	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB BLACK,TRIM1#	03/2021 - 12/2999	1
84390-37040C0	XZC675,XZU675,685,695..SCB ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	03/2021 - 12/2999	1
Common parts
33829-37210
90467-08108
91551-80816
91551-80818
91551-80825
94151-80800
Linked diagrams
7554

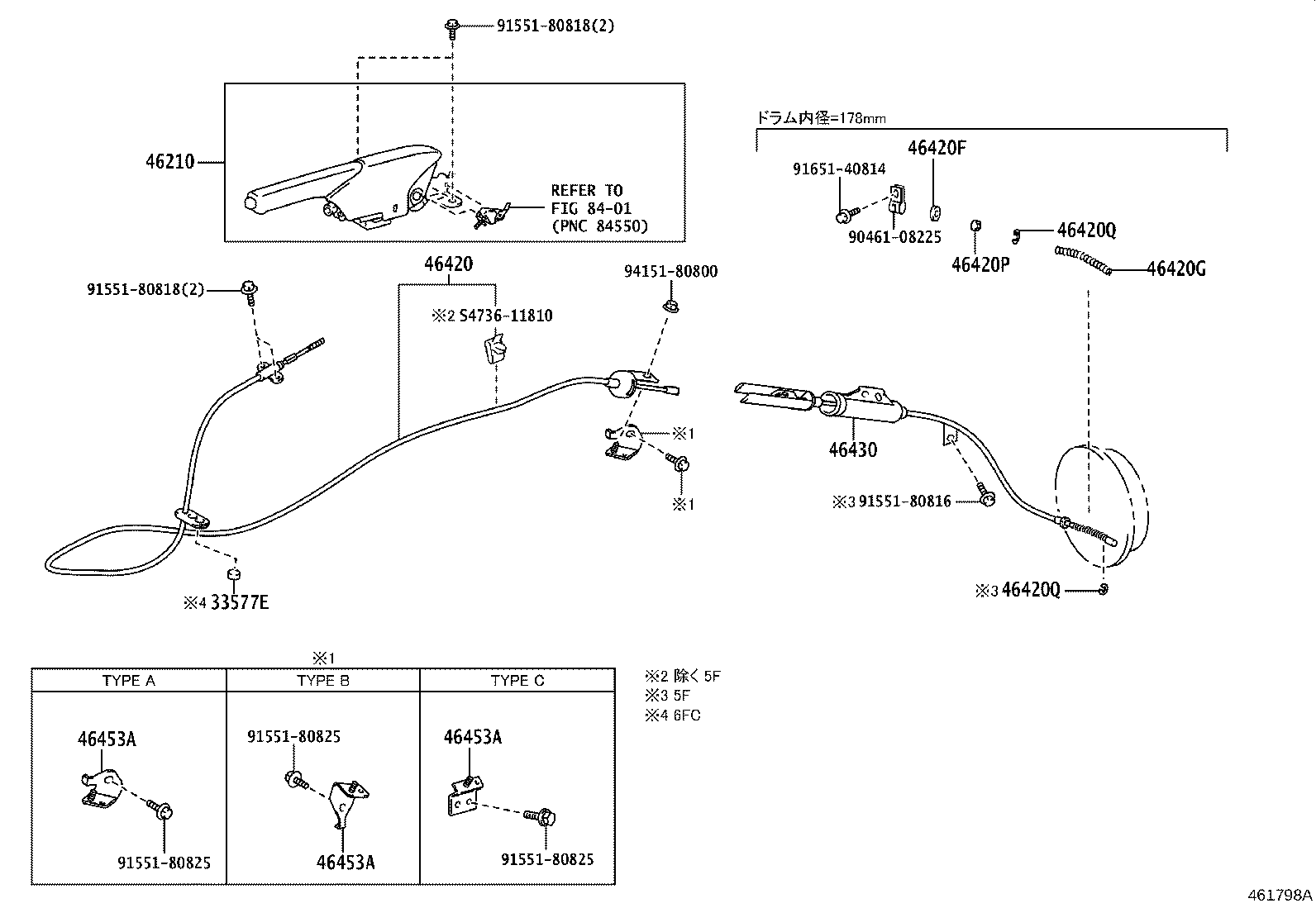

ILLUST NO. 1 OF 2(2103- )

Click highlighted areas on diagram

ﾅｼ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)

Part #	Description	Period	Qty
46210 - LEVER ASSY, PARKING BRAKE
46210-37130C0	XZC675,XZU675,685,695 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),BLACK,TRIM1#	03/2021 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37D10	XZC675,XZU675,685,695..SCB ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	03/2021 - 12/2999	1
46420-37D50	XZC675,XZU675,685,695..SCB	03/2021 - 12/2999	1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
90523-12008	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
90523-12008	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37J40	XZC675,XZU675,685,695..SCB ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)	03/2021 - 12/2999	1
46430-37J90	XZC675,XZU675,685,695..SCB	03/2021 - 12/2999	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37461	XZC675,XZU675,685,695 TYPE B:ｲﾗｽﾄ参照	03/2021 - 12/2999	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37461	XZC675,XZU675,685,695 TYPE B:ｲﾗｽﾄ参照	03/2021 - 12/2999	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37461	XZC675,XZU675,685,695 TYPE B:ｲﾗｽﾄ参照	03/2021 - 12/2999	1
Common parts
90461-08225
91551-80816
91551-80818
91551-80825
91651-40814
94151-80800
S4736-11810
Linked diagrams
8401

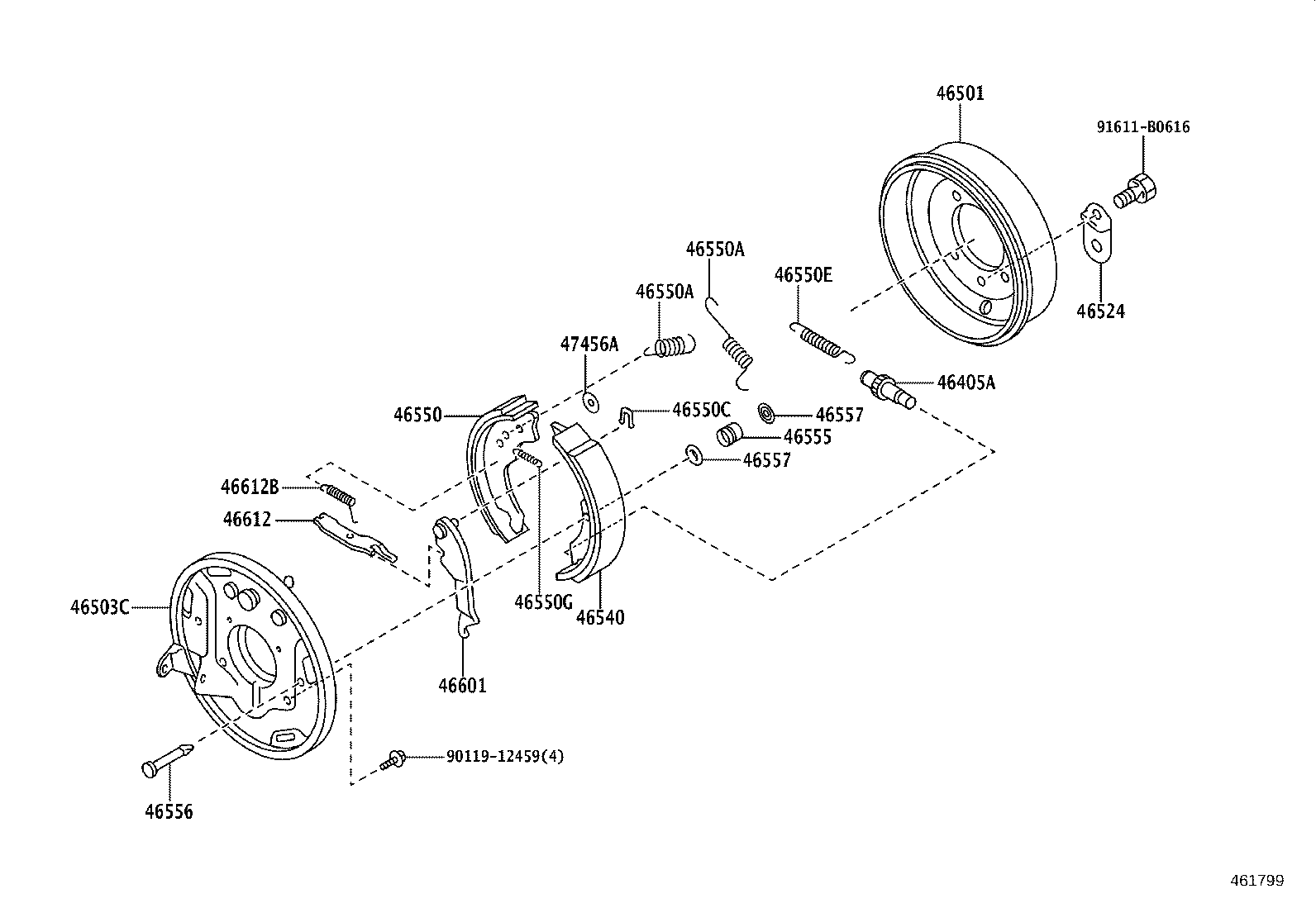

ILLUST NO. 2 OF 2(2103- )XZC675,XZU675,685,695

Click highlighted areas on diagram

Part #	Description	Period	Qty
46405A - SCREW SET, SHOE ADJUSTING, RH
46590-37010	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46511-37200	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46503C - PLATE SUB-ASSY, PARKING BRAKE
46540-37070	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46524 - COVER, PARKING BRAKE DUST
46524-37050	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46530-37040	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46530-37040	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
47459-37010	XZC675,XZU675,685,695	03/2021 - 12/2999	2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
47459-37010	XZC675,XZU675,685,695	03/2021 - 12/2999	2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-07010	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46296-37010	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
47459-37020	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46555 - SPRING, BRAKE SHOE HOLD DOWN
46555-37020	XZC675,XZU675,685,695	03/2021 - 12/2999	2
46556 - PIN, SHOE HOLD DOWN SPRING
46556-37020	XZC675,XZU675,685,695	03/2021 - 12/2999	2
46557 - CUP, BRAKE SHOE HOLD DOWN
46557-37020	XZC675,XZU675,685,695	03/2021 - 12/2999	4
46557 - CUP, BRAKE SHOE HOLD DOWN
46557-37020	XZC675,XZU675,685,695	03/2021 - 12/2999	4
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-37020	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46612 - STRUT, PARKING BRAKE SHOE LEVER
46612-37030	XZC675,XZU675,685,695	03/2021 - 12/2999	1
46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
46295-37010	XZC675,XZU675,685,695	03/2021 - 12/2999	1
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
90201-11341	XZC675,XZU675,685,695	03/2021 - 12/2999	1
Common parts
90119-12459
91611-B0616
