XZU695-PKMMY3 (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )XZU605,655,685,695..DCB

Click highlighted areas on diagram

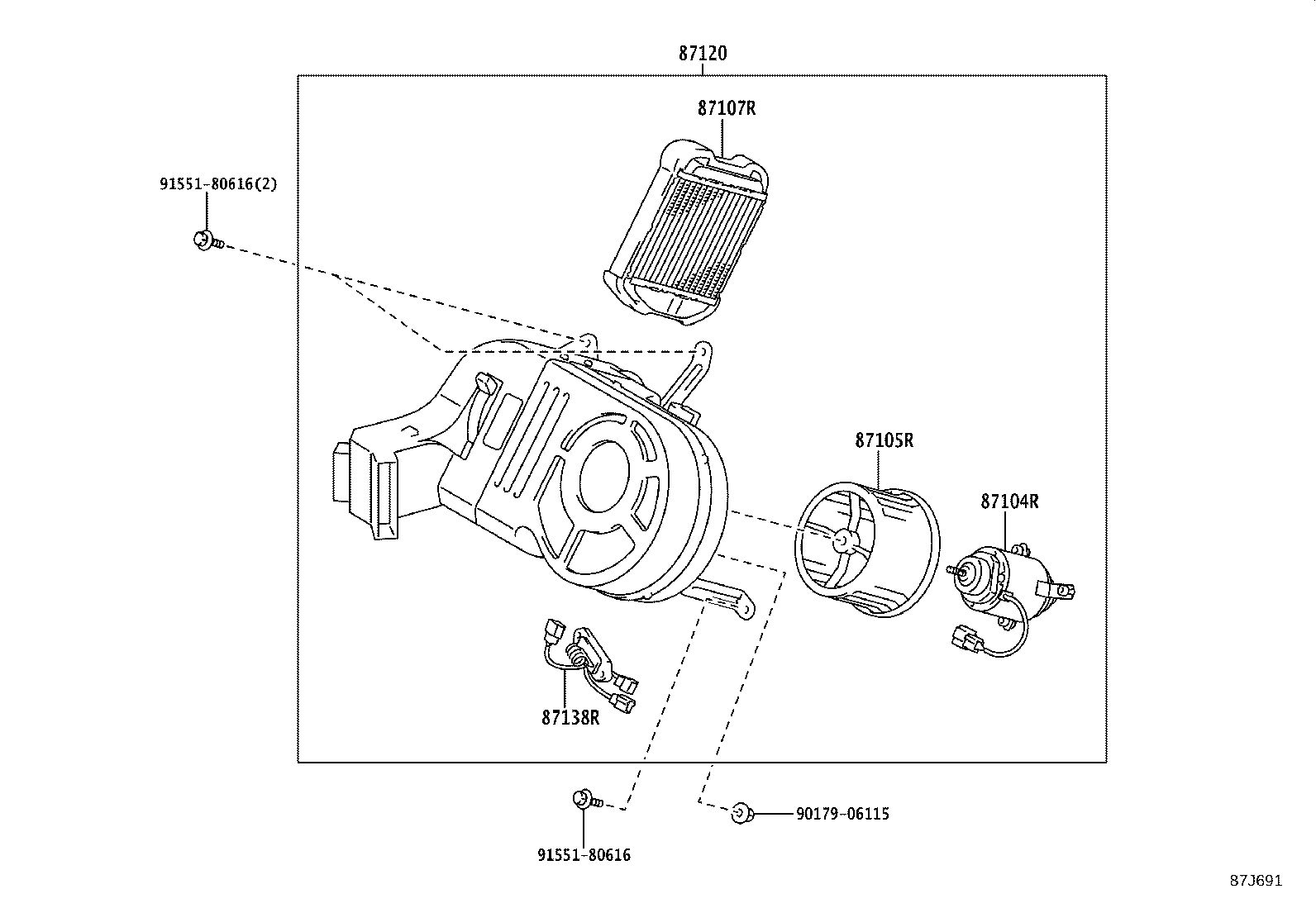

diagram 87104R 87105R 87107R 87120 87138R 9017906115 9155180616 9155180616
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-90A04

XZU605,655,685,695..DCB

ﾘﾔﾋｰﾀ−有り

 1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

XZU605,655,685,695..DCB

ﾘﾔﾋｰﾀ−有り

 1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-60330

XZU605,655,685,695..DCB

ﾘﾔﾋｰﾀ−有り

 1
87120 - HEATER ASSY, REAR
87110-37051

XZU605,655,685,695..DCB..20T

ﾘﾔﾋｰﾀ−有り

 1
87138R - RESISTOR, REAR HEATER BLOWER
87138-37160

XZU605,655,685,695..DCB

ﾘﾔﾋｰﾀ−有り

 1
Common parts
90179-06115
91551-80616
