Toyota Dyna XZU695 SEAT & SEAT TRACK

Manufacturers Home
Toyota
JP
DYNA
XZU695-PKMMY (2021)
7151 - SEAT & SEAT TRACK

XZU695-PKMMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(2103- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
90468-16019
90468-18008

ILLUST NO. 1 OF 3(2103- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71610-37051	XZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65#	03/2021 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37C70C0	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1#	03/2021 - 12/2999	1
71071-37C80B0	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71071-37C80B0	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37C40C1	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1#	03/2021 - 12/2999	1
71073-37C50B2	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71073-37C50B2	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37F10C0	XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1#	03/2021 - 12/2999	1
71410-37F20B0	XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71410-37F20B0	XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37E20C1	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1#	03/2021 - 12/2999	1
71430-37E30B2	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71430-37E30B2	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37130	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	2
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37280	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37021	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37180	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37022B1	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	1
71831D - COVER, FRONT SEAT HINGE, RH
71832-37010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-37010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
72137E - COVER, SEAT TRACK, NO.1
72137-37010B1	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030	XZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65#	03/2021 - 12/2999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37020B1	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	1
Common parts
90119-08134
90119-10229
90119-10825
90167-40044
90179-08149
Linked diagrams
7152

ILLUST NO. 1 OF 3(2103- )

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ,ｱﾘ(ﾗﾝﾊﾞｻﾎﾟｰﾄ)

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71610-37051	XZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65#	03/2021 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37C70C0	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1#	03/2021 - 12/2999	1
71071-37C80B0	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71071-37C80B0	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-37C40C1	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) BLACK,TRIM1#	03/2021 - 12/2999	1
71073-37C50B2	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71073-37C50B2	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71311B - BUSH (FOR FRONT SEAT HINGE PIN)
90386-12053	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37F10C0	XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1#	03/2021 - 12/2999	1
71410-37F20B0	XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71410-37F20B0	XZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37E20C1	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,BLACK,TRIM1#	03/2021 - 12/2999	1
71430-37E30B2	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71430-37E30B2	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37130	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37280	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37021	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37180	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37022B1	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695	03/2021 - 12/2999	1
72137E - COVER, SEAT TRACK, NO.1
72137-37010B1	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030	XZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65#	03/2021 - 12/2999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37020B1	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 GRAY,TRIM1#	03/2021 - 12/2999	1
Common parts
90119-08134
90119-10111
90119-10229
90119-10825
90167-40044
90179-08149
91651-60614
Linked diagrams
7152

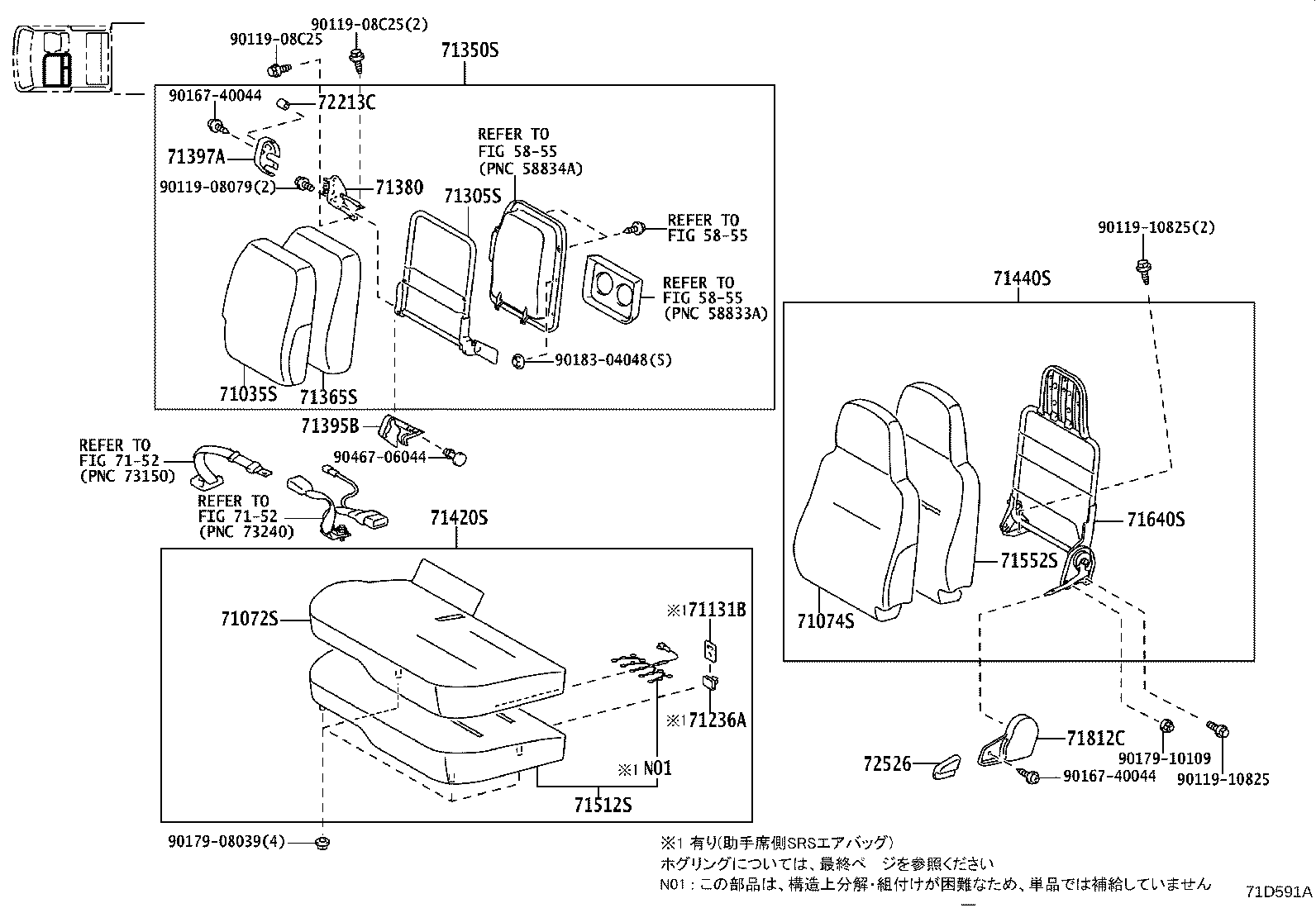

ILLUST NO. 2 OF 3(2103- )DCB

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

Part #	Description	Period	Qty
71035S - COVER, FRONT SEAT BACK, CENTER
71095-37790C0	XZU605,655,685,695..DCB..20T BLACK,TRIM1#	03/2021 - 12/2999	1
71095-37800B0	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71095-37800B0	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-37F00B1	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71072-37F00B1	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71072-37E90C0	XZU605,655,685,695..DCB..20T BLACK,TRIM1#	03/2021 - 12/2999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37E00B2	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71074-37D90C1	XZU605,655,685,695..DCB..20T BLACK,TRIM1#	03/2021 - 12/2999	1
71074-37E00B2	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席)	03/2021 - 12/2999	1
71131-37030	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席)	03/2021 - 12/2999	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6) ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席)	03/2021 - 12/2999	1
71236-37010	XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席)	03/2021 - 12/2999	1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37120	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-37B20B0	XZU605,655,685,695..DCB..20T ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71350-37B10B1	XZU605,655,685,695..DCB..20T ***,GRAY,TRIM1#	03/2021 - 12/2999	1
71350-37B20B0	XZU605,655,685,695..DCB..20T ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71365S - PAD, CENTER SEAT BACK
71365-25041	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-37010	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-37010B1	XZU600,605,640,655,685,695..DCB GRAY,TRIM1#	03/2021 - 12/2999	1
71397A - COVER, CENTER SEAT HINGE
71397-37010B1	XZU600,605,640,655,685,695..DCB GRAY,TRIM1#	03/2021 - 12/2999	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-37N80B1	XZU605,655,685,695..DCB..20T ***,GRAY,TRIM1#	03/2021 - 12/2999	1
71420-37N90B1	XZU605,655,685,695..DCB..20T ***,SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71420-37P00B1	XZU605,655,685,695..DCB..20T ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71420-37P10B2	XZU605,655,685,695..DCB..20T ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-37E80B1	XZU605,655,685,695..DCB..20T ***,GRAY,TRIM1#	03/2021 - 12/2999	1
71440-37E90B2	XZU605,655,685,695..DCB..20T ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席),GRAY,TRIM1#	03/2021 - 12/2999	1
71440-37E90B2	XZU605,655,685,695..DCB..20T ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-25051	XZU600,605,640,655,685,695..DCB SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席)	03/2021 - 12/2999	1
71052-25051	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席)	03/2021 - 12/2999	1
71502-25071	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37280	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-37210	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-37021B1	XZU600,605,640,655,685,695..DCB GRAY,TRIM1#	03/2021 - 12/2999	1
72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH
72213-95J00B5	XZU600,605,640,655,685,695..DCB GRAY,TRIM1#	03/2021 - 12/2999	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-37010B1	XZU600,605,640,655,685,695..DCB GRAY,TRIM1#	03/2021 - 12/2999	1
Common parts
90119-08079
90119-08C25
90119-10825
90167-40044
90179-08039
90179-10109
90183-04048
90467-06044
Linked diagrams
5855
7152

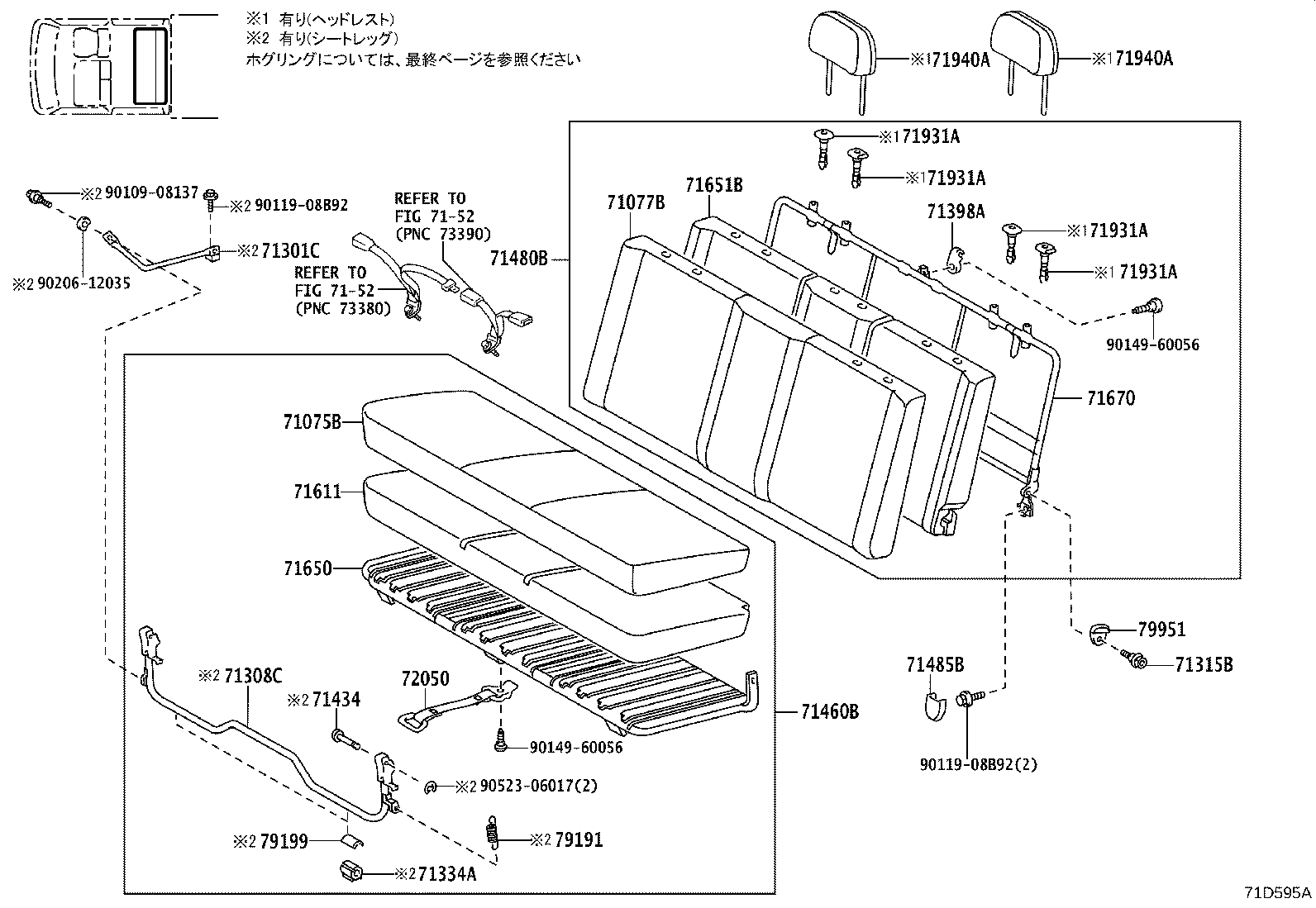

ILLUST NO. 3 OF 3(2103- )DCB

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-37440C0	XZU605,655,685,695..DCB..20T BLACK,TRIM1#	03/2021 - 12/2999	1
71075-37470B1	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71075-37470B1	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ &ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-37570C0	XZU605,655,685,695..DCB..20T BLACK,TRIM1#	03/2021 - 12/2999	1
71077-37630B1	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71077-37580C0	XZU605,655,685,695..DCB..20T ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),BLACK,TRIM1#	03/2021 - 12/2999	1
71077-37640B1	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ &ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	1
71301C - LINK SUB-ASSY, REAR SEAT CUSHION
71301-37010	XZU605,655,685,695..DCB..20T	03/2021 - 12/2999	1
71308C - LEG SUB-ASSY, REAR SEAT, FRONT
71308-37030	XZU605,655,685,695..DCB..20T	03/2021 - 12/2999	1
71315B - PIN, REAR SEAT HINGE
90109-10175	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	2
71334A - STOPPER, REAR SEAT LEG
79189-95J00	XZU605,655,685,695..DCB..20T	03/2021 - 12/2999	2
71398A - HOLDER, REAR SEAT BACK
71398-95702B3	XZU600,605,640,655,685,695..DCB GRAY,TRIM1#	03/2021 - 12/2999	1
71434 - PIN, REAR SEAT CUSHION LEG, REAR
79939-26040	XZU605,655,685,695..DCB..20T	03/2021 - 12/2999	2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-37590B2	XZU605,655,685,695..DCB..20T ***,GRAY,TRIM1#	03/2021 - 12/2999	1
71460-37620B1	XZU605,655,685,695..DCB..20T **,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(DRP & ｾﾝﾀ& ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	1
71460-37620B1	XZU605,655,685,695..DCB..20T ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-37650B1	XZU605,655,685,695..DCB..20T ***,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ,GRAY,TRIM1#	03/2021 - 12/2999	1
71480-37590B2	XZU605,655,685,695..DCB..20T ***,GRAY,TRIM1#	03/2021 - 12/2999	1
71480-37660B1	XZU605,655,685,695..DCB..20T **,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(DRP & ｾﾝﾀ& ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	1
71480-37600B2	XZU605,655,685,695..DCB..20T **,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	1
71485B - COVER, REAR SEAT HINGE
71485-37012B1	XZU600,605,640,655,685,695..DCB GRAY,TRIM1#	03/2021 - 12/2999	2
71611 - PAD, REAR SEAT CUSHION
71611-25010	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-37060	XZU605,655,685,695..DCB..20T	03/2021 - 12/2999	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-37020	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-37070	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	1
71670-37080	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ &ﾘﾔ)	03/2021 - 12/2999	1
71670-37080	XZU600,605,640,655,685,695..DCB ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ)	03/2021 - 12/2999	1
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030P2	XZU600,605,640,655,685,695..DCB ﾛｯｸ無,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71930-28030P2	XZU600,605,640,655,685,695..DCB ﾛｯｸ付,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71930-28030P2	XZU605,655,685,695..DCB..20T ﾛｯｸ付,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾ塔^ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71931-28030P2	XZU605,655,685,695..DCB..20T ﾛｯｸ無,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾ塔^ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030P2	XZU600,605,640,655,685,695..DCB ﾛｯｸ無,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71930-28030P2	XZU600,605,640,655,685,695..DCB ﾛｯｸ付,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71930-28030P2	XZU605,655,685,695..DCB..20T ﾛｯｸ付,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾ塔^ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71931-28030P2	XZU605,655,685,695..DCB..20T ﾛｯｸ無,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾ塔^ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030P2	XZU600,605,640,655,685,695..DCB ﾛｯｸ無,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71930-28030P2	XZU600,605,640,655,685,695..DCB ﾛｯｸ付,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71930-28030P2	XZU605,655,685,695..DCB..20T ﾛｯｸ付,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾ塔^ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71931-28030P2	XZU605,655,685,695..DCB..20T ﾛｯｸ無,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾ塔^ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71931A - SUPPORT, REAR SEAT HEADREST
71931-28030P2	XZU600,605,640,655,685,695..DCB ﾛｯｸ無,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71930-28030P2	XZU600,605,640,655,685,695..DCB ﾛｯｸ付,ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71930-28030P2	XZU605,655,685,695..DCB..20T ﾛｯｸ付,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾ塔^ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71931-28030P2	XZU605,655,685,695..DCB..20T ﾛｯｸ無,ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾ塔^ & ﾘﾔ),GRAY,TRIM1#	03/2021 - 12/2999	2
71940A - HEADREST ASSY, REAR SEAT
71940-25011B1	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ &ﾘﾔ),MD.GRAY,TRIM1#	03/2021 - 12/2999	2
71940-25011C0	XZU605,655,685,695..DCB..20T ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),BLACK,TRIM1#	03/2021 - 12/2999	2
71940A - HEADREST ASSY, REAR SEAT
71940-25011B1	XZU605,655,685,695..DCB..20T ｼｰﾄ表皮−ﾋﾞﾆｰﾙﾚｻﾞｰ&ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ &ﾘﾔ),MD.GRAY,TRIM1#	03/2021 - 12/2999	2
71940-25011C0	XZU605,655,685,695..DCB..20T ﾌﾛﾝﾄﾍｯﾄﾞﾚｽﾄ−有り(*DRP & ｾﾝﾀ & ﾘﾔ),BLACK,TRIM1#	03/2021 - 12/2999	2
72050 - BELT ASSY, REAR SEAT HOOK
72050-37020B2	XZU600,605,640,655,685,695..DCB GRAY,TRIM1#	03/2021 - 12/2999	1
79191 - SPRING, NO.1 SEAT CUSHION, NO.1
90506-23053	XZU605,655,685,695..DCB..20T	03/2021 - 12/2999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	XZU605,655,685,695..DCB..20T	03/2021 - 12/2999	2
79951 - COVER, NO.1 SEAT CUSHION
79951-37010	XZU600,605,640,655,685,695..DCB	03/2021 - 12/2999	2
Common parts
90109-08137
90119-08B92
90149-60056
90206-12035
90523-06017
Linked diagrams
7152

XZU695-PKMMY (2021)

(2103- )

ILLUST NO. 1 OF 3(2103- )

ILLUST NO. 1 OF 3(2103- )

ILLUST NO. 2 OF 3(2103- )DCB

ILLUST NO. 3 OF 3(2103- )DCB

Part Price Details
