XZU695-PKMMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )DCB

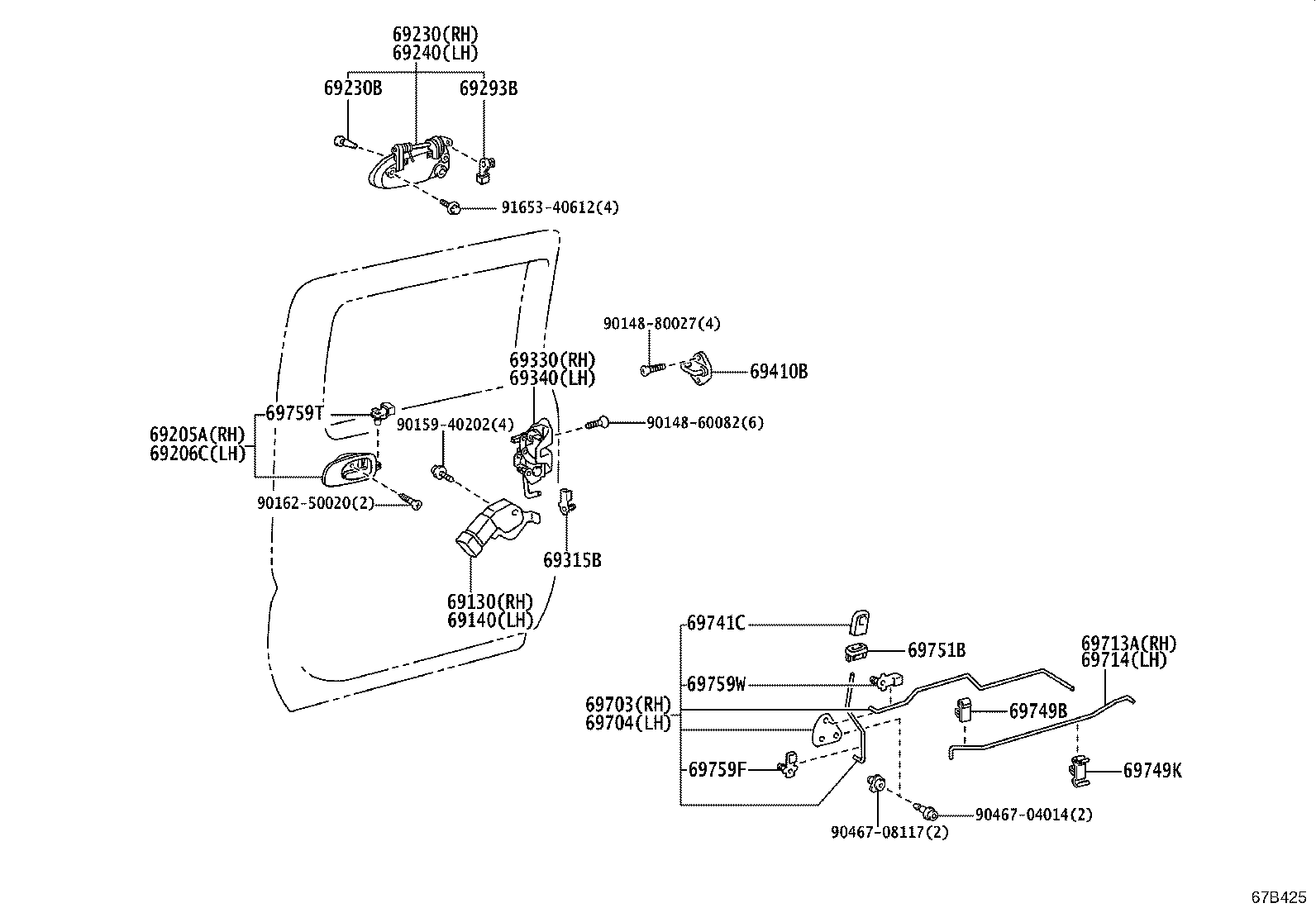

Click highlighted areas on diagram

diagram 69130 69140 69205A 69206C 69230 69230B 69240 69293B 69315B 69330 69340 69410B 69703 69704 69713A 69714 69741C 69749B 69749K 69751B 69759F 69759T 69759W 9014860082 9014880027 9015940202 9016250020 9046704014 9046708117 9165340612
Part # Description Qty Price
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-37090

XZU600,605,640,655,685,695..DCB

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-37090

XZU600,605,640,655,685,695..DCB

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-37020B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-37020B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-37010

XZU600,605,640,655,685,695..DCB

塗装不要

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-04015

XZU600,605,640,655,685,695..DCB

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-37010

XZU600,605,640,655,685,695..DCB

塗装不要

 1
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12050

XZU600,605,640,655,685,695..DCB

右側

 1
69293-12060

XZU600,605,640,655,685,695..DCB

左側

 1
69315B - RETAINER, REAR DOOR LOCK SOLENOID
69315-33030

XZU600,605,640,655,685,695..DCB

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-37020

XZU600,605,640,655,685,695..DCB

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-37050

XZU600,605,640,655,685,695..DCB

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110

XZU600,605,640,655,685,695..DCB

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69703-37010C0

XZU600,605,640,655,685,695..DCB

BLACK,TRIM1#

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69704-37010C0

XZU600,605,640,655,685,695..DCB

BLACK,TRIM1#

 1
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-37010

XZU600,605,640,655,685,695..DCB

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-37010

XZU600,605,640,655,685,695..DCB

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-12040C0

XZU600,605,640,655,685,695..DCB

BLACK,TRIM1#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

XZU600,605,640,655,685,695..DCB

 2
69749K - CLAMP, REAR DOOR LOCK
69749-12030

XZU600,605,640,655,685,695..DCB

 2
69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR)
69751-12020C0

XZU600,605,640,655,685,695..DCB

BLACK,TRIM1#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24090

XZU600,605,640,655,685,695..DCB

右側

 1
69759-06020

XZU600,605,640,655,685,695..DCB

左側

 1
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24070

XZU600,605,640,655,685,695..DCB

左側

 1
69759-14050

XZU600,605,640,655,685,695..DCB

右側

 1
69759W - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24040

XZU600,605,640,655,685,695..DCB

左側

 1
69759-24030

XZU600,605,640,655,685,695..DCB

右側

 1
Common parts
90148-60082
90148-80027
90159-40202
90162-50020
90467-04014
90467-08117
91653-40612
