XZU695-PKMMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )DCB

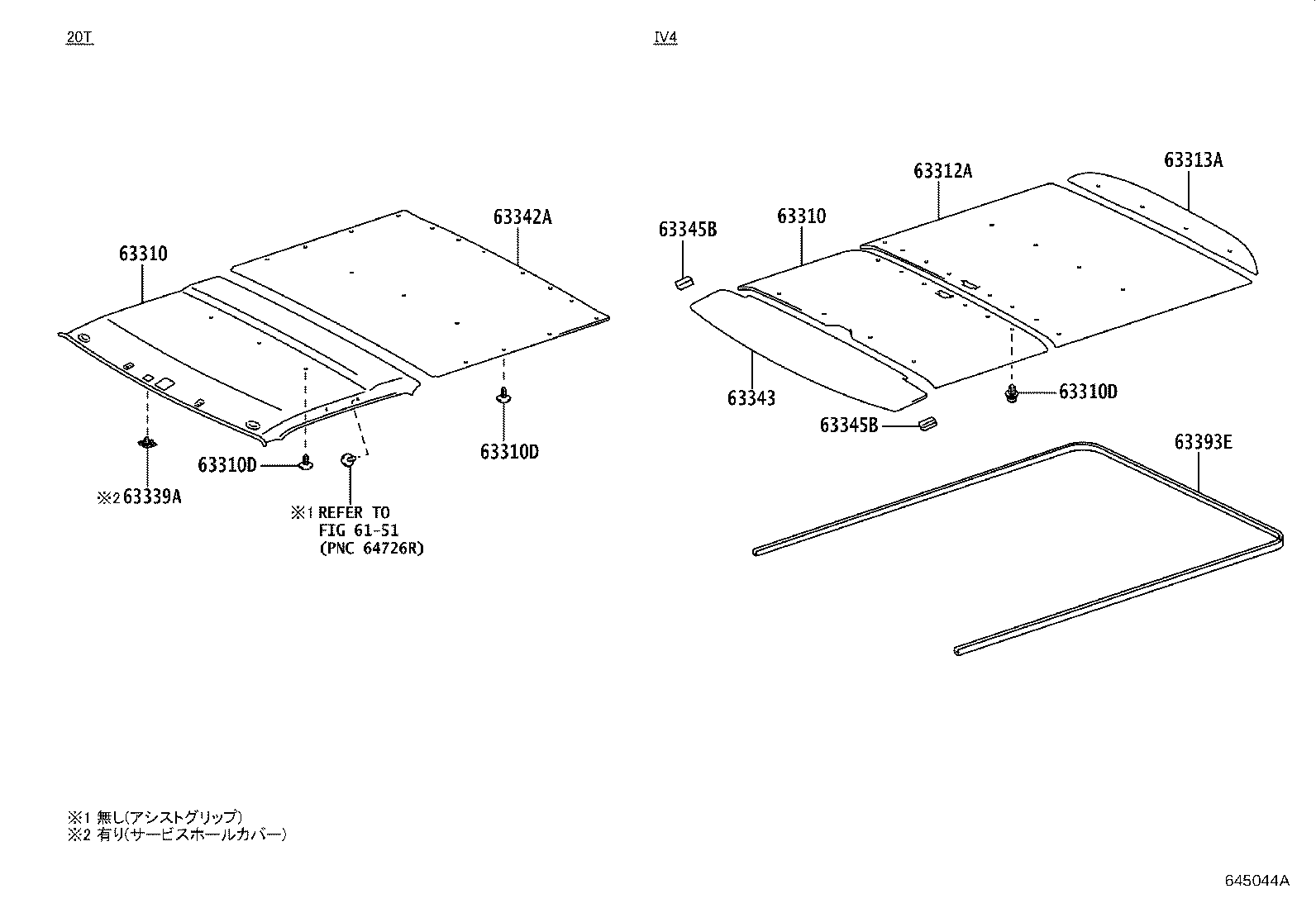

Click highlighted areas on diagram

diagram 6151 63310 63310 63310D 63310D 63310D 63312A 63313A 63339A 63342A 63343 63345B 63345B 63393E
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-37A30B0

XZU605,655,685,695..DCB..CBU

ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1#

 1
63310-37C10B0

XZU605,655,685,695..DCB..CBU

GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-37A30B0

XZU605,655,685,695..DCB..CBU

ﾊﾞｯｸﾓﾆﾀ−無し,GRAY,TRIM1#

 1
63310-37C10B0

XZU605,655,685,695..DCB..CBU

GRAY,TRIM1#

 1
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 20
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 20
63310D - CLIP, ROOF HEADLINING
90467-06048B9

XZU605,655,685,695..DCB..20T

MD.CHARCOAL,TRIM1#

 20
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-37010

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

ﾊﾞｯｸﾓﾆﾀ−無し

 1
63339-37010

XZC605,645,655,675,XZU605,640,645,65#,675,685,695..(T2,T3,T4,T5)..CBU

 1
63342A - SILENCER, ROOF, NO.2
63342-37101B1

XZU605,655,685,695..DCB..20T

GRAY,TRIM1#

 1
Linked diagrams
6151
