XZU695-PKMMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )DCB

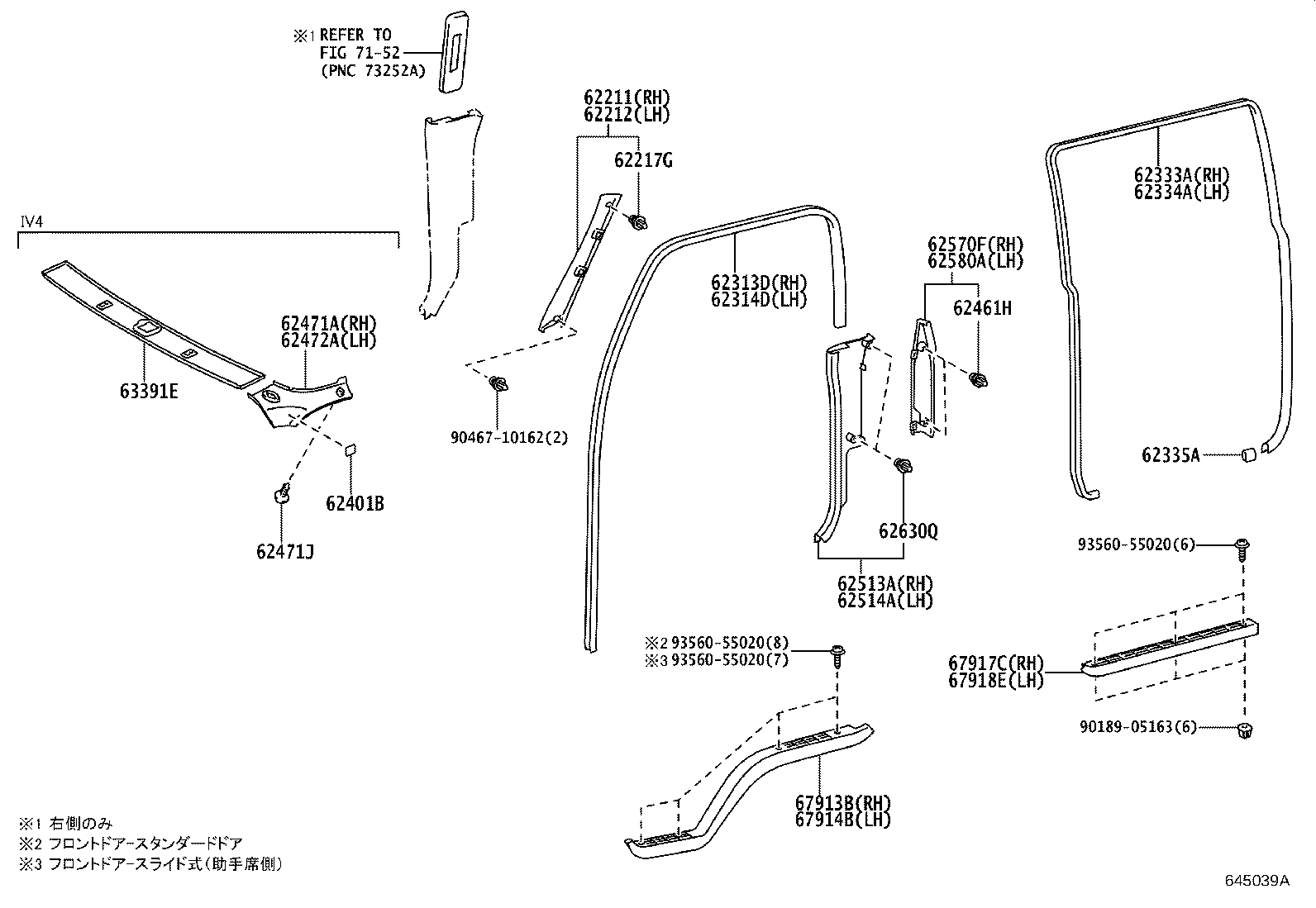

Click highlighted areas on diagram

diagram 62211 62212 62217G 62313D 62314D 62333A 62334A 62335A 62401B 62461H 62471A 62471J 62472A 62513A 62514A 62570F 62580A 62630Q 63391E 67913B 67914B 67917C 67918E 7152 9018905163 9046710162 9356055020 9356055020 9356055020
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-37010B0

XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T

GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-37010B0

XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T

GRAY,TRIM1#

 1
62217G - CLIP, FRONT PILLAR GARNISH
90467-10188

XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T

 2
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37080B0

XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-37040B0

XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T

GRAY,TRIM1#

 1
62333A - TRIM, REAR DOOR OPENING, RH
62333-25040B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
62334A - TRIM, REAR DOOR OPENING, LH
62333-25040B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
62335A - COVER, REAR DOOR OPENING TRIM
62335-37010B0

XZU600,605,640,655,685,695..DCB

MD.CHARCOAL,TRIM1#

 2
62461H - CLIP (FOR ROOF SIDE INNER GARNISH)
90467-10161

XZU600,605,640,655,685,695..DCB

 4
62513A - PANEL, QUARTER TRIM, LOWER RH
62530-37020B0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#

 1
62514A - PANEL, QUARTER TRIM, LOWER LH
62540-37020B0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#

 1
62570F - GARNISH ASSY, ROOF SIDE, INNER LOWER RH
62570-37020B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
62580A - GARNISH ASSY, ROOF SIDE, INNER LOWER LH
62580-37020B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
62630Q - CLIP (FOR QUARTER TRIM)
90467-10161

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 4
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-37010B1

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-37010B1

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

GRAY,TRIM1#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67917-37021B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
67918E - PLATE, REAR DOOR SCUFF, LH
67918-37011B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
Common parts
90189-05163
90467-10162
93560-55020
Linked diagrams
7152
