XZU695-PKMMY (2021)
Toyota Dyna
ILLUST NO. 1 OF 2(2103- )DCB
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51793C - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-37040 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 51795B - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-37020 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37041 |
XZU600..40T;XZU600,605,655,685,695..DCB;XZU602,640,642,650,652..IV4,IV6 |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-37070 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61035C - RETAINER SUB-ASSY, PILLAR LOWER HINGE, RH | ||||
| 61035-37040 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37031 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37050 |
XZU605,655,685,695..DCB..20T;XZU600,602,640,642,650,652..(35T,40T)..IV6 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-37052 |
XZU605,655,685,695..DCB..20T |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-37010 |
XZU600..CBU,IV6;XZU600..(DM3,DM5)..IV3;XZU655,685,695..DCB..20T;XZU640,642,650,652,685..IV6;XZC60#,630,675,XZU602,605,630,675..CBU,IV3,IV6 |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-37020 |
XZU605,655,685,695..DCB..20T |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61308B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, RH | ||||
| 61309-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-37091 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61321 - REINFORCEMENT, CENTER BODY PILLAR, UPPER RH | ||||
| 61321-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61335D - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-37031 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-37150 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61343-37140 |
XZU605,655,685,695..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
4 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-37030 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61525A - RETAINER, SEPARATOR BAR BRACKET, RH | ||||
| 61525-37020 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61768A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61768-37050 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 64123-37141 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH | ||||
| 61611-37061 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 64165C - COVER, BACK CORNER, INNER REAR | ||||
| 64165-37020 |
XZU600,605,640,655,685,695..DCB |
2 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 90467-06048B9 |
XZU605,655,685,695..DCB..20T ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2,後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-06048B9 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 MD.CHARCOAL,TRIM1# |
4 | ||
| Common parts | ||||
| 61315-22020 | ||||
| 90148-80044 | ||||
| 90179-04031 | ||||
| 90179-06151 | ||||
| 90467-05007 | ||||
| 90541-09031 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-A0814 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5854 | ||||
| 7552 | ||||

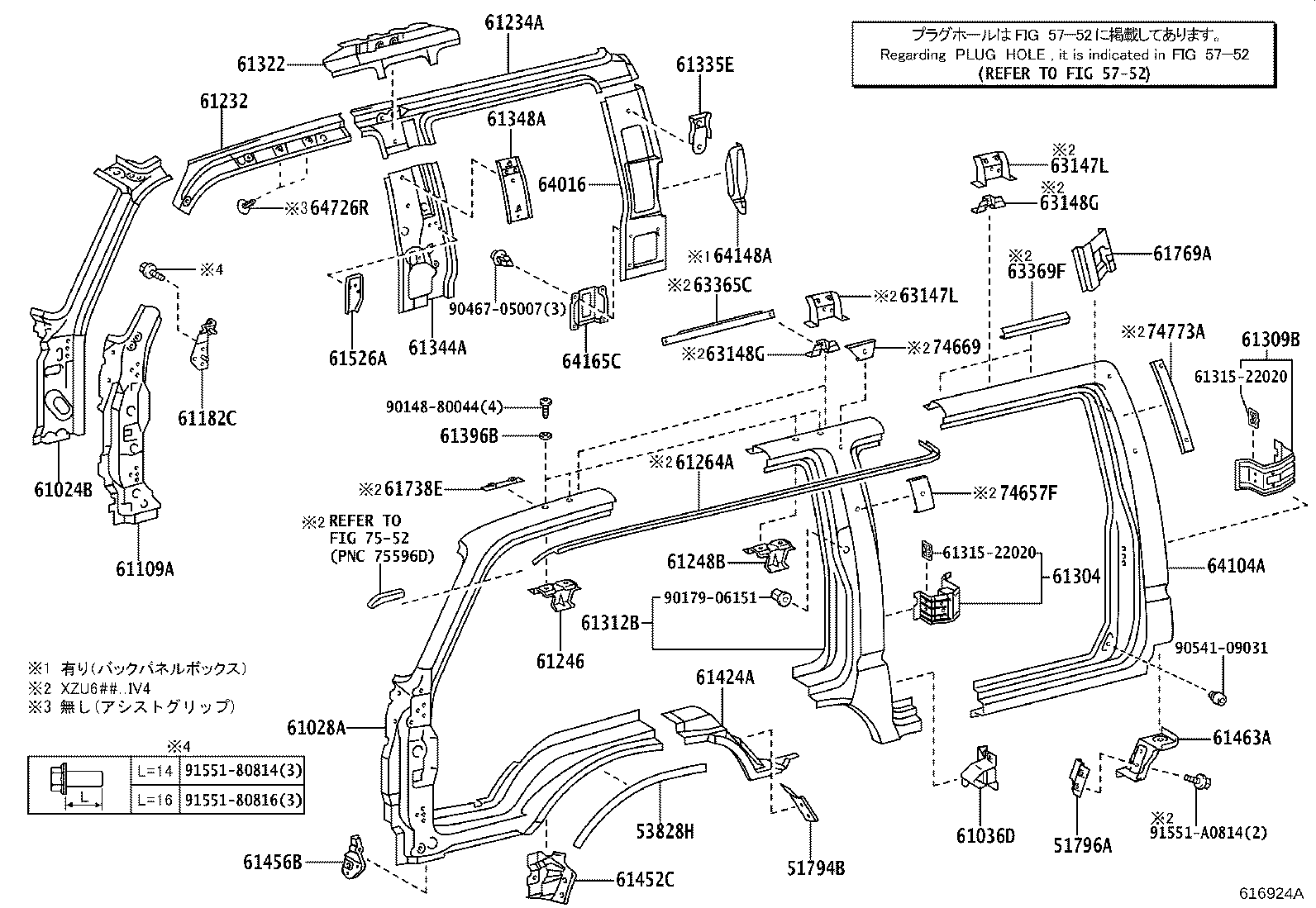

ILLUST NO. 2 OF 2(2103- )DCB
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51794B - BRACKET, SIDE STEP, NO.1 LH | ||||
| 51794-37030 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 51796A - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51796-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-37091 |
XZU600..40T;XZU600,605,655,685,695..DCB;XZU602,640,642,650,652..IV4,IV6 |
1 | ||
| 61036D - RETAINER SUB-ASSY, PILLAR LOWER HINGE, LH | ||||
| 61036-37040 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-37011 |
XZU602,640..IV4,IV6;XZU600,605,655,685,695..DCB;XZU600,642,650,652..35T,40T |
1 | ||
| 61182C - BRACKET, INSTRUMENT SIDE, LH | ||||
| 61182-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37050 |
XZU605,655,685,695..DCB..20T;XZU600,602,640,642,650,652..(35T,40T)..IV6 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-37052 |
XZU605,655,685,695..DCB..20T |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61245-37010 |
XZU600..CBU,IV6;XZU600..(DM3,DM5)..IV3;XZU655,685,695..DCB..20T;XZU640,642,650,652,685..IV6;XZC60#,630,675,XZU602,605,630,675..CBU,IV3,IV6 |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61247-37020 |
XZU605,655,685,695..DCB..20T |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61309B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, LH | ||||
| 61309-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-37081 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61322 - REINFORCEMENT, CENTER BODY PILLAR, UPPER LH | ||||
| 61322-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61335E - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-37031 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-25050 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61348A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH | ||||
| 61348-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 |
4 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-37030 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61452C - PLATE, STEP, LOWER LH | ||||
| 61452-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61456B - RETAINER, FRONT STEP, LH | ||||
| 61456-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695 |
1 | ||
| 61463A - PANEL, ROCKER, INNER REAR LH | ||||
| 61463-37010 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61526A - RETAINER, SEPARATOR BAR BRACKET, LH | ||||
| 61526-37020 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 61769A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61769-37050 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 64124-37161 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH | ||||
| 61612-37051 |
XZU600,605,640,655,685,695..DCB |
1 | ||
| 64165C - COVER, BACK CORNER, INNER REAR | ||||
| 64165-37020 |
XZU600,605,640,655,685,695..DCB |
2 | ||
| 64726R - CLIP, ROOF SIDE PANEL | ||||
| 90467-06048B9 |
XZU605,655,685,695..DCB..20T ｱｼｽﾄｸﾞﾘｯﾌﾟ−有り(運転席:1,助手席:2,後席:2),MD.CHARCOAL,TRIM1# |
2 | ||
| 90467-06048B9 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..CBU,IV3,IV5,IV6,IV7 MD.CHARCOAL,TRIM1# |
4 | ||
| Common parts | ||||
| 61315-22020 | ||||
| 90148-80044 | ||||
| 90179-06151 | ||||
| 90467-05007 | ||||
| 90541-09031 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 91551-A0814 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 7552 | ||||
