XZU695-PKMMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )DCB

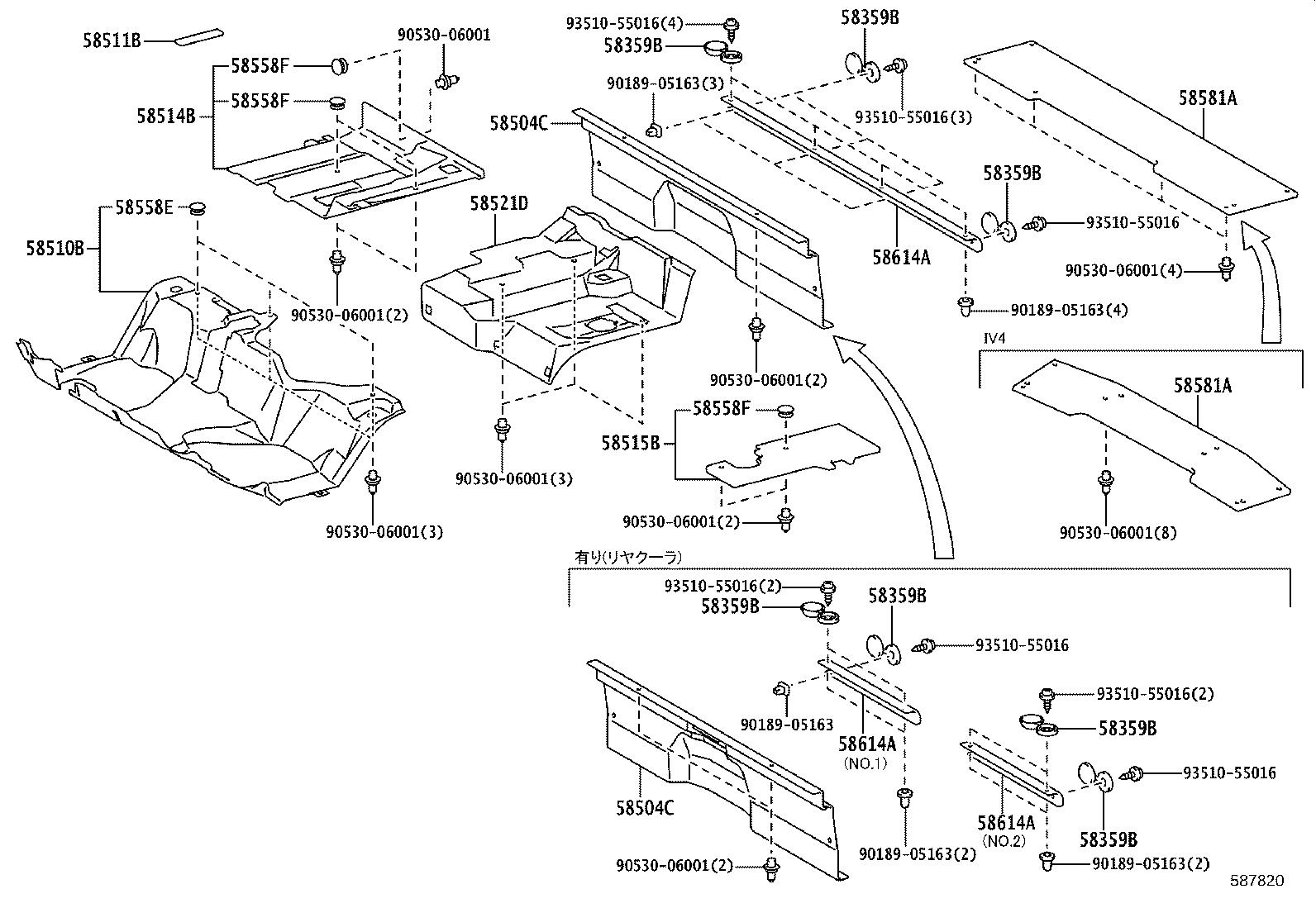

Click highlighted areas on diagram

diagram 58359B 58359B 58359B 58359B 58359B 58359B 58359B 58504C 58504C 58510B 58511B 58514B 58515B 58521D 58558E 58558F 58558F 58558F 58581A 58581A 58614A 58614A 58614A 9018905163 9018905163 9018905163 9018905163 9018905163 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9351055016 9351055016 9351055016 9351055016 9351055016 9351055016 9351055016
Part # Description Qty Price
58359B - PROTECTOR, FLOOR TAPPING
58359-37010

XZU600,605,640,655,685,695..DCB

 8
58359B - PROTECTOR, FLOOR TAPPING
58359-37010

XZU600,605,640,655,685,695..DCB

 8
58359B - PROTECTOR, FLOOR TAPPING
58359-37010

XZU600,605,640,655,685,695..DCB

 8
58359B - PROTECTOR, FLOOR TAPPING
58359-37010

XZU600,605,640,655,685,695..DCB

 8
58359B - PROTECTOR, FLOOR TAPPING
58359-37010

XZU600,605,640,655,685,695..DCB

 8
58359B - PROTECTOR, FLOOR TAPPING
58359-37010

XZU600,605,640,655,685,695..DCB

 8
58359B - PROTECTOR, FLOOR TAPPING
58359-37010

XZU600,605,640,655,685,695..DCB

 8
58504C - MAT SUB-ASSY, HEADER
58504-37301B1

XZU605,655,685,695..DCB..20T

GRAY,TRIM1#

 1
58504C - MAT SUB-ASSY, HEADER
58504-37301B1

XZU605,655,685,695..DCB..20T

GRAY,TRIM1#

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-37M60B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
58511B - MAT, FLOOR, FRONT SIDE
58515-37080C0

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

BLACK,TRIM1#

 1
58514B - MAT, FLOOR, REAR RH
58514-37140B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
58515B - MAT, FLOOR, REAR LH
58515-37100B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
58521D - MAT, ENGINE SERVICE HOLE COVER
58521-37310B1

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 1
58558E - FASTENER, PILE
90530-04005S6

XZC675,XZU675,685,695;XZU600,605,640,655..DCB

GRAY,TRIM1#

 3
58558F - FASTENER, PILE, UPR
90530-04005S6

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 4
58558F - FASTENER, PILE, UPR
90530-04005S6

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 4
58558F - FASTENER, PILE, UPR
90530-04005S6

XZU600,605,640,655,685,695..DCB

GRAY,TRIM1#

 4
58581A - MAT, REAR FLOOR
58581-37520B1

XZU605,655,685,695..DCB..20T

寒冷地仕様−有り&ﾘﾔﾋｰﾀ−有り,GRAY,TRIM1#

 1
58581-37540B1

XZU605,655,685,695..DCB..20T

GRAY,TRIM1#

 1
58581A - MAT, REAR FLOOR
58581-37520B1

XZU605,655,685,695..DCB..20T

寒冷地仕様−有り&ﾘﾔﾋｰﾀ−有り,GRAY,TRIM1#

 1
58581-37540B1

XZU605,655,685,695..DCB..20T

GRAY,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-25021B1

XZU605,655,685,695..DCB..20T

GRAY,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-25021B1

XZU605,655,685,695..DCB..20T

GRAY,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-25021B1

XZU605,655,685,695..DCB..20T

GRAY,TRIM1#

 1
Common parts
90189-05163
90530-06001
93510-55016
