XZU695-PKMMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )DCB..20T

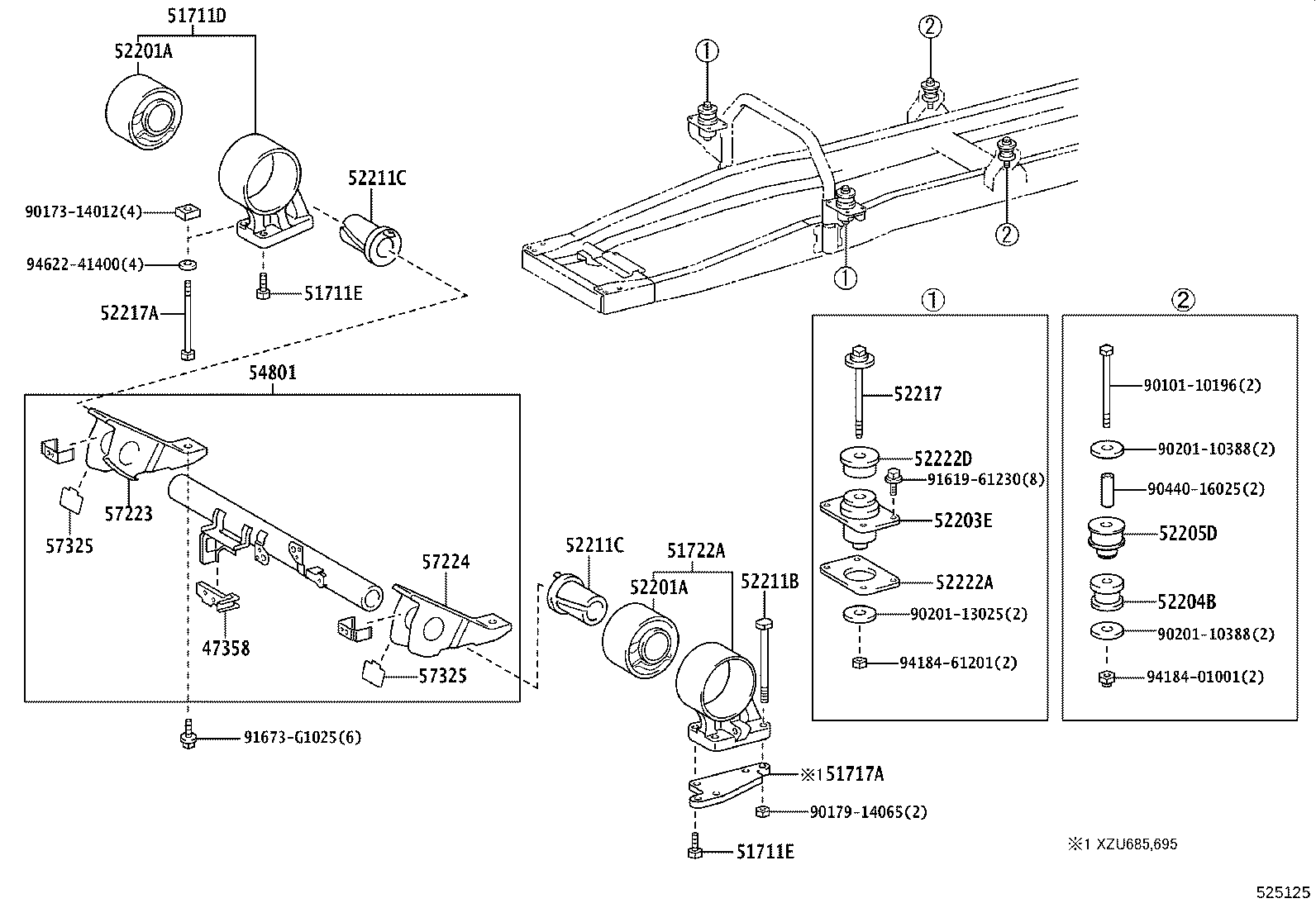

Click highlighted areas on diagram

diagram 47358 51711D 51711E 51711E 51717A 51722A 52201A 52201A 52203E 52204B 52205D 52211B 52211C 52211C 52217 52217A 52222A 52222D 54801 57223 57224 57325 57325 9010110196 9017314012 9017914065 9020110388 9020110388 9020113025 9044016025 9161961230 91673G1025 9418401001 9418461201 9462241400
Part # Description Qty Price
47358 - TUBE, BOOSTER TO RESERVOIR, NO.2
47358-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
51711D - BRACKET, CAB FRONT MOUNTING
51701-37110

XZU600,640,685,695..DCB

 1
51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET)
90101-14041

XZU600,640,685,695..DCB

 2
51711E - BOLT, HEXAGON(FOR CAB MOUNTING BARACKET)
90101-14041

XZU600,640,685,695..DCB

 2
51717A - PLATE, BODY SUPPORT BRACKET
51717-37120

XZU600,640,685,695..DCB

 2
51722A - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
51702-37350

XZU600,640,685,695..DCB

 1
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37050

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING
52201-37050

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-37050

XZU605,655,685,695..DCB..20T

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-36011

XZU605,655,685,695..DCB..20T

 2
52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52203-36040

XZU605,655,685,695..DCB..20T

 2
52211B - BOLT(FOR BODY MOUNTING NO.1 CUSHION)
90109-14014

XZU600,640,685,695..DCB

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
52217 - BOLT, BODY MOUNTING
52217-37030

XZU605,655,685,695..DCB..20T

 2
52217A - BOLT, BODY MOUNTING
90101-14080

XZU600,640,685,695..DCB

 2
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-37020

XZU605,655,685,695..DCB..20T

 2
52222D - SPACER, CAB REAR MOUNTING, UPPER
52222-36030

XZU605,655,685,695..DCB..20T

 2
54801 - TUBE SUB-ASSY, TILT CAB, NO.1
54801-37221

XZU600,605,640,655,685,695..DCB

 1
57223 - BRACKET, FRONT MOUNTING, RH
57223-37011

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
57224 - BRACKET, FRONT MOUNTING, LH
57224-37011

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 1
57325 - REINFORCEMENT, FRONT MOUNTING
57325-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
57325 - REINFORCEMENT, FRONT MOUNTING
57325-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

 2
Common parts
90101-10196
90173-14012
90179-14065
90201-10388
90201-13025
90440-16025
91619-61230
91673-G1025
94184-01001
94184-61201
94622-41400
