XZU695-PKMMY (2021)

Toyota Dyna

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

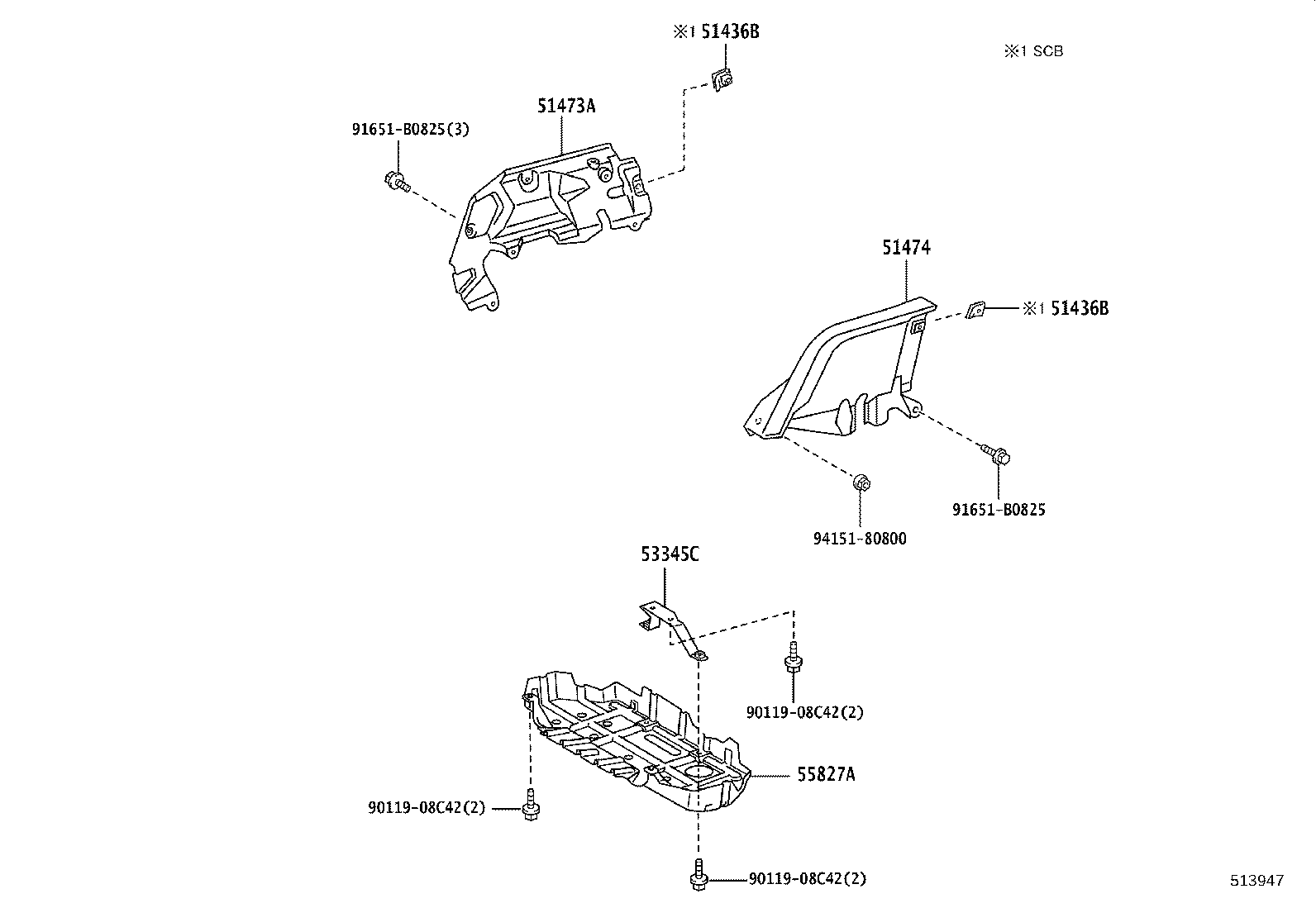

ILLUST NO. 1 OF 2(2103- )XZC675,XZU675,685,695

Click highlighted areas on diagram

diagram 51436B 51436B 51473A 51474 53345C 55827A 9011908C42 9011908C42 9011908C42 91651B0825 91651B0825 9415180800
Part # Description Qty Price
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37211

XZU685,695..DCB

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37091

XZC675,XZU675,685,695

 1
53345C - BRACKET, AIR DEFLECTOR, NO.2
53304-37010

XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..CBU,IV3,IV5,IV6,IV7

 1
55827A - DUCT, VENTILATOR AIR GUIDE
55827-37090

XZU650..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..CBU,IV3,IV5,IV6,IV7

 1
Common parts
90119-08C42
91651-B0825
94151-80800

ILLUST NO. 2 OF 2(2103- )

Click highlighted areas on diagram

diagram 51094 51961C 51962 51963B 51964B 9017814007 9017914007 9167201445 9167201445 9167201460 9167201460
Part # Description Qty Price
51961C - HOOK, FRONT
51961-37110

XZU600,640,685,695..DCB

牽引ﾌｯｸ−ﾌﾛﾝﾄ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51961-37110

XZU600,640,685,695..DCB

牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51962 - HOOK, NO.2
51961-36040

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695

牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

XZU650,685..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,695..CBU,IV3,IV5,IV6,IV7

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

XZU650,685..20T,30T,35T;XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,695..CBU,IV3,IV5,IV6,IV7

 1
Common parts
90178-14007
90179-14007
91672-01445
91672-01460
